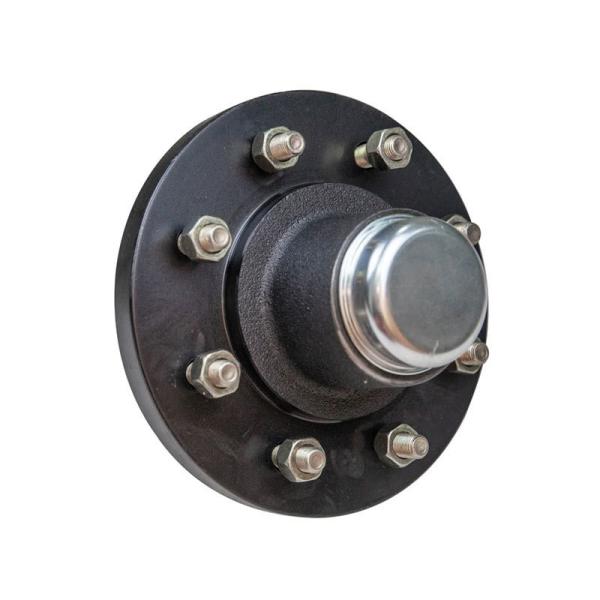

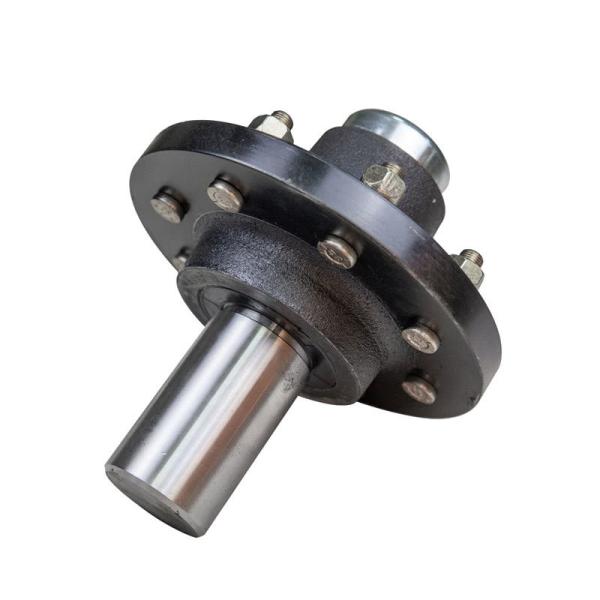

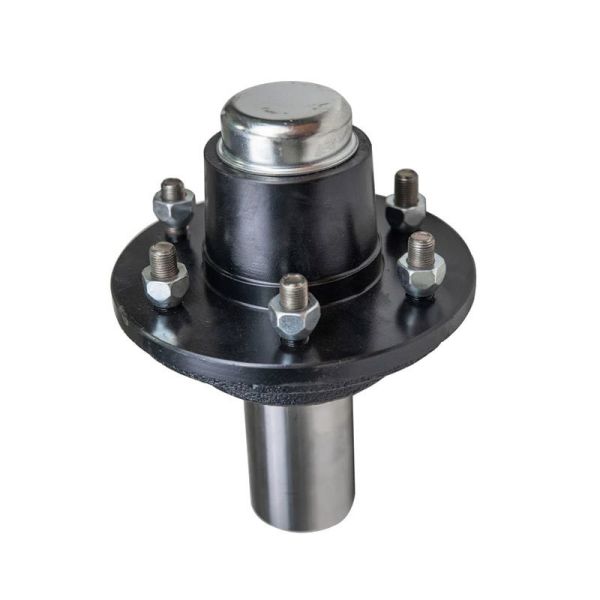

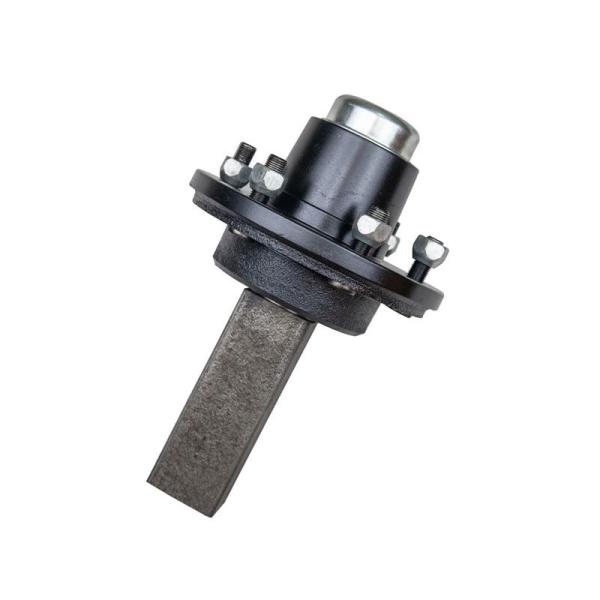

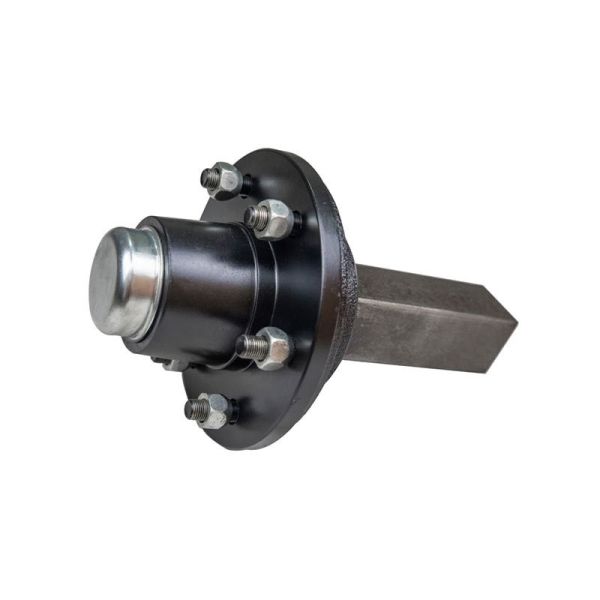

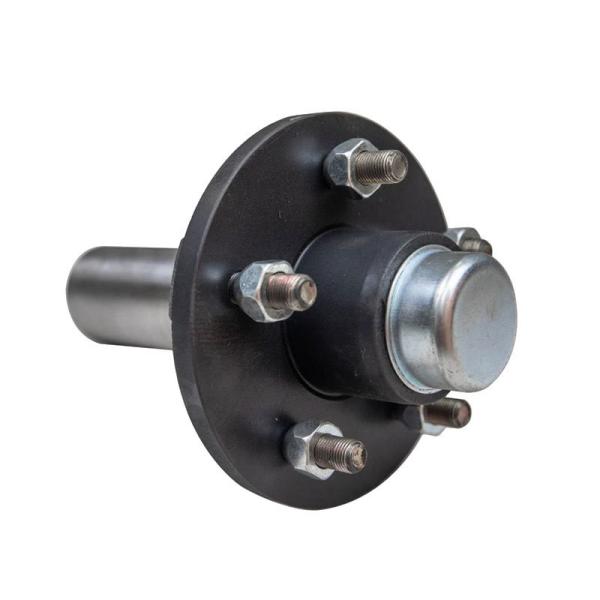

Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Specifications
Use :
Trailer Parts
Parts :
Trailer Axles
Max Payload :
3500 lbs
Place of Origin :
Henan, China
Brand Name :
XME
Product Name :
Trailer Stub Axle Assembly
Packaging Details :
plywood case + Steel pallet
Suitable for seaway transportation
Port :
Qingdao/shanghai
Supply Ability :
50000 Piece/Pieces per Month
MOQ :
100 pieces
Price :
$7.00 - $12.00/pieces
Delivery Time :
within 30 days
Payment Terms :
T/T, L/C, D/P D/A, Cash
Description
Specifications

4 Bolt on 4" Trailer Hub - L44649 Bearings

Application: 2,000-lb trailer axles .Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity
1000 lbs
Bolt Pattern
4 on 4"
Wheel Studs
1/2" diameter x 1-5/16" long
Race(included)
Inner race: L44610/ Outer race: L44610
Bearing
Inner bearing: L44649 (1.063" inner diameter) /Outer bearing: L44649 (1.063" inner diameter)

4 Bolt on 4" Trailer Hub - L44643 Bearings

Application: 2,000-lb trailer axles Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity
1000 lbs
Bolt Pattern
4 on 4"
Wheel Studs
1/2" diameter x 1-5/16" long
Race(included)
Inner race: L44610 /Outer race: L44610
Bearing
 Inner bearing: L44643 (1" inner diameter) /Outer bearing: L44643 (1" inner diameter)

5 Bolt on 4.5"  Trailer Hub - L44643 Bearings

Application:2,000-lb axles. May also be used on 2500-lb axles with 1" spindle
Bolt Pattern(included)
5 on 4-1/2
Wheel Studs
1/2" diameter
Weight Capacity
1,250 lbs
Inner/Ourter Race (included)
L44610 /L44610
Bearings
 Inner bearing: L44643 (1.000" inner diameter) ,Outer bearing: L44643 (1.000" inner diameter)

5 Bolt on 4.5" Trailer Hub - L68149 & L44649 Bearings

Application:3,500-lb trailer axles with #84 spindles .Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity
1750 lbs
Bolt Pattern
5 ON 4-1/2"
Wheel Studs
1/2" diameter x 1-5/16" long
Race(included)
 Inner race: L68111 / Outer race: L44610
Bearings
Inner bearing: L68149 (1.378" inner diameter) Outer bearing: L44649 (1.063" inner diameter)
Hareware Specifications
    We can provide the following trailer hub assembly components: trailer spindle(complete or stub axle), inner bearing and seat ring, outer bearing and seat ring, including grease seal ring, grease cover and lug nut.If you need these accessories, please contact our staff.
    Trailer short shaft size needs to be customized according to customer requirements
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
    We can provide the trailer hub kits, or we can provide you with the assembled trailer axle
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
About Us

XINLONG MACHINERY&EQUIPMENT CO.,LTD

     Xinlong Machinery is a professional trailer parts manufacturer with more than 20 years of experience in the manufacture of trailer parts. We are mainly engaged in the customization of trailer components, especially trailer axles, trailer brake drums, trailer hubs, and trailer equalizers. With modern production equipment and experienced technical team, we ensure that only the highest quality products can reach customers.
Trailer Parts Light Utility Trailer Stub Axle Assembly with Max Payload up to 3500 lbs
Packing & Delivery

    Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.


Packing Details  :plywood case + Steel pallet

                               We can also customize the packing method according to customers' needs.

                               Suitable for seaway transportation
