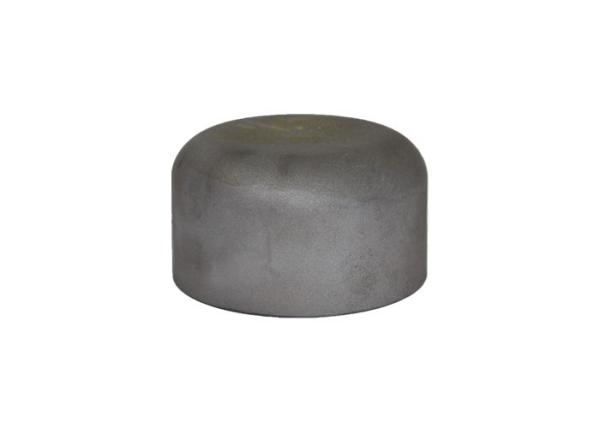

Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings
Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings
Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings
Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings
Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings
Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings
Specifications
Brand Name :
ZZ
Model Number :
ASTM A234 WP11
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
ASTM A234 WP11
Connection :
Buttweld Beveled End
Shape :
Round
Size :
3"
Thickness :
Sch40
Form :
Seamless
Description

ASTM A234 WP11 Steel Pipe Cap BE 3 Inch Sch40 SMLE Buttweld Fittings ASME B16.9

Sch40 Buttweld Cap

One of the leading pipe cap manufacturer Zizi carries an extensive inventory of Sch 40 A234 WP11 seamless cap in a large dimension ranges. Sch 40 buttweld cap is one of the most commonly used types. And we also provide Sch 80 pipe cap and Sch 10S stainless steel cap in different sizes, they all commonly used in industry.

Seamless ASME B16.9 Cap Dimensions

Standard ASME/ANSI B16.9
Thickness Sch 10S, 20S, STD, 40S, 80S, 100, 120, 140, 160, XXS
End Type BE and PE
Stainless Steel ASTM A403 WP304/304L, WP304H, WP316/316L, WP310, WP317, WP321, WP347
Duplex Steel ASTM A815 UNS S 31803, S 32205, S 32550, S 32750, S 32760
Carbon Steel ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70
Low Temp Carbon Steel ASTM A420 WPL3, WPL6, WPL9
Alloy Steel ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

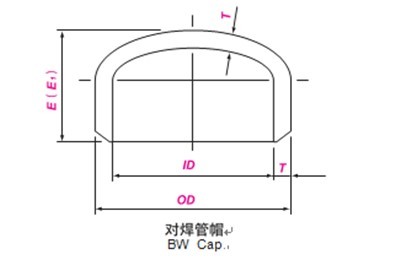

3” Buttweld Cap Specification

Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings

Nominal Size: DN80, NPS 3”

Outside Diameter at Bevel (OD): 88.9

Length (E, E1): 51, 64

Limiting Wall Thickness for E: 7.62

Material: ASTM A234 WP11

Black Primer is offered for alloy steel A234 WP11 Caps

Steel Pipe Cap Weight in Kg

This pipe cap weight chart is available for all kind of material buttweld pipe caps weigh calculation.

Round Shape Steel Pipe Caps BE 3 Inch Sch40 Thickness SMLE Butt Weld Fittings

3" Schedule 40 Steel Pipe Cap

Inspection

  • Surface inspection, including the marking and appearance.
  • Measure the size. Include diameter, thickness, height.
  • Third Party Inspection: ABS, BV, SGS, LR, DNV.

​Certificate

  • CE, ISO, TEST REPORT

Shipment

  • LCL, 20GP, 40GP, Air, Courier

Document

  • CI, PL, CO, BL, MTC

A234 WP11 Cap

ASTM A234 WP11 Chemical Composition

C Mn P S Si Cr Mo
0.05-0.15 0.3-0.6 0.03 0.03 0.5-1 1-1.5 0.44-0.65

ASTM A234 WP11 Mechanical Properties

Tensile Strength Yield Strength Elongation
415-585 (Mpa) 205 (Mpa) 30 (%)

Features Seamless Pipe Cap

  • Seamless pipe cap doesn’t have any welded joint at the surface.
  • The marking will include SMLE or Seamless based on the available space.
  • Bear higher pressure and suit for high pressure and medium applications.
