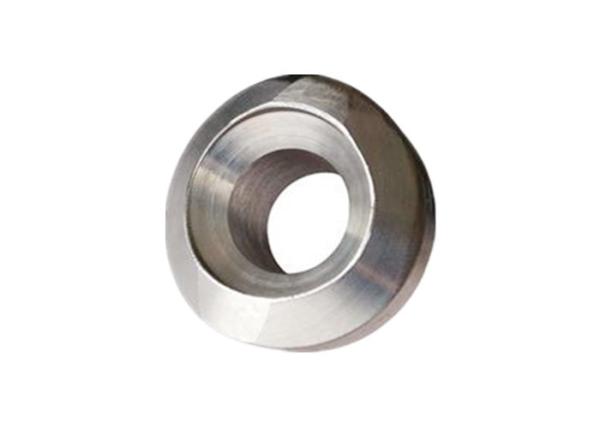

Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard
Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard
Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard
Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard
Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard
Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel 316L
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 F316L
Connection :
Butt Weld Olet
Technics :
Forged
Size :
8" x 2"
Pressure :
STD/Sch 40
Standard :
MSS SP-97
Description

Stainless Steel Weldolet 8 x 2 Inch STD SS316L Olet Pipe Fittings MSS SP 97

Olet Pipe Fittings

High quality branch outlet fittings supplier Zizi manufactures and exports high quality stainless steel weldolts in customized sizes for all over the world.

Weldolet is used to provide a smaller branch for the run pipe through a butt weld connection. If conditions permit (such as good welding conditions), it may be your first choice.

SS316 Weldolet Dimensions

Run Pipes Diameter DN8– 300 / NPS1/4 – 36
Branch Diameter DN6-600/ NPS 1/8-24
Pressure Rating STD/Sch 40, XS/ Sch80, Sch 160
Standard MSS-SP-97, ASME B16.11
Surface Anti-rust Oil, Galvanized

Available Materials for Weldolet

Stainless Steel

ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321

Caron Steel

ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70

Alloy Steel

ASTM A182 F1, F5, F9, F11, F12, F22, F91

Duplex Steel

ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard

ASTM A182 F316L Properties

Chemical Composition

C Mn P S Si Ni Cr Mo
0.03 2 0.045 0.03 1 10-14 16-18 2-3

Mechanical Properties

Tensile Strength Yield Strength Elongation
485 (Mpa) 170 (Mpa) 35 (%)

Heat Treatment

Pickling and Solution for forged stainless steel fittings.

Anti-rust oil for all forged fittings before shipping.

Features of SS316 Pipe Fittings

Excellent Corrosion Resistance

High Strength

Fine Structure

Beautiful Appearance

High Cost

MSS SP 97 Weldolet Weight Chart in Kg

Forged Stainless Steel Weldolet 8 X 2 Inch STD SS316L MSS SP 97 Standard

Inspection of Stainless Steel 304 Pipe Fittings

  • Check the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Including size, material grade, pressure, heat no.
  • Measure the size. Make sure they are in tolerance.
  • Test the chemical compostion of SS 316L.
  • Third Party Inspection: BV, SGS, LR, DNV, ABS and stamp mill test certificate.

Why Choose Us Forged Fittings

Complete products

Various Materials

Customized Sizes

No Limit for Quantity

Fast Delivery

ISO Certified
