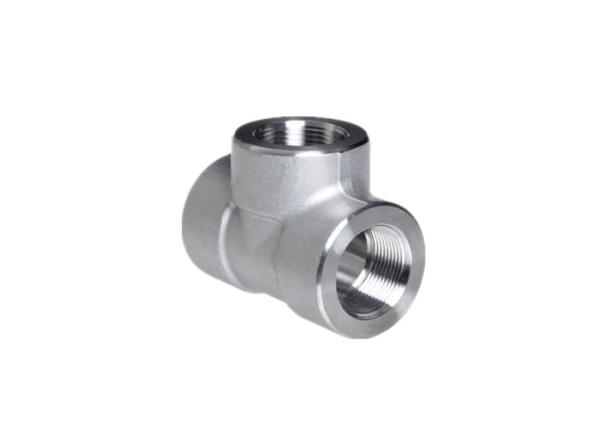

BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure
BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure
BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure
BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure
BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure
BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure
Specifications
Brand Name :
ZZ
Model Number :
Stainless Steel
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
ASTM A182 F316
Thread :
BSPPXBSPT
Form :
Threaded Reducin Tee
Size :
3"x1"
Pressure :
Class 3000
Standard :
ASME B16.11, BS3799
Description

Threaded Tee Fittings

ZIZI in highly acclaimed manufacturer of stainless steel threaded reducing tee ( unequal tee). Stainless steel pipe tee is very much resistant to chemical corrosion and oxidation, and has some high stress-rupture effectiveness and low creep rate under high stresses at temperatures after suitable heat treatment. Forged tee is either used to combine or split a fluid flow.

Threaded Pipe Fittings Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 2000, 3000, 6000
Standard ASME B16.11 and BS3799
Thread NPT, BSPP, BSPT, RC

Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Threaded Tee Dimensions

Nominal Diameter Center to End Outside Diameter Wall Thickness Length of Thread
A D C min
DN NPS 2000LB 3000LB 6000LB 2000LB 3000LB 6000LB 2000LB 3000LB 6000LB NPT RC
Sch80 Sch160 XXS Sch80 Sch160 XXS Sch80 Sch160 XXS
6 1/8 21 21 25 22 22 25 3 3 6.5 6.5 6.5
8 1/4 21 25 29 22 25 33 3 3.5 6.5 8 10
10 3/8 25 29 33 25 33 38 3 3.5 7 9 10.5
15 1/2 29 33 38 33 38 46 3 4 8 11 13.5
20 3/4 33 38 44 38 46 56 3 4.5 8.5 12.5 14
25 1 38 44 51 46 56 62 3.5 5 10 14.5 17.5
32 1 1/4 44 51 60 56 62 75 4 5.5 10.5 17 18
40 1 1/2 51 60 64 62 75 84 4 5.5 11 18 18.5
50 2 60 64 83 75 84 102 4.5 7 12 19 19
65 2 1/2 76 83 95 92 102 121 5.5 7.5 15.5 23.5 29
80 3 86 96 106 110 121 146 6 9 16.5 26 30.5
100 4 106 114 114 146 152 152 6.5 11 18.5 27.5 33

Threaded Equal Tee Weight Chart

Threaded Pipe Tee Weight
Nominal Size Approx.Weight/kg
DN NPS 2000 3000 6000
6 1/8 0.13 0.22 0.35
8 1/4 0.13 0.22 0.57
10 3/8 0.16 0.4 0.66
15 1/2 0.35 0.58 1.15
20 3/4 0.45 0.9 1.8
25 1 0.66 1.46 2.25
32 1 1/4 1 1.9 3.95
40 1 1/2 1.4 3.4 4.87
50 2 2.2 3.8 8.89
65 2 1/2 4.2 7.2 12.8
80 3 6.15 10.7 21.8
100 4 14.7 17.9 29.5

ASTM A182 F316 Material

Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

BSP Reducing Tee Manufacturer

Certification

BSP Threaded Steel Pipe Tee 3000LB SS316 Stainless Steel Material Class 3000 Pressure

Package

  • Anti-rust oil first.
  • Wrapped with plastic foam.
  • Packed into cartons and wooden cases.
  • Tagged labers on the outside for easy indentification.

Advantages

  • Easy Installation
  • Leak proof
  • Cost Effective
  • Durable
