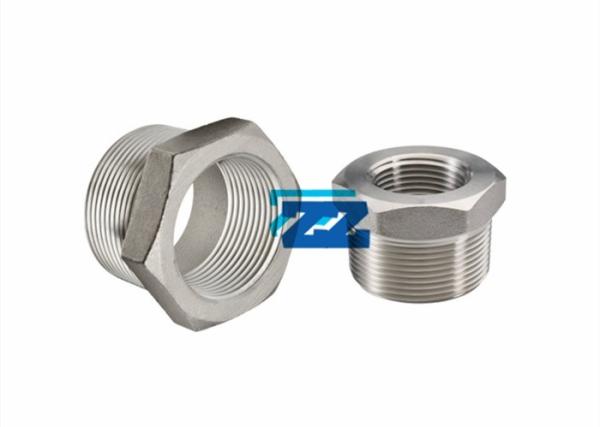

Hex Head Bushing NPT 1 Forged Pipe Fittings ASTM A182 F316 BS3799 Standard
Hex Head Bushing NPT 1 Forged Pipe Fittings ASTM A182 F316 BS3799 Standard
Specifications
Brand Name :
ZZ
Model Number :
SS316
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
100000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Standard :
ASME B16.11, BS3799
Connection :
Male Thread
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Material :
Stainless Steel,Carbon Steel,Alloy Steel, Duplex Steel
Thread :
BSPP BSPT NPT,as request
Head code :
Hexagon,round,Square
Description

Hex Pipe Fittings

Top manufacturer and supplier of stainless steel forged pipe fittings Zizi export NPT Hex Head Bushing 1" ASTM A182 F316 BS3799 for Malaysia.

Manufacture processing of threaded pipe fittings are under 100% quality control, BS3799 Hex head bushings are available in various dimensions and specificaton.

Hex Head Bushing Dimensions

Size 1/4" to 4" / DN8 to DN100
Standard ASME B16.11 / BS3799
Thread Type NPT, BSPP, BSPT, PF, PT
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Carbon Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Stainless Steel ASTM A182 F304/304L/304H, F316/316L, F310, F317, F321,F347
Duplex Steel ASTM A182 F44, F51, F53, F55,F60, F61, S31803, S32205, S32550, S32750, S32760

Hex Head Bushing NPT 1

ASTM A182 F316 Chemical Composition

C Mn P S Si Ni Cr Mo
0.08 2 0.035 0.03 1 10-14 16-18 2-3

ASTM A182 F316 Mechanical Properties

Tensile Strength Yield Strength Elongation
515 (Mpa) 205 (Mpa) 30 (%)

Threaded Bushing Weight

The weight chart of threaded bushing is covering two types that hex head bushing and flush bushing. Their dimensions are from 1/4" to 4".

Hex Head Bushing NPT 1

1 NPT Hex Head Bushing

Marking

Our workers marked " HB 1" NPT SS316 168" on threaded bushing body, it covers type, size, thread, material and heat No only, becuase the size and space are tight.

Surface

Brush the anti-rust oil on all threaded bushing.

Wrap hex head bushing with waterproof papers.

Package

Pack 1" NPT Hex Head Bushing into cartons.

Put all cattons in wooden cases and bundle it with belts.

Shipping mark on the wooden case for easy indentification.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as type, size, material grade, thread, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread with go/no go gauge.

Advantanges

  • Cheap price
  • Fast delivery
  • One stop service
  • ISO quality certification
