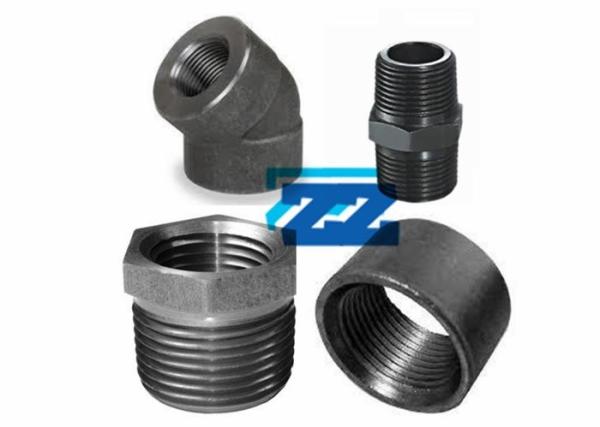

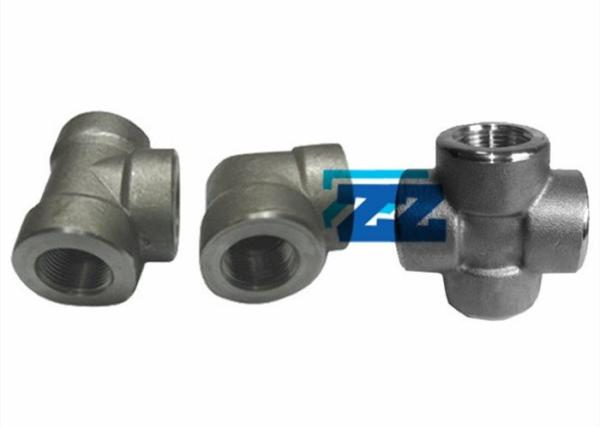

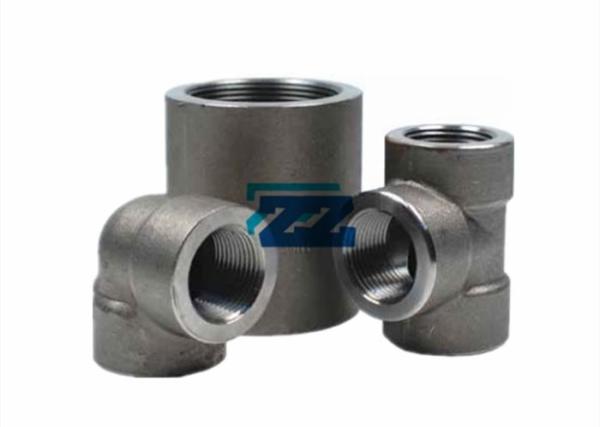

Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11
Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11
Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11
Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11
Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11
Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11
Specifications
Brand Name :
ZZ
Model Number :
ASTM A105
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-10 Days
Packaging Details :
Cartons and Wooden Cases, LCL, 20ft Container
Material :
Carbon Steel
Connection :
Female and Male Thread
Product :
ELbow, Tee, Cross, Coupling, Cap, Plug, Bushing, Nipple
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
2000LB, 3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Description

Carbon Steel Threaded Pipe Fittings 1 / 8 to 4 Inch ASTM A105 ASME B16.11

Carbon Steel Threaded Pipe Fittings

Quality carbon steel threaded pipe fittings are available in sizes of 1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4" and pressure of 2000lb, 3000lb, 6000lb.

Thread Type

There are six thread types which most commonly used on forged pipe fittings.

  • BSPP
  • BSPT
  • UN/UNF
  • NPT/NPTF
  • Metric Parallel
  • Metric Tapered

Threaded Fittings Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 2000, 3000, 6000
Standard ASME B16.11, BS3799, GB/T14626
Surface Anti-rust Oil or Galvanized
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S31803, S32205, S32550, S32750, S32760

Tolerances for Threaded Fittings

The dimensions and tolerances of threaded fittings in accordance with ANSI/ASME B16.11 as follow table.

Carbon Steel Threaded Pipe Fittings 1 / 8 To 4 Inch ASTM A105 ASME B16 11

Forged Steel Threaded Fittings

Marking and Packing

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Packed small diameter threaded fittings into cartons and wooden cases.
  • Tagged labers on the outside of the package for easy indentification.

Inspection

  • Visual the surface. Such as dents, die marks, porosity, undercuts.
  • Check the marking. Such as name, size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the thread of threaded pipe fittings by Go/no Go Gauge.

Application

  • Marine industry
  • Chemical industry
  • Oil & gas industry
  • Pipeline engineering
  • Petrochemical industry
  • Waste water treatment

ASTM A105 Chemical Composition

C Mn P S Si Ni Cr Mo
0.35 0.6-1.05 0.035 0.04 0.1-0.35 0.4 0.3 0.12

ASTM A105 Mechanical Properties

Tensile Strength Yield Strength Elongation HB
485 (Mpa) 250 (Mpa) 22 (%) 187
