Specifications
Brand Name :
ZZ
Model Number :
ASTM A350 LF2
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiation
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
60000 PCS Per Month
Delivery Time :
5-15 Days
Packaging Details :
Cartons and Wooden Cases
Products :
90 Degree Elbow,45 Degree Elbow, Equal Tee, Reducing Tee, Threaded Coupling, Cap and Union
Size :
1/8", 1/4", 3/8", 1/2", 1/4", 1", 1 1/4", 1 1/2", 2", 2 1/2", 3", 4"
Pressure :
2000 LB, 3000 LB, 6000 LB
Standard :
ASME B16.11, BS3799
Thread :
NPT, BSPP, BSPT
Surface :
Galvanized, Anti rust Oil.
Packing :
Plastic Foam, Carton and Wooden Case. 20FT Container
Application :
Industry, Petroleum, Gas And Oil Pipes, Chemical
Description

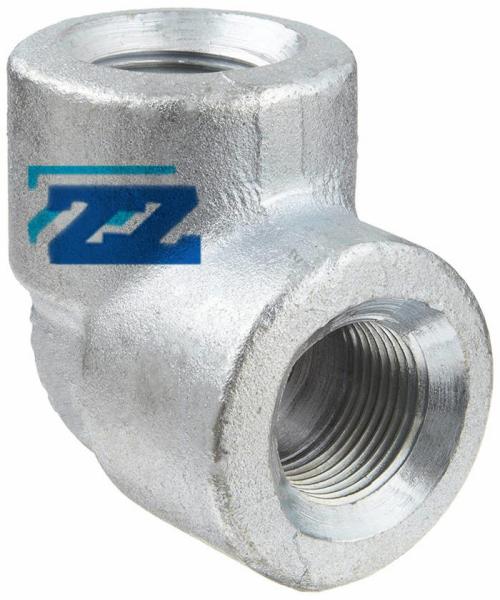

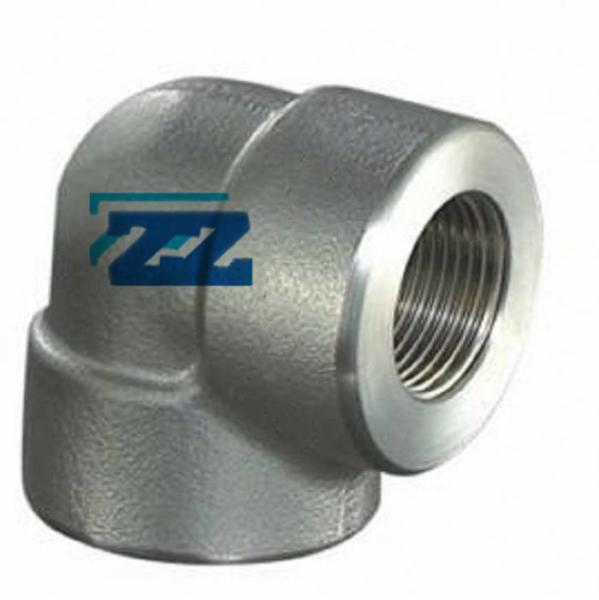

Galvanized 90 Degree Elbow NPT 3 " 3000 # Carbon Steel Pipe Fittings ASME B16.11

Galvanized 90 Degree Elbow

As a reliable Forged Threaded Fittings manufacturer, Zizi supplies galvanized carbon steel pipe fittings 90 Degree Elbow NPT 3" 3000# ASME B16.11 for more than 15 countries.

Forged Elbow offers you a simple, economical installation and use with water and oil in chemical, petrochemical, paper, shipbuilding application. Change the direction in your pipeline with our Galvanized Elbow which help to resist corrosion.

90 Degree Threaded Elbow Dimensions

Size 1/8" to 4" / DN6 to DN100
Pressure Rating Class 2000, 3000, 6000
Standard ASME B16.11 and BS3799
Surface

Anti-rust Oil or Galvanized
Type 90 Degree Threaded Elbow, 45 Degree Threaded Elbow
Stainless Steel ASTM A182 F304/304L, F304H, F316/316L, F310, F317, F321
Caron Steel ASTM A105, A350 LF2, LF3, A694 F52, F60, F65, F70
Alloy Steel ASTM A182 F1, F5, F9, F11, F12, F22, F91
Duplex Steel ASTM A182 F51, F53, F55, S 31803, S 32205, S 32550, S 32750, S 32760

Galvanized 90 Degree Steel Pipe Elbow , NPT 3

Threaded Elbow Weight

Differ from butt weld elbows, you can't get the weights of 45 degree elbow based on the weight of 90 degree elbows. Here is the 90 degree threaded elbow weights, if you want to know 45 degree elbow, you can check our products list.

Galvanized 90 Degree Steel Pipe Elbow , NPT 3

Threaded Elbow Class 3000

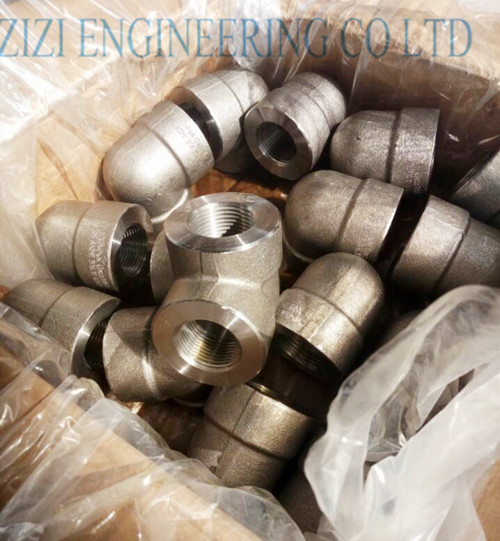

Package

  • Marked with Grade, Lot No, Size, Standard and Pressure.
  • Wrapped forged steel elbow with plastic foam
  • Packed Threaded fittings into cartons and wooden cases.

Galvanized 90 Degree Steel Pipe Elbow , NPT 3

Inspection

  • Surface check. Include visual and touch the surface.
  • Check the marking. It should include clear size, material grade, pressure, heat No.
  • Measure the size. Such as diameter, thickness, height of end to end.
  • Test the NPT thread with go/no go gauge.

Advantage

  • Reasonable Price
  • Durable and Safe
  • Extensive Options
  • Safe Package
  • Reliable Shipment

ASTM A350 LF2 Data Sheet

Chemical Composition

C Mn P S Si Ni Cr Mo
0.3 0.6-1.35 0.035 0.04 0.15-0.3 0.02 0.3 0.12

Mechanical Properties

Tensile Strength Yield Strength Elongation HB
485 - 655 (Mpa) 250 (Mpa) 22 (%) 197
