Specifications
Brand Name :
ZZ
Model Number :
ASTM A860 WPHY42
Certification :
ISO, CE
Place of Origin :
CHINA
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, D/P, D/A, L/C
Supply Ability :
50000 PCS Per Month
Delivery Time :
10-20 Days
Packaging Details :
1/2" to 16" in Wooden Cases. Above 16" in wooden Pallets
Material :
Carbon Steel, Stainless Steel, Alloy Steel
Application :
Industry, Natural Gas , Petroleum, Chemical, Gas and Oil Industry
Standard :
ANSI, DIN, ASME B16.9
Size :
1/2" - 60"
Thickness :
sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Products :
90 Degre Elbow, 45 Degree Elbow, Concentric Reducer, Eccentric Reducer, Equal Tee, Reducer Tee, Pipe Cap, End Cap
Packing :
Wooden Cases, Pallets
Surface :
Galvanized, Black Primer, PE Coating
Description

45 Deg Elbow 16 " Sch20 LR Carbon Steel WPHY 42 Steel Pipe Fittings ASME B16.9

Carbon Steel Buttweld Elbow

45 Deg Elbow 16" Sch20 LR Seamless A860 WPHY 42 Steel Pipe Fittings ASME B16.9 is made of superior grade raw materials and finds wide applications in various chemicals, oil and gas pipe and petroleum industries.

Steel pipe elbow is an improtant fittings among pipe systems, so it has various types and extensive dimension ranges. Zizi engineering is a professional manufacturer and exporter, with a wealth of production experience and strict standards, we provide the best products for customers.

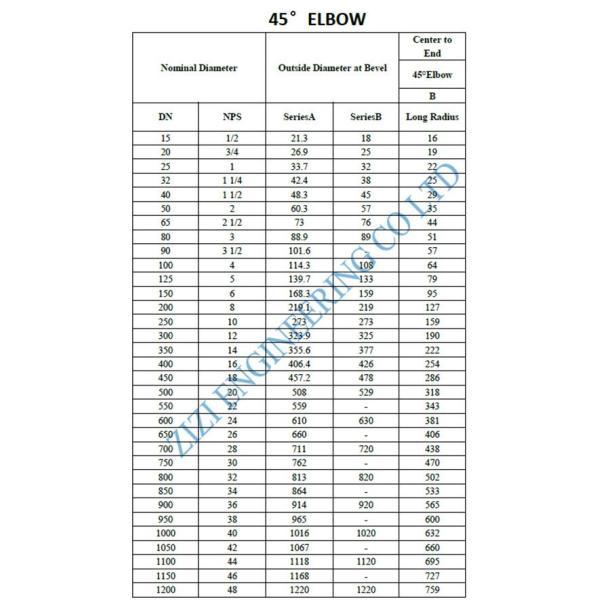

16" 45 Degree Elbow Dimensions

Size NPS 1/2" - 48" / DN 15 - 1200
Wall Thickness Sch10s, 20, 40, STD, XS, 80, 100, 120, 140, 160, XXS
Standard ASME B16.9, HG/T21635, HG/T2163, SY/T0510
Types Seamless, Welded, 90 Degree, 45 Degree, Long Radius, Short Radius Elbow

45D Elbow Carbon Steel Pipe Fittings 16

Stainless Steel Pipe Cap

ASTM A403 WP304/304L/304H, WP316/316L, WP310, WP317, WP321, WP347

Carbon Steel Seamless Cap

ASTM A234 WPB, A860 WPHY42, 52, 60, 65, 70, A420 WPL3 / 6 / 9

Alloy Steel Cap

ASTM A234 WP1, WP5, WP9, WP11, WP12, WP22, WP91

Duplex Steel Buttweld Cap

ASTM A815 UNS S 31803, 32205, 32550, 32750, 32760

ASTM A860 WPHY 42 Chemical Composition

C Mn P S Si Ni Cr Mo
0.2 1-1.45 0.03 0.01 0.15-0.4 0.5 0.3 0.25

ASTM A860 WPHY 42 Mechanical Properties

Tensile Strength Yield Strength Elongation
515-690 (Mpa) 415 (Mpa) 28 (%)

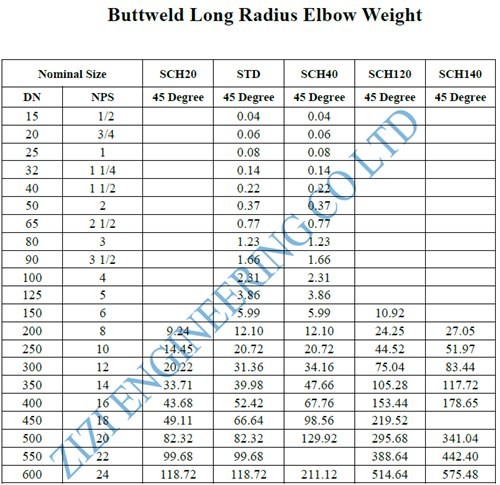

45 Degree Elbow Weight Chart

It can be divided into long radius type and short radius type, and here we give you the weight of long radius 45 degree elbow, if you want to know the weight of other elbows, you can contact us or check our product lists.

45D Elbow Carbon Steel Pipe Fittings 16

How to Calculate Weight of 45 Degree Elbow

  • W=0.0216 * S( D – S ) * R / 1000
  • W = Weight (kg/piece).
  • S = Thickness Schedule.
  • D = Nominal Diameter.
  • R = Radius

16" Long Radius Elbows

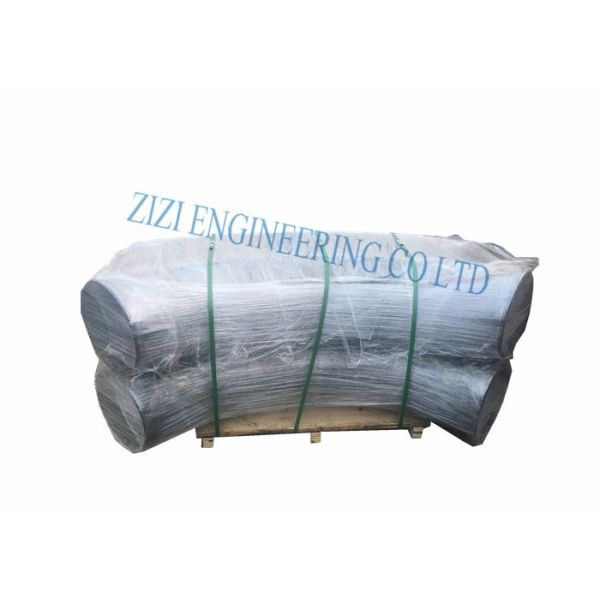

Package

  • Marking at surface: Grade, Lot No, Size, Standard and Pressure.
  • Wrapped plastic foam at every elbow.
  • Packed 45 Degree LR Elbows into wooden pallets.
  • Tagged labers for easy indentification.

45D Elbow Carbon Steel Pipe Fittings 16

Inspection

  1. Check the surface. Such as dents, die marks, porosity, undercuts.
  2. Observe the marking, ensure they are clear and complete.
  3. Measure the size. Such as diameter, thickness, center to end.

Application

  • Oil tank
  • Power industry
  • Marine industry
  • Chemical industry
  • Oil & gas industry
  • Pipeline engineering
  • Food processing industry
