X458 4 Alloy Steel Drop Forged Chains For I Beam Systems
X458 4 Alloy Steel Drop Forged Chains For I Beam Systems
Specifications
Brand Name :
ZH
Model Number :
458
Place of Origin :
Changzhou, China
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
Annual output of 100000 meters
Delivery Time :
10-15 days
Packaging Details :
carton box
Material :
alloy steel
Product_Name :
x458 conveyor chain
Chain_Size :
x458
Description

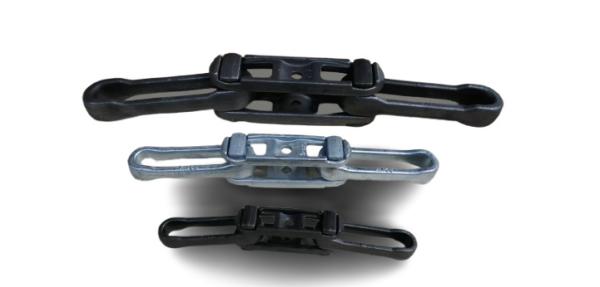

X458 4" Alloy Steel Drop Forged Chains For I Beam Systems

4" CHAINS FOR I-BEAM SYSTEMS,

Drop forged chains offer a standardised solution for heavy duty bulk conveying in abrasive or aggressive environments such as boiler ash and cement. This chain is usually used as a single strand scraper system for horizontal and inclined conveying. The forging process, material selection and post production heat treatments provide a strong and ductile chain capable of combatting fatigue and shock load failure.

Generally supplied with a range of welded steel flights in various configurations or bolted nylon flights. Other attachment and fitting configurations are also available for the entire range of drop forged chains along with full range of sprockets.

ZH offers chain in multiple sizes, X-348 ,X-458 , X-678,468,698 and 9118. Chain is drop forged, rivetless, and is extremely flexible on both vertical and horizontal curves. chain provides strength and flexi-bility to accommodate all I-Beam conveyor applications.

This type of chain is generally used in high-altitude conveying equipment, mainly in the pre-processing industry, such as electrophoresis, painting, and so on. Has good wear resistance and tensile strength. Easy to repair and replace.

X458 4

Chain model Pitch Pin diameter Pin length Size min
P d H(max) B(max) c n b m(min) t Tensile strength
mm mm mm mm mm mm mm mm mm KN
P2-80-106 80 12 47 29.5 12.5 18.3 13.5 20 6.5 98
X348 76.6 12.5 48 29.5 13 18 14 20 9.5 98
P2-100-220 100 16 58 36.6 16 25.5 18.3 27.6 7 187
X458 102.4 16 58 36.6 16 25.5 18.3 27.6 12 187
P2-80-290 80 18 70.5 42 19 32 19.5 33 10 250
468 102.4 19.1 84 49 29 40.9 25 43.2 11 302
X678 153.2 22.1 77 51.6 21.5 32 24.5 33.5 16.5 320
P2-160-400 160 24 84 54 20 33.8 27.5 37 12 360
698 153.2 28.4 95.3 68.3 25.4 39.1 30 41.7 14.5 605
998 229.4 28.4 95.3 68.3 25.4 39.1 30 41.7 16 605

X458 4X458 4X458 4
