4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
Specifications
Place of Origin :
Changzhou, China
MOQ :
100
Price :
negotiable
Payment Terms :
L/C, T/T, D/P, D/A
Supply Ability :
Annual output of 100000 meters
Delivery Time :
10-15 days
Packaging Details :
carton box
Brand Name :
ZH
Model Number :
458
Material :
alloy steel
Product_Name :
x458 conveyor chain
Chain_Size :
x458
Description

4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel

4" CHAINS FOR I-BEAM SYSTEMS,

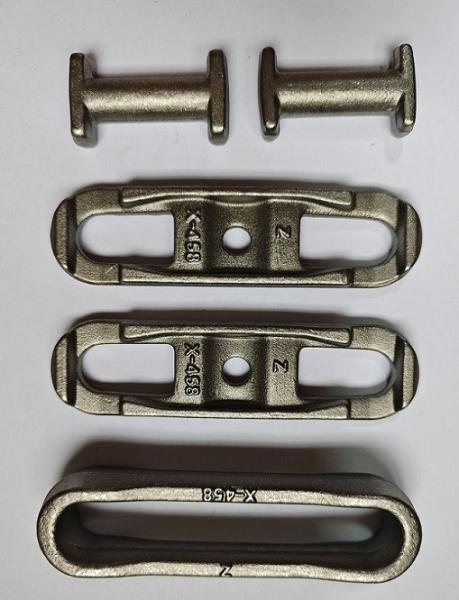

ZH offers chain in multiple sizes, X-348 ,X-458 , X-678,468,698 and 9118. Chain is drop forged, rivetless, and is extremely flexible on both vertical and horizontal curves. chain provides strength and flexi-bility to accommodate all I-Beam conveyor applications.

This type of chain is generally used in high-altitude conveying equipment, mainly in the pre-processing industry, such as electrophoresis, painting, and so on. Has good wear resistance and tensile strength. Easy to repair and replace.

4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel

Chain model Pitch Pin diameter Pin length Size min
P d H(max) B(max) c n b m(min) t Tensile strength
mm mm mm mm mm mm mm mm mm KN
P2-80-106 80 12 47 29.5 12.5 18.3 13.5 20 6.5 98
X348 76.6 12.5 48 29.5 13 18 14 20 9.5 98
P2-100-220 100 16 58 36.6 16 25.5 18.3 27.6 7 187
X458 102.4 16 58 36.6 16 25.5 18.3 27.6 12 187
P2-80-290 80 18 70.5 42 19 32 19.5 33 10 250
468 102.4 19.1 84 49 29 40.9 25 43.2 11 302
X678 153.2 22.1 77 51.6 21.5 32 24.5 33.5 16.5 320
P2-160-400 160 24 84 54 20 33.8 27.5 37 12 360
698 153.2 28.4 95.3 68.3 25.4 39.1 30 41.7 14.5 605
998 229.4 28.4 95.3 68.3 25.4 39.1 30 41.7 16 605

4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel4 Inch X458 Conveyor Chain Drop Forged Rivetless Alloy Steel
