Corrosion Resistance P14218 Forged Link Chains P101.6 P200 120mm-320mm
Corrosion Resistance P14218 Forged Link Chains P101.6 P200 120mm-320mm
Specifications
Brand Name :
ZH
Model Number :
P101.6,P142,P200,P260
Place of Origin :
Changzhou, China
MOQ :
100m
Price :
negotiable
Packaging Details :
carton box
Payment Terms :
L/C, T/T, D/P, D/A
Feature :
High Strength, Corrosion Resistance, Wear Resistance
Model :
G30, G43, G70, G80
Surface Treatment :
Galvanized, Self-color, Black, Painted
Standard :
DIN, ASTM, BS, JIS
Usage :
Lifting, Transportation, Mining,
Structure :
Welded, Weldless
Material :
Carbon Steel, Alloy Steel, Stainless Steel
Technology :
Forging, Heat Treatment
Size :
120mm-320mm
Chain Type :
Link Chain
Application :
Heavy Duty, Industrial, Agricultural,
Description

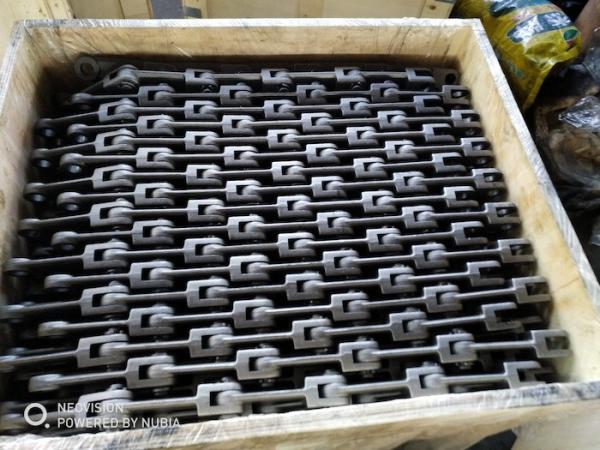

P14218 forged link chains,P101.6,P200

Die forging scraper chain is a type of chain manufactured through die forging technology, mainly used for buried scraper conveyors, suitable for industries such as grain machinery, mining machinery, steel mills, and power plants. The forging scraper chain is composed of different combinations of scraper chain links or traction chain links. The chain links are forged products, and the pin shaft is generally treated with alloy steel integral heat treatment or surface high-frequency treatment to improve the surface hardness of the pin shaftHigh Tensile Strength
The forging process allows these forged link chains to support heavy loads and endure continuous operation, making them suitable for industries like mining where equipment reliability is paramount.
Wear and Impact Resistance
Thanks to hardening treatments, drop-forged chains are highly resistant to abrasive materials and frequent impacts, which helps to reduce maintenance costs and downtime.
Modularity and Customization
Drop-forged link chains come with options for welded or bolt-on attachments, allowing easy customization to fit specific conveyor requirements. This modular design enables various configurations, adapting to the unique needs of each operation.
Corrosion Resistance
We can offer forged link chains in stainless steel or apply corrosion-resistant coatings, making them suitable for outdoor or wet environments.

Corrosion Resistance P14218 Forged Link Chains P101.6 P200 120mm-320mm

Chain model Pitch Size
P B C A D E F G H
mm mm mm mm mm mm mm mm mm
P100-1 100 30 44 14.5 34 16 33 15.5 13
P100-2 100 38 49 16 41 12 27 11 8
P100-3 100 36 52 14 39 14.5 30 13.5 9
P101.6 101.6 36 52 14 39 14.5 30 13.5 8
P125-1 125 34 43 17 36 18 34 16.5 10
P125-2 125 40 68 17 43 20 48 18 15
P142-1 142 46 73 26 50 21 46 20 11
P142-2 142 50 71 25 55 21 42 19 11
P142-3 142 50 71 25 55 22 46 20 13
P142-4 142 50 71 25 55 23 54 22 14
P142-5 142 50 73 25 55 32 62 30 16
P152 152 56 76 25 60 33 70 30 18
P160 160 50 71 25 55 21 42 19 13
P180 180 55 83 25 62 31.5 70 30 25
P200-1 200 46 89 20 52 21 44 20 12
P200-2 200 50 81 25 54 26 56 24 17
P200-3 200 70 115 30 76 32 62 30 20
P250 250 76 118 32 90 32 70 30 21
P260 260 76 118 32 90 32 70 30 21

Corrosion Resistance P14218 Forged Link Chains P101.6 P200 120mm-320mmCorrosion Resistance P14218 Forged Link Chains P101.6 P200 120mm-320mm

Corrosion Resistance P14218 Forged Link Chains P101.6 P200 120mm-320mm
