High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
Specifications
Brand Name :
SHANAN
Model Number :
SACW-210
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
function :
on line weight checking
Type :
weight detector
Color :
siliver
Function :
Weighing inspection
application :
Nuts and Dried Fruit
product name :
Overload weight checker
Display Type :
D display
Power Supply :
110v or 220v
Accuracy :
± 0.1g
Rated Load :
5 KG
Warranty :
2 years
Description
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
About Shanan.pdf
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker

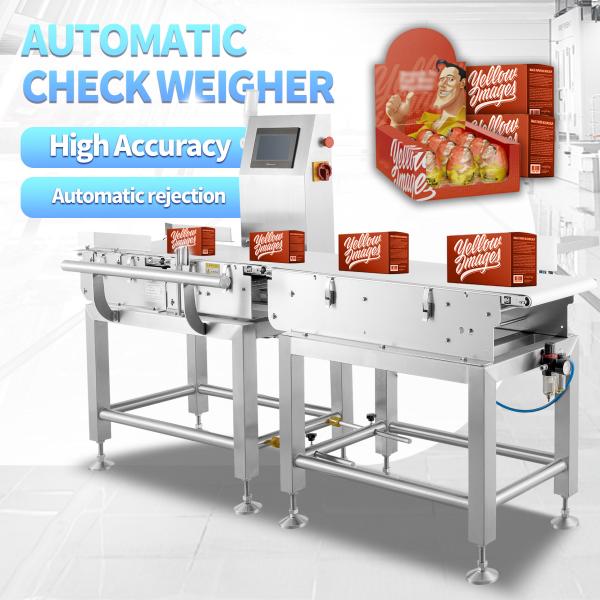

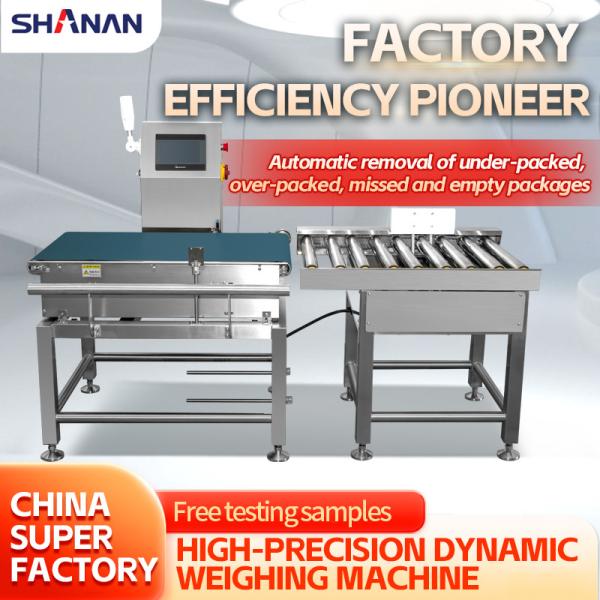

FDA Food Grade Automatic check weigher with pusher rejector for food industry. Weighing and sorting machine is designed for various automation lines and automatic weight detection on logistics conveyor systems. This high-tech automated sorting equipment performs weight checks with upper and lower limits, making it ideal for online automatic weighing of boxed products, parcel boxes, and single product sample packaging. It provides detection for underweight products, missing installations, and attachment omissions.
Product Features and Advantages
  • Designed to increase productivity and efficiency
  • High-speed sampling control enables faster equipment speed and higher precision
  • 10-inch large operation screen with easy-to-use human-machine interface
  • Independent operation in 3 minutes
  • Reinforced stainless steel structure with IP65-68 waterproof type (optional)

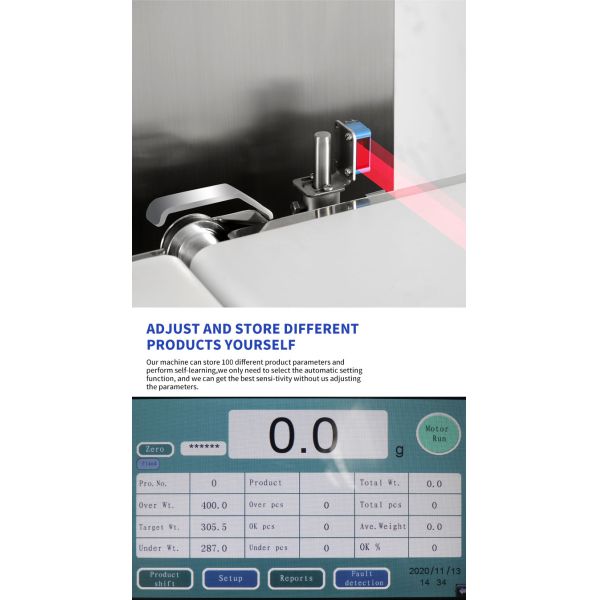

  • Can store multiple recipes for easy product specification changes
  • Modular structure makes the machine simple, easy to maintain, and easy to clean
  • Manual or automatic zero and dynamic zero tracking
  • Generate EXCEL format and various real-time data reports
  • U disk storage for over 1 year of data, supporting production monitoring
  • Communication with PC and other smart devices
  • Centralized control of multiple checkweighers by one computer and man-machine interface
  • Frequency control motor with adjustable speed as needed
Product Application
Weighing and sorting equipment is suitable for testing whether the weight of a single product is acceptable or if there are any omissions in the packaging process. Widely used in pharmaceutical, food, beverage, electronics, healthcare products, daily chemicals, light industry, agricultural and sideline products, and many other industries. Applications include boxed medicines and food industry products.
Technical Specifications
Parts Name Specification / Brand Unit Use Amount
Control system Vfinder control system, 8 inch industrial touch screen pcs 1
Weight sensor Germany HBM Pcs 1
Driving system Delta Pcs 1
Inverter Delta Pcs 1
Photoelectric switch Taiwan Riko Pcs 1
Motor Switch CHNT Pcs 1
Conveyor belt White Shabaker Pcs 1
Main conveyor belt roller NSK Bearing Pcs 1
Accessory conveyer belt NSK Bearing Pcs 1
Standard Features

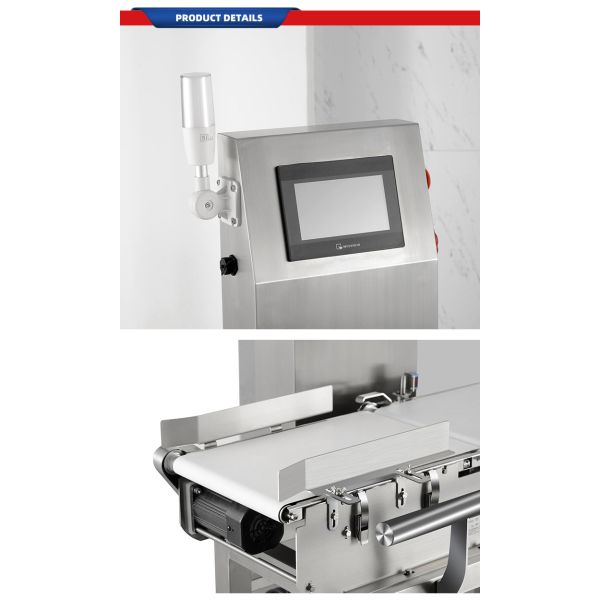

  • Control Panel Exterior: Stainless Steel and Painted
  • Conveyor: Non-waterproof
  • Balance: Force Balance
  • Frame: Stainless Steel and Painted
  • Color D Touch Screen
Optional Features
  • Tower Light (with buzzer alarm)
  • Data Printer
  • Emergency Stop Switch
  • Line Height Change
  • Plate for Anchor
  • Remote Indicator
  • Cross Plate
  • Product Guide
  • Wind Shield (full cover)
  • Wind Shield (top)
Model Specifications Comparison
Model Name VC-10 VC-15 VC-22 VC-30 VC-40 VC-25 (Two belt) VC-100
Weight range (g) 3-100 3-300 10-1200 30-3000 50-1000 50g-25kg 1kg-100kg
Mini weight accuracy (g) ±0.1 ±0.3 ±0.5 ±1 ±0.5 ±5g ±10g
Mini screen value (g) 0.01 0.1 0.1 0.1 0.1 0.5 1g
Max weigh speed (Bags/Minute) 20 330 210 180 180 50 20
Belt speed (Meter/minute) 0 16-118 13-96 13-96 13-96 13-78 3-15
Reject device optional: Pin Rod / Push rod / air blast / divided flow / drop down / flap drop (Optional)
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker

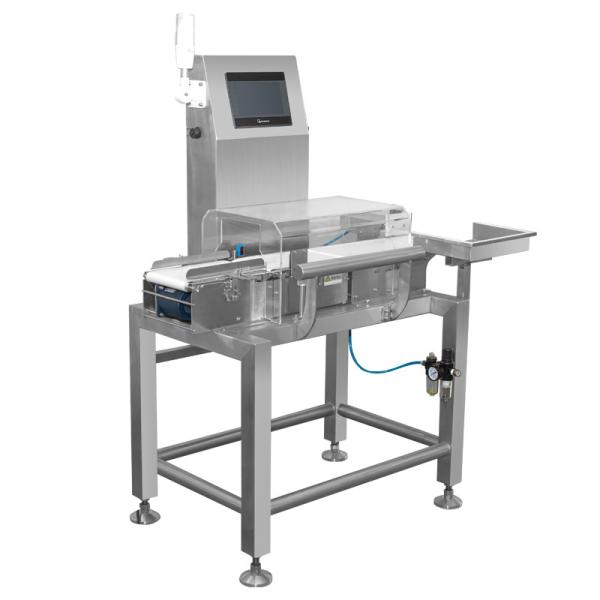

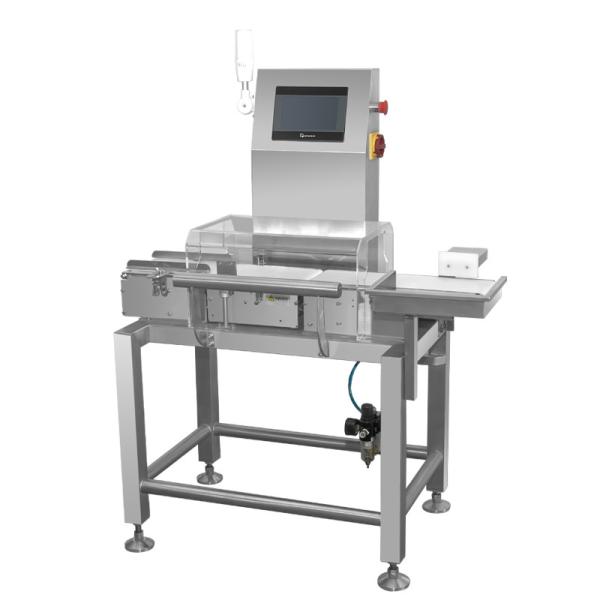

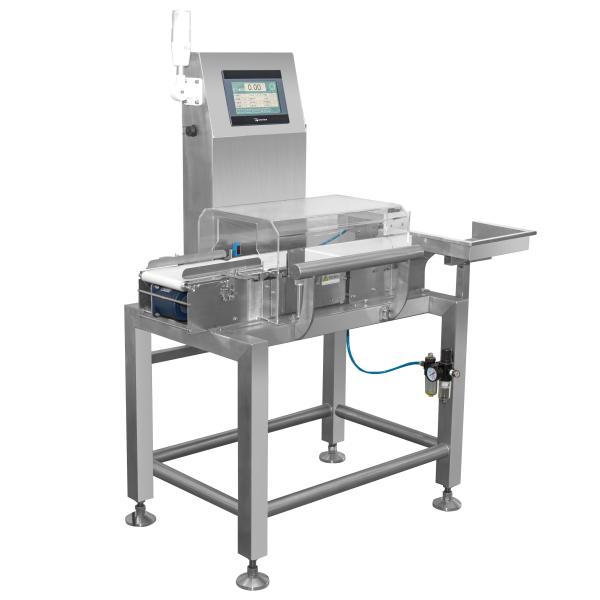

SACW-210 Model Specifications
Product model SACW-210 Transfer speed 30~100m/min
Power supply AC220V土10% 50HZ (60HZ) Maximum speed 160 pcs/min
Rated power 0.15KW Weighing conveyorbelt size 400mm(L)*210mm (W)
Single weighing range 1.5-200g Elimination method Blow-out
Weighing accuracy range 土0.02g~土1g Control System High speed A/D sampling controller
Minimum scale 0.01g Preset product number 2000pcs
Inspection item size ≤2800mm(L)*200mm (W) Machine size 2100mm (L)*560mm(W)*1222mm (H)
Additional Specifications:
Operation direction: Facing the machine, left to right
External air supply: 0.6-1Mpa
Air pressure interface: Φ8mm
Working environment: Temperature: 0°C~40°C, Humidity: 30%~95%
Body material: Stainless steel 304 polished
Operation screen display: Chinese, English, Turkish, Spanish, etc.
Other standard equipment: Windshield (colorless and transparent), calibration weight
Height of belt surface from ground: 650mm~750mm (can be customized)
Protection level: Protection level conforms to IP-65 international standard

Remarks: According to the different dimensions of the tested product and the working environment in which the equipment is running, the accuracy of the speedometer is slightly different.
High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker High-Tech Automated Sorting Equipment For Weighing And Sorting Weight Checker
