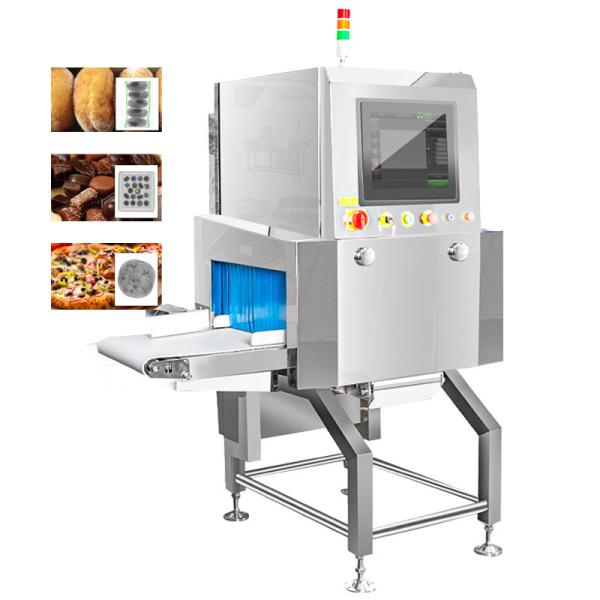

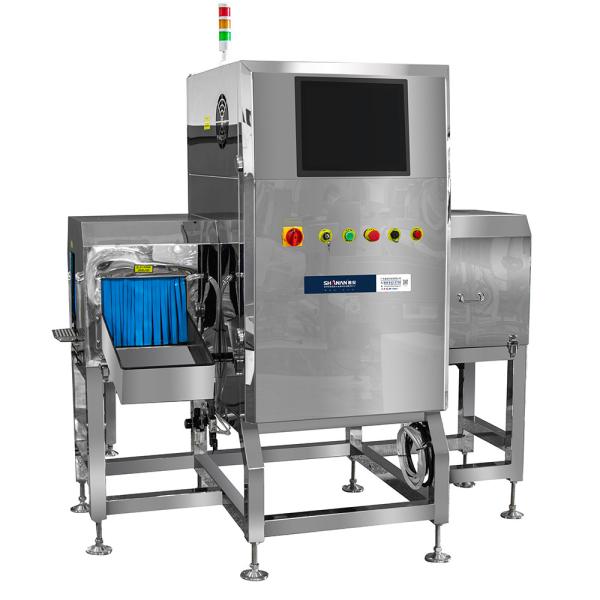

AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
Specifications
Brand Name :
SHANAN
Model Number :
SAXR-4025
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Product name :
Food X-Ray Inspection machine
Optimum Inspection Sensitivity :
Stainless steel ball: Φ0.3mm, Stainless steel wire: Φ0.2*2 mm, Ceramic ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters :
Maximum height: 250mm
Conveyor speed :
5-60 m/min
Load capacity :
10Kg or customized
Rejector Mode :
Sound and light alarm, belt stops (Rejector optional)
X-ray leak :
<1μSvh (CE Standard)
Detector Type :
Linear scan
Protection Level :
IP67
Monitor :
17'' full-color TFT touch screen
Operation method :
Touch screen operation
Operation System :
Linux (Core 4.10)
Support Data Interface :
USB
Parameter Settings :
Self-learning / manual adjustment
Body Material :
Food grade SUS 304/ SUS316
Conveyor Belt Material :
PU belt/ PVC belt
Air Conditioning :
Internal circulation industrial air conditioner, automatic temperature control
Protection Method :
Detachable protective curtain
Cleaning Method :
Tool-free removal of conveyor belt for easy cleaning
Power Supply :
AC110V/220/380V, 50/60Hz
Environmental Requirements :
Temperature: 0-45 ° C / humidity: 30-85% RH (no condensation)
Machine Weight :
360Kg
Description
AI Powered X-Ray Food Metal Detector - 300pcs/Min Speed - FDA & CE Certified
Advanced X-ray inspection system designed for food industry applications including chocolate, nuts, cookies, and various packaged foods.
Download Company Overview (PDF)
X-ray Inspection for Wet and Dry Pet Food Products
Pet food faces similar contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.
Pet Food X-ray Applications
  • Ensure product conformity and completeness
  • Confirm accurate fill-levels (e.g., milk replacements for young animals)
  • Verify seals and lids are properly applied
  • Measure product mass for accurate weight verification
  • Identify foreign objects including metal, bone, glass, plastics, and other contaminants
Why Choose X-ray Over Metal Detection for Pet Food?
X-ray technology enables detection of metal contaminants inside metal containers such as tins and trays. Shanan x-ray systems provide superior sophistication compared to metal detectors, allowing multiple inspection functions in one machine while detecting non-metallic contaminants like glass and stone.
Why Choose a Shanan X-ray System?
  • Unmatched speed, sensitivity, and detection sophistication
  • Adaptable ergonomic design for various production environments
  • Automatic calibration and setup capabilities
  • User-friendly interface and intuitive controls
  • Designed for quick and easy wash-down maintenance
  • Hygienic design compliant with FMSA standards
  • Multiple reject options to suit production line requirements
  • Easy integration into existing production lines
  • Customized and bespoke solutions for unique requirements
AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified AI Powered X Ray Food Metal Detector 300pcs/Min Speed FDA CE Certified
Advanced Detection Technology
Our systems deliver international-grade detection accuracy with operator-friendly setup. Complex products can be configured through automatic learning processes without technical assistance.
  • Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
  • Self-learning process requires only up to 10 images and completes training within 20 seconds
Reliability-Focused Engineering
  • Industry-first server-level Linux system ensures stability and virus immunity
  • Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
  • Anti-condensation design for temperature differential environments
  • High-end components ensure stable operation in harsh conditions
User-Centric Operation Features
  • IP66 rated detection channel allows direct washing
  • X-ray leakage meets US standards (<1μSv/h) with safety monitoring functions
  • Modular design enables production line upgrades without host replacement
  • 5-second belt disassembly for convenient on-site cleaning
  • Automatic saving and export of product configurations and inspection images for analysis
