High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
Specifications
Brand Name :
SHANAN
Model Number :
SACW500
Certification :
ce
Place of Origin :
CHINA
MOQ :
1
Packaging Details :
wooden box
Operating Temperature :
0-40℃
Power Supply :
AC 220V/50Hz
Weighing Range :
Customized
Belt Material :
Food Grade PVC Or PU
Sortting Manner :
Muti Sorting
Alarm :
Light And Sound
Display :
D
Throughout :
100~700PCS/min
Description

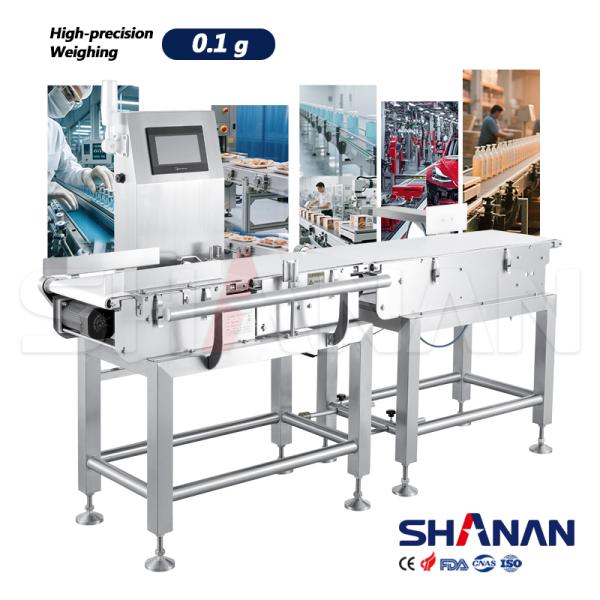

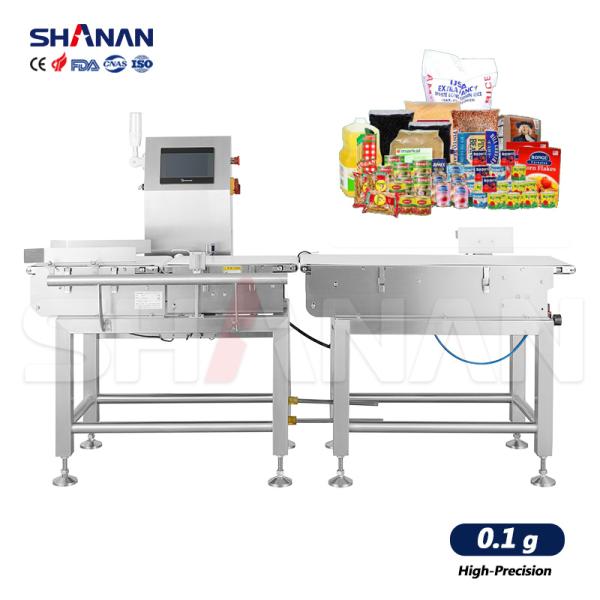

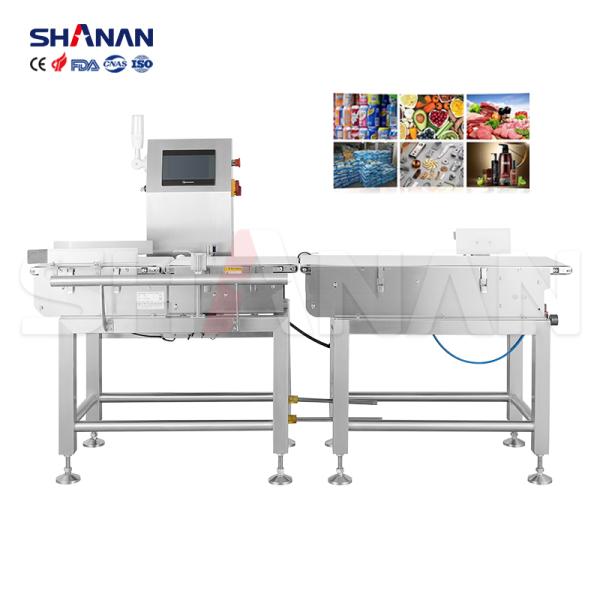

High Precision Automatic Weighing Dynamic Checkweigher Food Packaging Machine
Download About Shanan PDF Documentation
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
Technical Specifications
Product Model SACW-120A Transfer Speed 20~60 m/min
Power Supply AC220V±10% 50HZ (60HZ) Maximum Speed 180 pcs/min
Rated Power 0.15 KW Weighing Conveyor Belt Size 250mm(L) * 120mm(W)
Single Weighing Range 1.5-200g Elimination Method Blow-out
Weighing Accuracy Range ±0.05g ~ ±0.1g Control System High speed A/D sampling controller
Minimum Scale 0.01g Preset Product Number 2000 pcs
Inspection Item Size Length: 30-150mm, Width: 30-90mm, Height: 10-100mm
Machine Size 900mm (L) * 500mm(W) * 1250mm (H)
Operation Direction Facing the machine, left to right
External Air Supply 0.6-1 Mpa Air Pressure Interface Φ8mm
Working Environment Temperature: 0°C~40°C, Humidity: 30%~95%
Body Material Stainless steel 304 polished
Operation Screen Display Chinese, English, Turkish, Spanish, etc.
Other Standard Equipment Windshield (colorless and transparent), calibration weight
Height of Belt Surface from Ground 650mm-750mm (can be customized)
Protection Level Protection level conforms to IP-55 international standard
Remarks: According to the different dimensions of the tested product and the working environment in which the equipment is running, the accuracy of the speedometer is slightly different.
High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine High Precision Automatic Weighing Dynamic checkweigher Food Packaging Machine
Key Features
  • High precision dynamic weighing with accuracy up to ±0.05g
  • Automatic blow-out rejection system for under/overweight products
  • Multi-language operation interface for global applications
  • Stainless steel 304 construction for food-grade hygiene
  • IP-55 protection rating for industrial environments
  • Customizable belt height for production line integration
  • High-speed processing up to 180 pieces per minute
