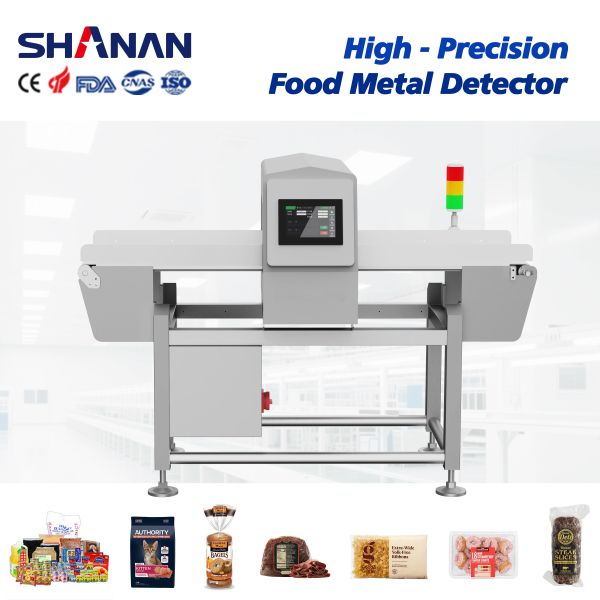

High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
High Precision Food Grade Seafood Industry Conveyor System Food Processing Metal Detector
Specifications
Brand Name :
SHANAN
Model Number :
sa-1000
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Machine structure :
304 Stainless Steel
machine Usage :
metal detecting
Customized size :
Yes
Alarm :
Sound and Light Alarm
Reject Optional :
Push Rod and Flap Drop
Principle :
Balanced Coil Technology / ElectroMagnetic Induction Technology
Application :
Food Metal Detection
H.S CODE :
8543709100
Optional :
Digital or Analogy /touch screen Choose
Conveyor Belt :
FDA Grade
Weight :
Around 250KG if customized the weight will different
Customized language :
English, Spanish and Russian
PN :
11
Description
Food Grade Metal Detector for Seafood Industry & Pharmaceutical Applications
High-performance 304 stainless steel metal detection systems designed for food and pharmaceutical industries.
Download Company Overview (PDF)
How Metal Detection Systems Work
All general purpose nonferrous metal detectors operate on the same fundamental principle:
  • Three coils are wound exactly parallel on a non-metallic frame
  • The center coil connects to a high-frequency radio transmitter
  • Two transmission-receiving coils sit on either side of the center coil
  • Identical outer coils receive the same signal and produce balanced output voltage
When metal passes through the system:
  • The high-frequency field is disturbed beneath one coil
  • Voltage changes disrupt the balance between coils
  • The system detects the imbalance and signals metal presence
  • Rejection mechanisms activate to remove metal contaminants
Benefits of Metal Detection Investment
Protecting your brand reputation is crucial in food manufacturing. A single safety recall can jeopardize years of quality investment. Metal detection provides an effective, verifiable inspection method to safeguard both customers and brand integrity. While commercial factors matter, technical performance should be the primary consideration when selecting equipment to protect your reputation.
Selecting the Right Metal Detection Equipment
Evaluate your operating environment carefully:
  • Environment Type: Assess whether your area is wet or dry with temperature variations
  • Wash Down Requirements: IP65 rating for low-pressure wash downs; IP69K for high-temperature, high-pressure conditions
  • Chemical Exposure: For caustic agents, consider Type 316L stainless steel for superior resistance
  • Dry Environment Considerations: Avoid painted surfaces in product streams to prevent paint chip contamination
  • Durability: Robust display screens and keyboards reduce downtime and replacement costs
Sensitivity Reference Specifications
Tunnel Size 40×12cm 40×15cm 40×20cm 50×15cm 50×20cm 50×25cm 50×30cm
Sensitivity Fe (mm) 0.8 1.0 1.2 1.0 1.2 1.5 2.0
Sensitivity SUS (mm) 1.5 2.0 2.5 2.0 2.5 3.0 3.5
Detection Height 120 150 200 150 200 250 300
Detection Width 400 500
Belt Speed: 10-35 meters per minute adjustable
Alarm Method: Light and sound with optional rejection mechanism
