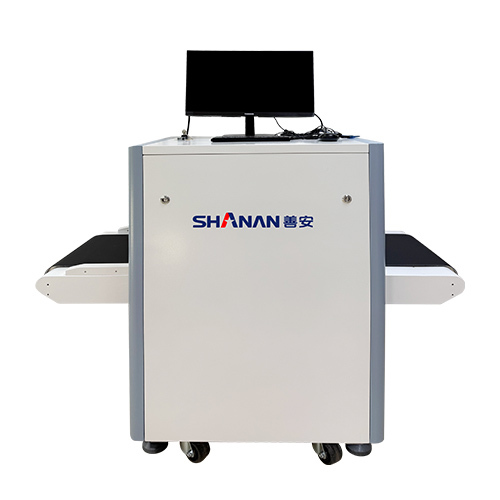

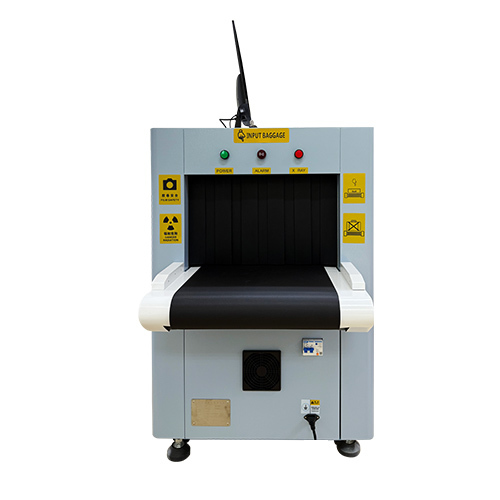

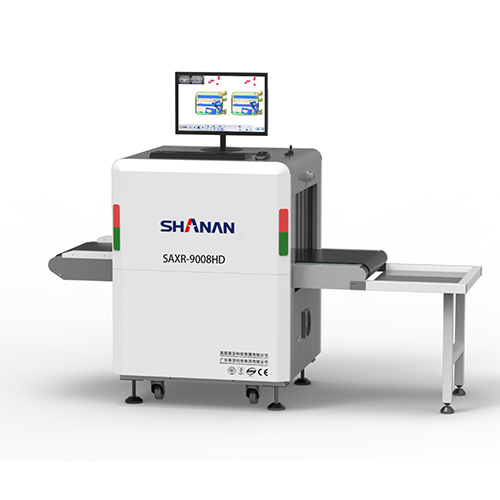

Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Specifications
Brand Name :
SHANAN
Model Number :
SAXR-4025
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Product name :
Food X-Ray Inspection machine
Optimum Inspection Sensitivity :
Stainless steel ball: Φ0.3mm, Stainless steel wire: Φ0.2*2 mm, Ceramic ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters :
Maximum height: 250mm
Conveyor speed :
5-60 m/min
Load capacity :
10Kg or customized
Rejector Mode :
Sound and light alarm, belt stops (Rejector optional)
X-ray leak :
<1μSvh (CE Standard)
Detector Type :
Linear scan
Protection Level :
IP67
Monitor :
17'' full-color TFT touch screen
Operation method :
Touch screen operation
Operation System :
Linux (Core 4.10)
Support Data Interface :
USB
Parameter Settings :
Self-learning / manual adjustment
Body Material :
Food grade SUS 304/ SUS316
Conveyor Belt Material :
PU belt/ PVC belt
Air Conditioning :
Internal circulation industrial air conditioner, automatic temperature control
Protection Method :
Detachable protective curtain
Cleaning Method :
Tool-free removal of conveyor belt for easy cleaning
Power Supply :
AC110V/220/380V, 50/60Hz
Environmental Requirements :
Temperature: 0-45 ° C / humidity: 30-85% RH (no condensation)
Machine Weight :
360Kg
Description
X-Ray Scanner - Digital Dental Security Inspection Rejection System
Food Industry Factory Metal Detector Machine X-Ray Food Machine
X-ray inspection for wet and dry pet food products. Pet food faces similar contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.
X-ray Applications
  • Ensure product conformity and completeness
  • Confirm accurate fill-levels (e.g., milk replacements for young animals)
  • Verify seals and lids are correct (e.g., seals on pouches of wet pet food and ring-pulls on tins)
  • Measure product mass (e.g., ensure accurate weight of dry kibble)
  • Identify foreign objects including metal, bone, glass, certain plastics, and other contaminants
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Why Choose X-ray Over Metal Detection for Pet Food?
X-ray technology enables detection of metal contaminants inside metal containers such as tins and trays of pet food. Shanan x-ray inspection systems provide superior sophistication compared to metal detectors, allowing multiple inspection functions within one machine. This enhances product quality and enables detection of contaminants like glass and stone that metal detectors cannot identify.
Why Choose a Shanan X-ray System?
  • Unrivalled speed, sensitivity, and detection sophistication
  • Adaptable ergonomic design
  • Automatic calibration and automatic set-up
  • User-friendly interface and controls
  • Designed for quick and easy wash-down
  • Hygienic design meeting FMSA standards
  • Multiple reject options to suit your production line
  • Easy integration into existing production lines
  • Customized and bespoke x-ray inspection solutions for unique requirements
Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System Industrial X-Ray Machine Scanner Digital Dental Security Inspection Rejection System
Our systems deliver the same high detection accuracy as international brands with operator-friendly setup capabilities.
Advanced Algorithm Technology
  • Automatic learning process handles complex products without technician intervention
  • Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
  • Self-learning completes with up to 10 images and 20-second model training
Reliability-Focused Technical Design
  • Industry-first server-level Linux system ensures stability and virus immunity
  • Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
  • Anti-condensation design for temperature differential environments
  • High-end components ensure stable operation in harsh industrial conditions
User-Centric Operation Features
  • IP66 protection rating allows direct washing of detection channel
  • X-ray leakage meets US standards (<1uSv/h) with safety monitoring function
  • Modular design enables production line upgrades without host replacement
  • 5-second belt disassembly for convenient on-site cleaning
  • Automatic saving and export of product configuration and inspection images for analysis
