Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved
Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved
Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved
Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved
Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved
Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved
Specifications
Brand Name :
SHANAN
Model Number :
SAXR-4015
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Product name :

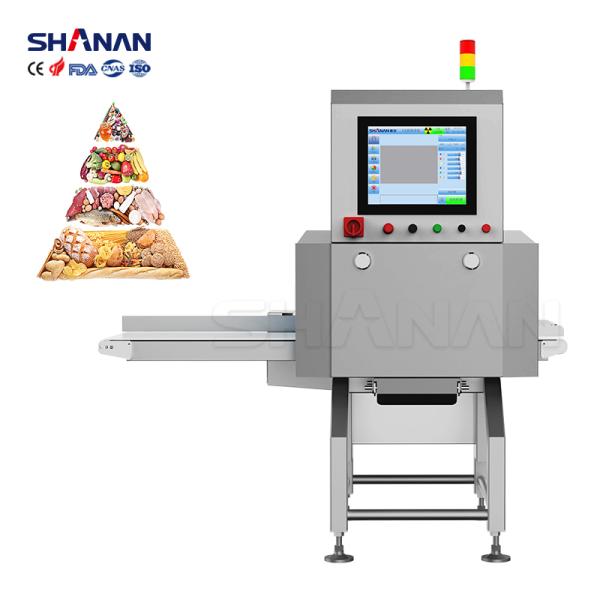

Food X-Ray Inspection machine
Optimum Inspection Sensitivity :
Stainless steel ball: Φ0.3mm, Stainless steel wire: Φ0.2*2 mm, Ceramic ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters :
400mm x 150 mm or customized
Conveyor speed :
5-60 m/min
Load capacity :
10Kg or customized
Rejector Mode :
Sound and light alarm, belt stops (Rejector optional)
X-ray leak :
<1μSvh (CE Standard)
Detector Type :
Linear scan
Protection Level :
IP67
Monitor :
17'' full-color TFT touch screen
Operation method :
Touch screen operation
Operation System :
Linux (Core 4.10)
Support Data Interface :
USB
Parameter Settings :
Self-learning / manual adjustment
Body Material :
Food grade SUS 304/ SUS316
Conveyor Belt Material :
PU belt/ PVC belt
Air Conditioning :
Internal circulation industrial air conditioner, automatic temperature control
Protection Method :
Detachable protective curtain
Cleaning Method :
Tool-free removal of conveyor belt for easy cleaning
Power Supply :
AC110V/220/380V, 50/60Hz
Environmental Requirements :
Temperature: 0-45 ° C / humidity: 30-85% RH (no condensation)
Machine Weight :
360Kg
Description
Food Safety Inspection System for Canned Fish
IFS & ISO Approved Glass and Metal X-Ray Detection Technology
Download Company Profile (PDF)
Quality Assurance in Pet Food Manufacturing
Wet pet food manufacturing requires precise quality control to ensure consistent, healthy, and flavorful products. Incompletely sealed packages can lead to machine contamination, production losses, and increased labor for cleaning and manual sorting. When defective packages leave production facilities, the consequences escalate to potential product returns, recalls, and significant brand reputation damage.
Shanan Group addresses these challenges with 100% inline seal inspection systems designed to safeguard seal quality throughout production.
X-ray Inspection for Wet and Dry Pet Food Products
Pet food faces similar contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.
Pet Food X-ray Applications
  • Ensure product conformity and completeness
  • Verify accurate fill levels (e.g., milk replacements for young animals)
  • Confirm proper seals and lids (pouch seals, tin ring-pulls)
  • Measure product mass for dry kibble weight accuracy
  • Identify foreign contaminants including metal, bone, glass, plastics, and other objects
X-ray vs. Metal Detection for Pet Food
X-ray technology provides superior detection capabilities for metal containers like pet food tins and trays. Shanan x-ray systems offer advanced sophistication over metal detectors by performing multiple inspections simultaneously, enhancing product quality and detecting non-metallic contaminants such as glass and stone that metal detectors cannot identify.
Shanan X-ray System Advantages
  • Unmatched speed, sensitivity, and detection sophistication
  • Adaptable ergonomic design for various production environments
  • Automatic calibration and setup procedures
  • User-friendly interface and intuitive controls
  • Quick and easy wash-down capabilities
  • Hygienic design compliant with FSMA standards
  • Multiple reject options tailored to production lines
  • Seamless integration into existing production systems
  • Customized and bespoke x-ray solutions for unique requirements
Food Safety Inspection System glass metal X Ray Machine For Canned Fish IFS ISO Approved View Product Demonstration Video
Advanced Detection Accuracy
Our systems deliver detection accuracy comparable to international brands with simplified operator setup:
  • Automatic learning process handles complex products without technical assistance
  • Dynamic feature recognition algorithm automatically selects optimal parameters for maximum sensitivity
  • Self-learning completes with up to 10 images and 20-second algorithm model training
Reliability-Focused Technical Design
  • Industry-first server-level Linux system ensures stability and virus immunity
  • Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
  • Anti-condensation design for temperature differential environments
  • High-end components ensure stable operation in demanding conditions
User-Centric Operation Features
  • IP66 rated detection channel allows direct washing
  • X-ray leakage meets US standards (<1μSv/h externally) with safety monitoring
  • Modular design enables production line upgrades without host replacement
  • 5-second belt disassembly for convenient on-site cleaning
  • Automatic configuration and inspection image saving for analysis and export
