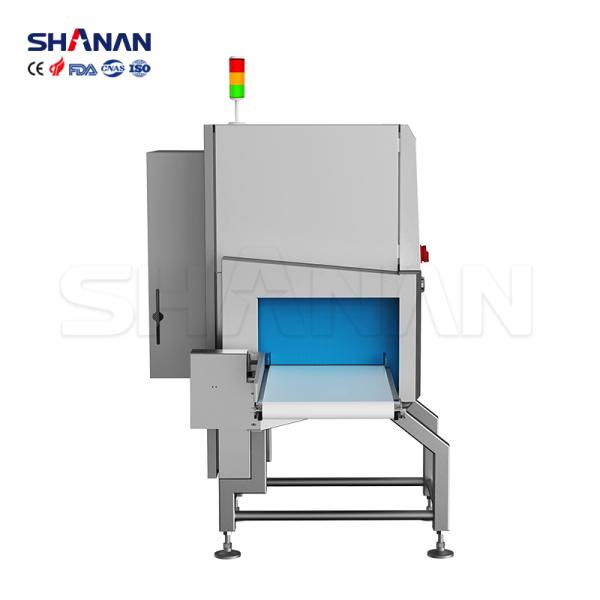

Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Wet Food Safety X-Ray Scanner
Specifications
Brand Name :
SHANAN
Model Number :
SAXR-4025
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Product name :
Food X-Ray Inspection machine
Optimum Inspection Sensitivity :
Stainless steel ball: Φ0.3mm, Stainless steel wire: Φ0.2*2 mm, Ceramic ball: Φ1.0mm, Glass: Φ1.0mm
Inspection Tunnel Size Parameters :
Maximum height: 250mm
Conveyor speed :
5-60 m/min
Load capacity :
10Kg or customized
Rejector Mode :
Sound and light alarm, belt stops (Rejector optional)
X-ray leak :
<1μSvh (CE Standard)
Detector Type :
Linear scan
Protection Level :
IP67
Monitor :
17'' full-color TFT touch screen
Operation method :
Touch screen operation
Operation System :
Linux (Core 4.10)
Support Data Interface :
USB
Parameter Settings :
Self-learning / manual adjustment
Body Material :
Food grade SUS 304/ SUS316
Conveyor Belt Material :
PU belt/ PVC belt
Air Conditioning :
Internal circulation industrial air conditioner, automatic temperature control
Protection Method :
Detachable protective curtain
Cleaning Method :
Tool-free removal of conveyor belt for easy cleaning
Power Supply :
AC110V/220/380V, 50/60Hz
Environmental Requirements :
Temperature: 0-45 ° C / humidity: 30-85% RH (no condensation)
Machine Weight :
360Kg
Description
Wet Food Safety X-Ray Scanner
Advanced X-Ray Inspection for Wet and Dry Pet Food Products
Pet food faces the same contamination risks as human food. Our x-ray inspection systems enhance product quality across all pet food types and packaging formats, including tins, boxes, pouches, bottles, and loose pet food.
Pet Food X-ray Applications
  • Ensure product conformity and completeness
  • Confirm accurate fill-levels (e.g., milk replacements for young animals)
  • Verify seals and lids are properly applied
  • Measure product mass for accurate weight of dry kibble
  • Identify foreign objects including metal, bone, glass, and certain plastics
Wet Food Safety X-Ray Scanner
X-ray vs Metal Detection for Pet Food
X-ray technology detects metal contaminants inside metal containers such as tins and trays. Shanan x-ray inspection systems provide superior sophistication, enabling multiple inspection functions within one machine while detecting contaminants like glass and stone that metal detectors cannot identify.
Shanan X-ray System Advantages
  • Unrivalled speed, sensitivity, and detection sophistication
  • Adaptable ergonomic design
  • Automatic calibration and set-up
  • User-friendly interface and controls
  • Designed for quick and easy wash-down
  • Hygienic design meeting FMSA standards
  • Multiple reject options for production line integration
  • Customized x-ray inspection solutions for unique requirements
Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner Wet Food Safety X-Ray Scanner
Advanced Detection Technology
Our systems deliver high detection accuracy comparable to international brands with easy operator setup capabilities.
  • Automatic learning process handles complex products without technician intervention
  • Dynamic feature recognition automatically selects optimal algorithm parameters for maximum sensitivity
  • Self-learning completes with just 10 images and 20-second model training
Reliability Through Technical Design
  • Industry-first server-level Linux system ensures stability and virus immunity
  • Fully sealed design for humid environments with double-layer thermal cycle for high temperatures
  • Anti-condensation design for temperature differential environments
  • High-end components ensure stable operation in harsh conditions
User-Centric Operation Features
  • IP66 protection rating enables direct washing of detection channel
  • X-ray leakage meets US standards with safety monitoring function
  • Modular design allows production line upgrades without host replacement
  • 5-second belt disassembly for convenient on-site cleaning
  • Automatic saving and export of product configurations and inspection images
