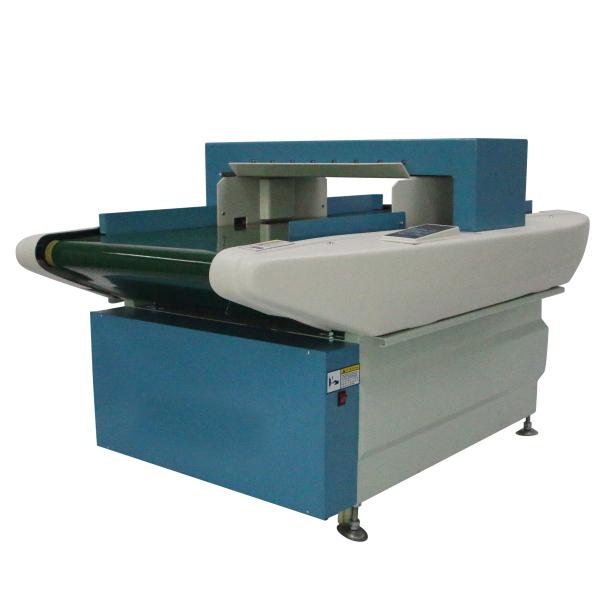

Digital Broken Sewing Needle Metal Detector For Shoes Textile Industry
Digital Broken Sewing Needle Metal Detector For Shoes Textile Industry
Digital Broken Sewing Needle Metal Detector For Shoes Textile Industry
Digital Broken Sewing Needle Metal Detector For Shoes Textile Industry
Specifications
Brand Name :
SHANAN
Model Number :
VFG-600k
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Apllication :
Digital Broken needle risk inspection
Detection method :
Magnetic induction.digital process
Detection adjustment :
level 1-12 adjustable
Alarm method :
Sound/light alarm
Pated consume :
140W
Tunnel size :
600*200mm
Warranty :
2 years
Certificate :
CE,ISO
Sensitivity :
0.8 mm
Description

About Shanan.pdf

Technical details:

Name Needle detector
Model VFG-600K
Detection tunnel size Width: 600mm height: 150mm
Tunnel type Horizontal
Detection ability Ferrous, magnetic metals and broken needles
Speed of conveyor belt 20m/min ( Other speed optional, adjustable speed optional)
Metal detector total length 1650mm (Other optional)
Operation language English (Other languages optional)
Conveyor belt Green color PVC
Height from floor to conveyor belt 700+-50 mm (Other optional)
Rejection system Buzzer alarms and belt stops / Buzzer alarms and return back
Power Supply 220V 50Hz(Other optional)
Frame material Carbon steel
Ingress rating IP54
HS code 9031809090


Applied industries:


Garments, Fabrics, Apparels, Textiles, Cloths, Shoes, Suits, Trousers, Socks,etc.

Product function:


Identifying whether there are any undesirable metallic substances and broken needles left-over or embedded in the garment and accessories in manufacturing and sewing process.


Features:


1. 32 bit digital computer chipes with latest workmanship and technology
2.Auto shutdown energy saving mode after no detection for more than 10 minutes
3. 8 points positioning technology enabling to find out specific location of borken needles
4. Counting function for a better production management
5. Excellent anti-interference design with good detection stability
6. Printing function for production management

Technical parameter:

Inspection width Inspection height Inspection standard Volume/mm Approx weight Power Voltage
400mm 120mm Fe≥Φ0.8mm 1580*980*890 180kg 60W AC220V/50HZ
160mm Fe≥Φ1.0mm 1580*980*930
190mm Fe≥Φ1.2mm 1580*980*960
230mm Fe≥Φ1.5mm 1580*980*1000

Inspection width Inspection height Inspection standard Volume/mm Approx weight Power Voltage
600mm 120mm Fe≥Φ0.8mm 1580*980*890 180kg 60W AC220V/50HZ
160mm Fe≥Φ1.0mm 1580*980*930
190mm Fe≥Φ1.2mm 1580*980*960
230mm Fe≥Φ1.5mm 1580*980*1000

P.S. The inspection width and height can be customized.
