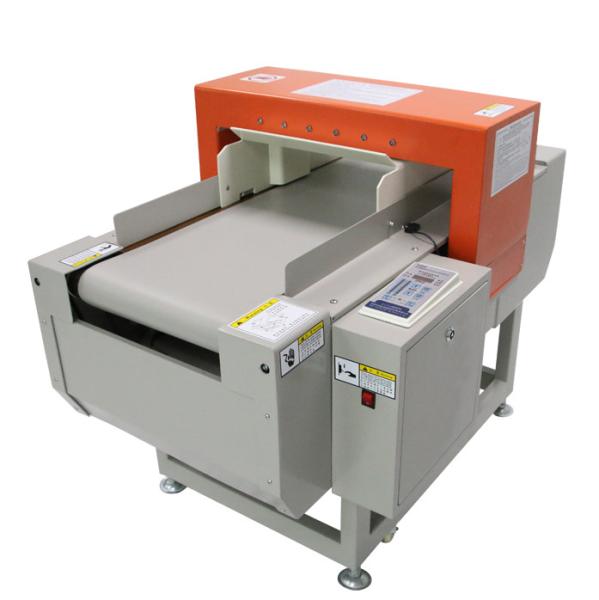

Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Factory Supply Stainless Steel Frame Food Needle Metal Detector Machine
Specifications
Brand Name :
SHANAN
Model Number :
VF-03
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Usage :
detect metallic contaminant
Sensitivity :
Adjustable
Description

Scope of application: food, pharmaceutical, chemical, rubber, ice, ice products, toys, eyewear, shoes, leather, knitting, printing and other industries to detect the metal impurities in the production process or raw materials, such as: iron, non-magnetic metal Items ( silver, steel, aluminum, stainless steel and other non-ferrous metals can be detected), improve product safety factor and reduce hazards.

Product features and advantages:

Advanced technology: the introduction of imported multi-detection technology, phase and comprehensive, product and automatic balance correction technology, the detection sensitivity and stability have been improved, the detection range is wider, especially for salt, high moisture content is difficult to detect The product has 2-3 times better detection sensitivity than similar products.

The core circuit adopts a single-chip high-performance FPGA hardware solution, using imported high-quality electronic components; [mainly selected by the United States Micro-chip, Analog Device, National Semiconductor, Wimma, Japan Hitachi, NEC, Sanyo and other companies to produce integrated circuits, capacitors, etc. Electronic components] After advanced processing technology and standardized inspection process, the product has high sensitivity and stable

Parameter:

Pass width (mm) 600 Custom non-standard
Pass height (mm) 80 120 150 180 200 250 300 350 400
Standard detection sensitivity FE(Φmm) 0.5 0.6 0.7 0.8 1.0 1.2 1.5 2.0 2.5
NON-FE(Φmm) 0.8 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0
SUS304(Φmm) 1.0 1.2 1.5 2.0 2.5 3.0 3.5 4.0 4.5
Belt width(mm) 370 370 370 370 470 470 470 470 470
Conveyor length(mm) 1330 1330 1330 1330 1700 1700 1700 1700 1700
Height of from the belt to ground(mm) 650±50 can be customized
Protection level IP66
Number of memory products 100kinds
Display method LED D (or custom touch screen)
Operation method Touch key input (touch optional)
Material of conveyor belt Food grade plate chain
Alarm method alarm shutdown, buzzer alarm or rejection mechanism optional
Belt speed 28m / min constant (variable speeds for different varieties, if you need to adjust the speed, you can customize the frequency conversion)
Machine material The whole rack is made of SUS304 food grade stainless steel, which complies with HACCP, GMP, CAS and other standards
Mechanical size (mm) 1330 × 980× 1100 (length × width × height) non-standard can be customized
Machine weight About 300KG
