Specifications
Brand Name :
SHANAN
Model Number :
SAXR-4025
Certification :
CE, ISO
Place of Origin :
CHINA
MOQ :
1 set
Price :
negotiation
Payment Terms :
T/T
Supply Ability :
100 set/month
Delivery Time :
15work days
Packaging Details :
Box
Material :
ABS plastic and SUS
Warranty :
1 year
Properties :
Medical X-ray Equipments & Accessories,Medical-Ray Protective Products
Instrument classification :
Class II,Class I,Class III
Tube voltage :
70KV,60kVp,70kV(fixed),40-90kV
Description
Safeline X-Ray Inspection Systems
Download Product Brochure (PDF)

The XIS-3500D X-ray inspection system is widely used for detecting foreign objects in food,, beverages, and other products. It can identify contaminants including metal, stone, glass, bone, and rubber. The system also provides multi-point miss detection, shielding segmentation detection, liquid level height detection, high-speed rejection detection, remote control, and integrated real-time management capabilities.

XIS-3500D X-Ray Inspection System with φ0.2mm Detection Accuracy 385mm Maximum Width and Touch Screen Operation
XIS-3500D X-Ray Inspection System with φ0.2mm Detection Accuracy 385mm Maximum Width and Touch Screen Operation
Technical Specifications
Model XIS-3500D
Optimum Detection Accuracy Lead: φ0.2mm, Stainless Steel Ball: φ0.4mm, Ceramic Ball: φ0.8mm, Bone: φ0.8mm, Glass: φ1.0mm
Detection Size Parameters Maximum Width: 385mm
Maximum Detection Height: 285mm
Conveying Bandwidth 410mm
Conveyor Belt Height 850±30mm from ground
Conveyor Speed 10-120 Meters/minute
Load Capacity 10Kg
X-ray Output 40-80kVp/0.2-5mA
X-ray Leakage <1μSv/h
Detector Type Linear scan
Irradiation Direction Top-illuminated
Pixel Size 0.4mm
Monitor 15-inch D touch screen
Operation Method Touch screen operation
Software X-ray Inspection System


Data Interface USB
Parameter Settings Self-learning / manual adjustment
Case Material SUS304 Stainless Steel
Conveyor Belt Material PU belt
Air Conditioning Internal circulation industrial air conditioner, automatic temperature control
Protection Method Detachable protective curtain
Cleaning Method Tool-free removal of conveyor belt for easy cleaning
Power Supply AC220/230V, 50/60Hz
Environmental Requirements Temperature: 5-35°C / Humidity: 30-85% RH (no condensation)
Machine Dimensions 900×920×1825mm (Length × Width × Height)
Machine Weight 350Kg

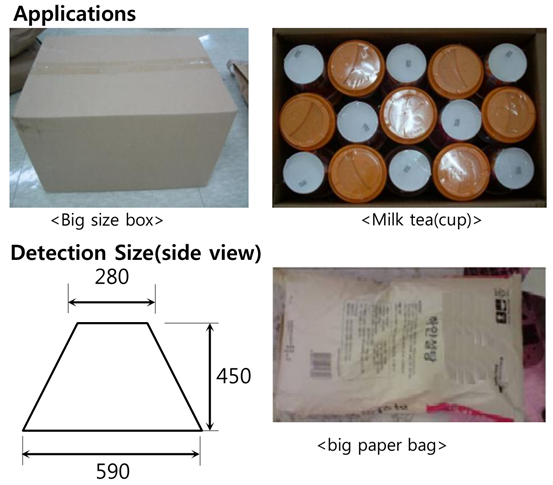

Product Applications
XIS-3500D X-Ray Inspection System with φ0.2mm Detection Accuracy 385mm Maximum Width and Touch Screen Operation
