Specifications
Brand Name :
MIKIM
Model Number :
DGP40,DGP60,DGP70,DGP80,DGP90,DGP100,DGP120,DGP135,DGP160,DGP200
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
$1500.00 - 9500.00/ Set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
300 sets per month
Delivery Time :
7-10 work days
Packaging Details :
packed by wooden export package or loading by container
Formula :
provide formula for free
Type Of Heating :
Electricity/steam
Screw Type :
single screw extruder
Machine Name :
dry dog food making machine
Operation Manual :
English version
Voltageacity :
380V50Hz
Capacity :
100-500 kg/h
Powersource :
Electric
Product Raw Material :
Wheat, rice, corn, defatted soy flour
Description
Model
Main motor (kw)
Feeder (KW)
Cutter(KW)
Capacity (kg/h)
Machine size (m)
Weight(kg)
DGP-40
5.5
0.4
0.4
40-50
1.36*1.3*0.8
320
DGP-60
15
0.4
0.4
120-150
1.36*1.33*0.86
420
DGP-70
18.5
0.4
0.4
200-250
1.36*1.33*0.86
550
DGP-80
22
1.5
0.55
300-350
2.3*1.7*1.4
720
DGP-90
30
1.5
0.55
400-450
2.3*1.7*1.4
1100
DGP-100
37
1.5
1.5
500
2*2.8*1.2
1500
DGP-120
55
1.5
1.5
600-700
2.2*2.9*1.2
1800
DGP-135
75
1.5
2.2
800-900
2.2*3.1*1.37
2000
DGP-160
90
2.2
2.2
1000-1200
2.3*3.15*1.38
2500
DGP-200
132
3
3
1800-2000
2.35*3.45*1.65
3200
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

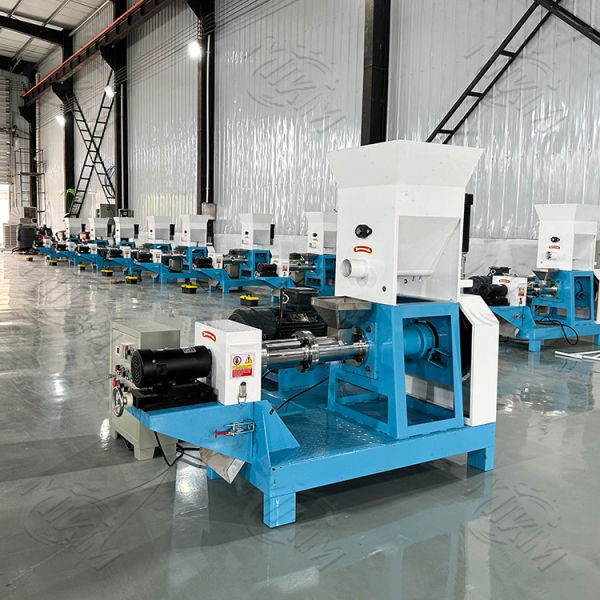

DRY-40　Extruder　Machine
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

Application scope:

The small floating fish feed processing machine can be used in feed manufacturers, aquaculture farmers, poultry farmers, pet feed factories, large pet breeding centers, etc.
A. The fish feed pellet manufacturing process, from raw materials crushing to finished　products packaging, an be finished at one time.
B. We can also customize different fish feed pellet plant depending on your raw material　sand specific requirements.
C. We have a professional design team to customize the appropriate supporting　production line according to your productivity.
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,TroutThese are our extruder customers. They are fond of the quality and advanced technology of our machines, and most of them purchase extruder production lines. We design production lines according to their production requirements.
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

WET & DRY EXTRUDER:

The dry method is to directly expand the raw materials into granules after crushing and mixing them. The wet method needs to be used with a steam boiler. A conditioner should also be installed on the extruder to connect it to the boiler through a pipeline.After the raw materials are crushed and mixed, they are first pre-cooked and tempered by the conditioner and steam, and then extruded into granules by the extruder.

In comparison, the wet method has a higher output with the same power, and the material produced is slightly finer. However, the wet method needs to be used with a steam boiler,and the production process is relatively complicated.
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout
Using various cereals, grains, shrimp meal, fish meal, flour, etc. as raw materials, they can be combined with each other to make the feed more suitable for different species of animals and more nutritious.
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout
This small floating fish feed pellet extruder mill can produce floating fish feed, sinking fish feed, shrimp feed, amphibian feed, cat food, dog food and other extruded products. It is suitable for various feed manufacturers and aquaculture industry.
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

Production Category:

Cat food, dog food, floating feed, sinking feed, fish food, bird food, piglet food, etc.
1-20mm pellets,ｗe have molds of various shapes, which can be customized and selected according to the shape and diameter you need, and used in a variety of different industrial products．
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

Process and advantages:

For fish and shrimp feed pellet, the floating time in water can be adjusted by the extrusion degree adjustment.The technological parameter, such as raw materials,temperature, and moisture, of this fish feed production plant is adjustable.
The floating fish feed pellets can float 48 hours. So we can easily find whether the fish feed is eaten by　the fish or not.After the extruding of our machine, the fish feed pellets change into "popcorn type", it highly approve the nutrition and the use ratio of the raw materials,advance the protein content,the harmful bacterium are killed by the high tempera-ture when extruded,so the fish will not get ill after eat such fish feed.
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

Advantage:

1.The harmful bacterium are killed by the high temperature when extruded.
2.High temperature and high pressure effective in killing Escherichia coli harmful bacteria such as salmonella.
3.Highly approves the nutrition and the use ratio of the raw materials, advance the protein content.
4.A cooling oil circulation system is added to reduce the temperature inside the bearing box. Reduce damage rate.
5.The extrusion pressure can reach 3.0-10Mpa and the temperature can reach 120-150 degrees Celsius.

China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout
Company Profile
China Low Cost Small Screw Pressing Floating Fish Tilapia Shrimp Catfish Feed Pellet Making Machine for Squeezing Shrimp,Catfish,Trout

Tianjin Mikim Technique Co.,Ltd.

Mikim Machinery is a high-tech enterprise integrating scientific research, design, man-ufacture,installation and commissioning, andafter-sales service.35 years have been dedicated to the design and production of the feed machinery in-dustry, which has passed many certificates such as CE, ISO, etc.Now we are mainly engaged in two fields: feed pellet machine production ine (ham-mer mill-mixer-conveyor-feed pellet ma.chine-cooling&vibration system-pa.cking andsealing) and feed extruder production line (mixer-twin screw extruder machine-dry-er-drum seasoning machine-cooling towers-packing machine),We produce high quali-ty and low price equipment, exported to all over the world, enjoy a good reputation,and perect after-sales service system can help customers solve all the problems.
