Specifications
Brand Name :
MIKIM
Model Number :
65,70,75,85,95,120,136
Certification :
CE
Place of Origin :
China
MOQ :
1 Set
Price :
$3500.00 - 55000.00/ Set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
300 sets per month
Delivery Time :
7-10 work days
Packaging Details :
packed by wooden export package or loading by container
Heatiang Source :
electricity
Application :
Pet Food Production
The Color :
silver
Control System :
PLC Touch Screen
Products :
Dog food, cat food, birds food
Description
High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine
Floating Fish Feed Pellet Line Process
No. Process Machine Description
1 Crushing Crusher/Hammer mill To crush the raw materials such as grains into flour/powder
2 Mixing Mixer To mix different flour materials together and evenly
3 Extruding and pelleting Fish Feed Extruder To make fish feed pellet, the material is processed by high temperature and pressure and pelletized into round pellets, suitable for feeding fish, we could produce both floating fish feed and sinking fish feed.
4 Drying Dryer To dry the fish feed pellets coming from the extruder
5 Cooling Contraflow Cooler To cool the fish feed pellets, the fish feed pellets could be stored for a long time.
6 Flavoring Rotary flavoring machine To seasoning the fish feed, spray oil and other liquid additives on the surface of fish feed pellets, make the feed more delicious.
7 Packaging Automatic Packaging machine To pack fish feed pellets into bags, easy for store, transportation and for sale in the market.

Floating fish food processing line main processes:

Crushing process → Mixing process → Extruding process → Drying and oil spraying Process → Cooling process → Packing Process

Raw Materials for Feed Production

The feed pellets are usually made of corn, brown rice, paddy, sorghum and soybean meal, fish meal, bone meal etc.

Material Cleaning Sieving and Accepting Process

By receiving materials, our plant use granule cleaner and flour cleaner to clean the dust and other debris, then magnetic cylinder clean the irons and metal in the materials. After cleaned, materials be sent to next process.

High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine
Raw Material Grinding Process

General-purpose products, stable performance, widely used in large and medium-sized feed, food processing enterprises of raw materials crushed.

  • The machine uses direct drive, scientific and reasonable hammer arrangement, hammer sieve clearance, finished fineness uniform.
  • Crushing chamber second strike technology.
  • Selection of imported high-quality bearings, low operating temperature.
  • A variety of screen size optional, quick open door mechanical and elastic pressure screen mechanism, for screen fast, easy operation and maintenance.
  • NSK bearings, SKF bearing, tungsten bide alloy spray hammer. Bearing temperature display instrument.
Feed Material Auto Batching and Mixing Process

Dosing/Batching designs formulations according to the nutritional needs of different animals, using specific device to accurately weigh the various ingredients. Mixing is an operation in which various feed ingredients are metered and blended under external forces to form a uniform distribution.

This process adopts two batching scale and a number of batching bins, of which the micro ingredients are manually added equipped with check weigher. After batching of material ingredients is completed, then enter into the mixer for mixing, and finally the material is output through the conveyor and elevator.

Extruding Process
  • Selection of imported high-quality bearings, oil seals, to ensure that the machine running efficient, stable, low noise.
  • Feeder made of stainless steel, by using frequency control motor to ensure that the quality of particles discharged.
  • Single Conditioner or double conditioners can be choosed, made of stainless steel, to precook raw materials before extruding.
  • The international advanced level of compensation type serpentine spring coupling, with a new structure, compact, safe, low noise, low fault performance.
  • Die mold is made of wear-resistance alloy steel, gear box gear oil automatic cooling system.
Feed Drying and Oil Spraying Process

Feed Drying process

  • Box structure, Freely combine lengths according to output requirements, and reserve room for capacity improvement.
  • Low energy consumption, high quality proportional valve adjusts the steam flow, PLC automatic temperature control system.
  • Built-in hot air circulation system, good hot air penetration.
  • The cabinet is designed with full insulation, which saves energy and optimizes the working environment.
  • 8-tooth sprocket, square tube bracket, frequency conversion drive, stable and reliable operation.
  • High quality PET fiber mesh belt with high temperature resistance, small shrinkage, high air permeability, and good moisture uniformity.

Oil Spraying Process

  • Adopted excellent after-adding technology to add fats, oil, enzymes, vitamins, organic acids, microbial and other nutrients, and drugs to the furface of pellets.
  • Rotary coating, even spraying, the coating amount is controlled by the computer, programmable control via touching the screen makes more accurate measurement.
  • The final products after coating are more nutritionally balanced, more attractant and disease resistant.
  • Spraying evenly rate: 96%, spraying ratio: 2%-20%.

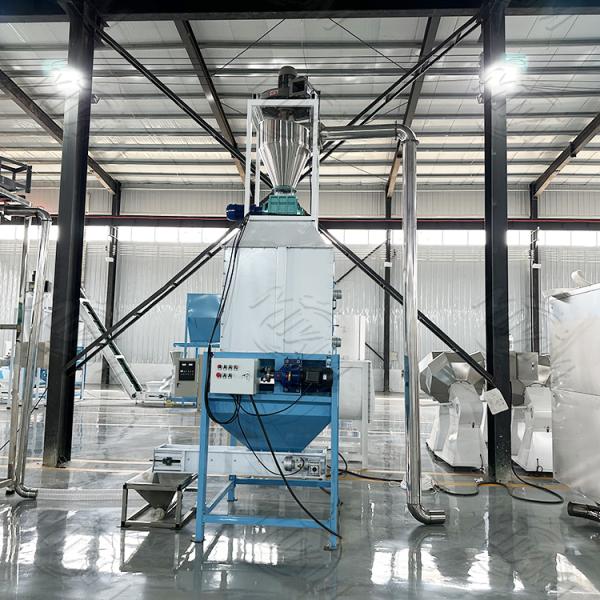

Feed Pellet Cooling Process
  • The latest octagonal cooling box design, no cooling dead ends.
  • The use of closed feeder feed, into the air area, cooling effect is significant.
  • Discharging material evenly and evenly stacked in the cabin.
  • The use of slide valve reciprocating discharge mechanism, the movement is smooth, reliable, with small residues.
  • Low energy consumption, easy operation.
  • After cooling the finished product temperature is not higher than room temperature+3 ºC ~ 5 ºC, suitable for the cooling of granular materials.
High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine
Main Technical Parameters
Model (Electric) Capacity (kg/h) Motor Power Cutting Blade Power Cutting Power
65 150-200 22KW 1.5KW 2.2KW
70 250-300 30KW 1.5KW 2.2KW
75 300-350 37KW 1.5KW 2.2KW
85 600-800 75KW 2.2KW 3.0KW

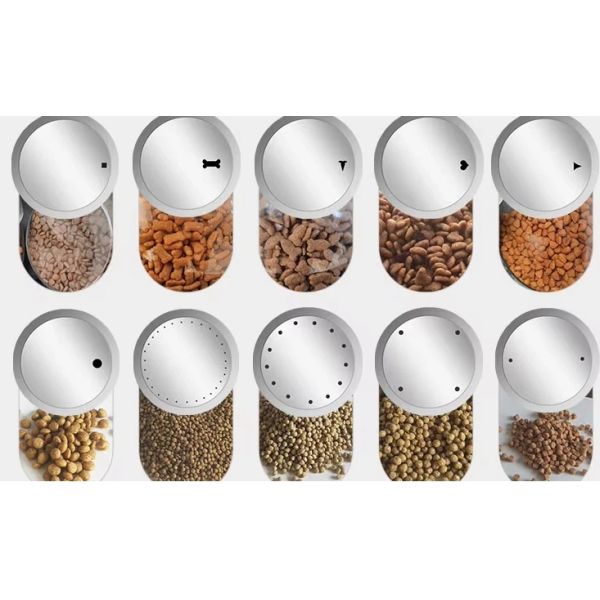

Final Product Display
High Output Manufacturing Pet Dry Dog Food Production Line Extruder Floating Fish Feed Pellet Making Processing Machine
Our Services
  • We will give detailed introduction of the Wet type advanced design Fish food extruder making machine according to the client capacity requirement.
  • Share any information about the Fish food extruder making machine that the clients need, like detaield pictures, video, etc.
  • Design floating fish food extruding line for client.
  • Help the clients to do suitable floating fish feed formulation.
  • Give detailed instruction manual and video to help the client operate the Fish food extruder making machine.

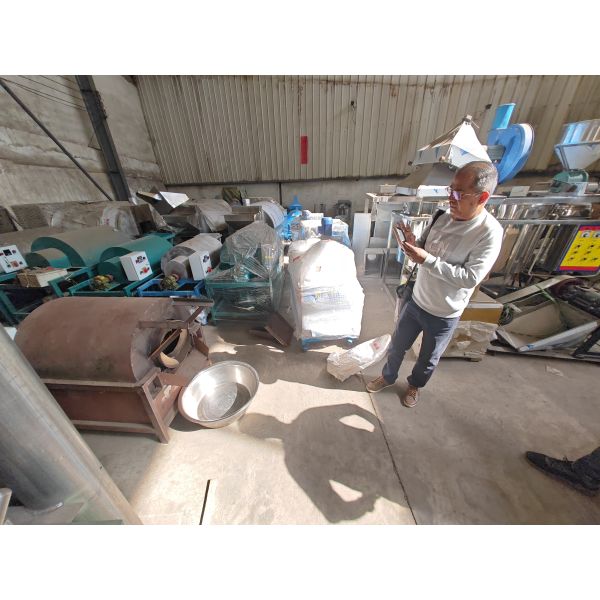

Customer Visits
