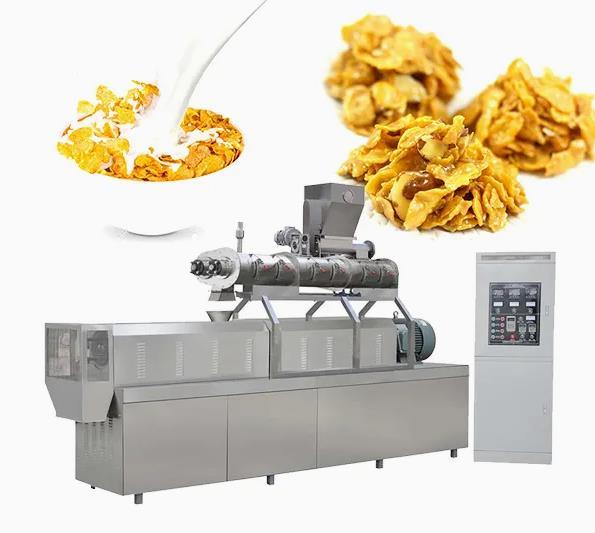

Continuous and automatic Corn Flakes Processing Line with CE Standard

1. Description

It is mainly made from corn powder and form very cute ring shape after extrusion. It is a new choice for your breakfast after mixing with milk. Designed as a kind of breakfast cereal, it is crunchy taste and water resisting property make you have something in mouth for chewing, but not hard. To make cute rings, our company has three types production lines by capacity 150kg/hr, 240kg/hr and 500kg/hr.

a. Raw materials: adopts corn flour as raw materials

b. Products: This line can be used to produce corn flakes

c. Capacity: 150kg/h, 260kg/h for corn flakes; 150kg/h, 260kg/h and 500kg/h for breakfast cereal

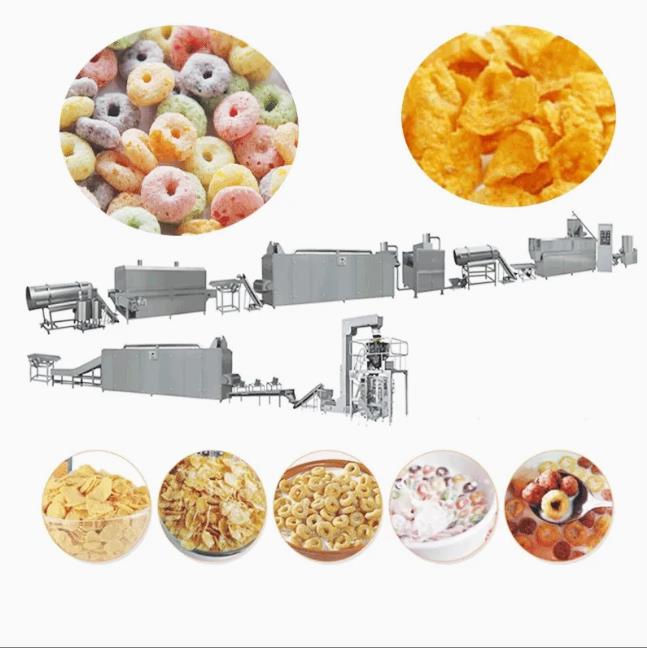

d. Flow chart: Mixing system---Extrusion system---Cooling system---Flaking system---Drying system---Toasted system---Sugar Spraying system---Drying system--- Packing system

e. Voltage in China: Three phases: 380V/50Hz, Single phase: 220V/50Hz, we can make it according to customers’ Local voltage according to different countries

f. Machines Materials: All the machines are made by stainless steel, this line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function

2 .Features of Our Twin Screw Extruder

a. The screws are made by alloy steel (38CrMoAL) and special craft by nitriding process, The HRC hardness is around 60---62, it has good self-cleaning ability and does not need to discharge or clean the barrel and screw, when roasting or replacing of materials.

b. The extrusion barrel is constructed of bon steel, is made by #45 steel, stainless steel coating.

c. The gearbox has automatic lubrication function, with extends gear life.

d. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.

3. Strong Fumigation-Free Cases For 20' GP & 40' HQ

Packed by standard wooden case outside and wrapped by plastic film inside then shipped by container.

4. High Reputation Among Our Customers

At present, Our Company locks in 70% market share in China, and our products have been selling well to more than 90 countries like Germany, Australia, Ukraine, Malaysia, Indonesia, Philippine, Thailand, Romania, South America, Middle East, Africa and other countries or regions.

We hope to establish good and long term friendly business relationship with more clients all over the world in the future.

MIKIM Machinery has its own manufacturing plants workshops in China, business scope covering mainly machinery and equipment for corn meal milling system, corn flakes & breakfast cereal system, baby food system, corn puff snacks system, pellets system, artificial rice system, soy nuggets system; as well as pet food/fish food system.
Machinery engages in the technical research of extrusion foodstuff, in order to let our clients have superior foodstuffs to sell in the market. We can improve client's equipment and provide related training on new advanced technique. We can also make special designs for special products and materials according to clients' special requirements.

6. Our Service

1. Free consultation service before, during, and after sales;

2. Free project planning and design services;

3. Free installation and commissioning of equipment until everything is functional;

4. Free management of equipment's long distance shipping;

5. Free training of equipment maintenance and operating personally;

6. Free new production techniques and formulas;

7. Provide 1 year complete warrantee and life-time maintenance service;

8. Engineers available to service machinery overseas.

9. Provide technical exchanging

10. Provide English Version of Installation/Operation/Service/Maintenance Manual
