Corn , Rice , Wheat Puff Extruder Machine / Equipment for cheese ball

1. Description:

snack food making machine use cereal flour through friction of screw,barrel with high

temperature and high press extruder .

finally get corn puffed snacks,cheese ball , get different shapes puff snacks only change dies.

2. Ingredients :

corn flour, rice flour, wheat flour, other cereals powder etc.

3. Products:

Puffed snacks samples & corn cheese snacks

4. Capacity:

100-200kg/h, 200-260kg/h, 300-500kg/h,800-1000kg/h,1200kg/h,2000-3000kg/h.

5. Flow chart:

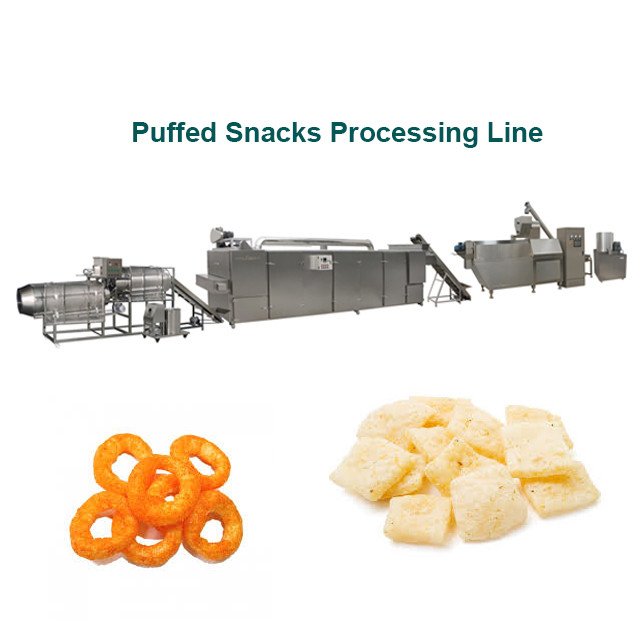

Mixer→ screw conveyor→extruder→air conveyor→oven→flavoring machine→packing machine

6. Voltage in China

Three phases: 380V/50Hz, Single phase: 220V/50Hz,

we can make it according to customers’ Local voltage according to different countries

7: Materials

Stainless steel looks

8.Technical Parameters

1. The screw is made of alloy (38CrMoAL) by nitriding process, high strength and wear-resting. And it has good self-cleaning ability and does not need to discharge or
clean the barrel and screw, when roasting or replacing of materials.
2. The extrusion barrel is constructed of bon steel, is made by #45 steel, stainless steel coating.
3. Radiator is increased on driving part for forced cooling effect, and it ensures extruder operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5.The gearbox has automatic lubrication function, with extends gear life.
6. Main Motor from (CHINA), ensure its Powerful Extrusion and Excellent Performance.

Why You Must Choose Us


1. Big Capacity Feeding Hopper, Variable Frequency Speed, Two Stages Mixing Wings ensure the Fast and Efficient Mixing and Feeding.
2. Double Axis Differential Conditioner, Available for Steam, Pre-cooking and High Efficient.
3. Linear Slide Face Cutting System, Strong Power, Variable Frequency Speed and Large Output,
4. Unique Designed Square Barrels, Made by Hard bide Sleeve, Hard-wearing and Durable.
5. Modular Circular Groove Screws, available for Different Extrusion Rate Applications.
6. Steam Heating System, ensure the Most Efficient, Continuous and Stable Heating Effects.
7. World-famous Brands Electronic Apparatus used in the Controller Box, make sure the Extrusion Process Perfect.
8. Main Motor from (CHINA), 90KW, ensure its Powerful Extrusion and Excellent Performance.

Quick Details
Condition: New
Place of Origin: China (Mainland)
Brand Name: MIKIM
Model Number: MK65/MK70/MK85
Application: snack food / nutrition food/food
Power(W):30-150 kw
Dimension(L*W*H): 21000x1200x2200mm
Certification: CE/ISO9001
After-sales Service Provided: Engineers available to service machinery overseas
Packaging & Delivery
Packaging Details: Suitable for export wooden box
Delivery Detail: About 35 days after receiving the down payment
