Specifications
Brand Name :
Mikim
Model Number :
MK-65
Certification :
CE/ISO9001
Place of Origin :
CHINA
MOQ :
1 set
Supply Ability :
50 set/year
Delivery Time :
40 working days
Packaging Details :
wooden case
Name :
Extruded Corn Puff Snack Processing Machinery
Dimension(L*W*H) :
23 x 5 x 3m
Guarantee :
12 months
After-sales service :
Full life
Material :
Stainless Steel 304
Features :
Continuous & Automatic
Recipe & Formula :
Provide free of charge
Description

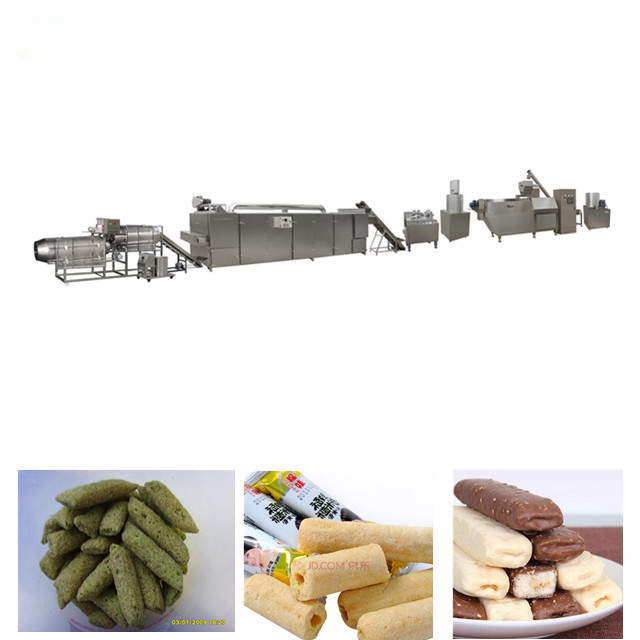

Full Automatic Puff Extruder Machine , Snack food processing line

1.Short Description

MK-70 Puff Snacks Extruding Line can produce all kinds of extrusion products, such as snacks and breakfast cereal, etc. The raw materials can be maize, rice or wheat flour, etc. The performance and quality of Snacks Processing Line reaches the highest international level in its field. From feeding materials, extruding & inflating, core filling, shaping, roasting, cutting, oil spraying to finished products are done once time automatic. Extruder control is based on a programmable computer system which adjusts for optimal parameters according to different recipes, water content, pressure and temperature, allowing for simpler more dependable processing.

2.Standard configurations

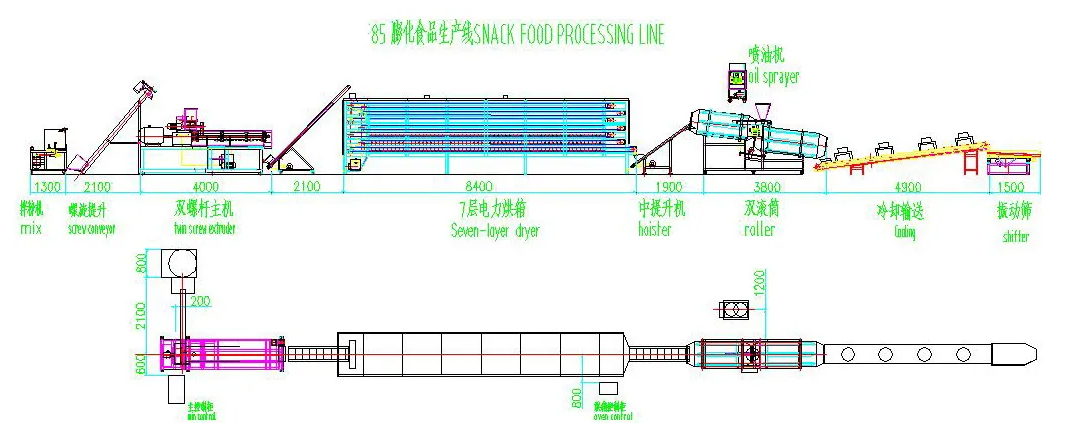

Mixer→ Screw conveyor → Twin screw extruder→ Air conveyor(Hoister)→ Electric dryer → Hoister → Oil Sprayer→ Flavoring roller(drum) → Cooling conveyor

3.Technical Parameters

twin-screw extruder model option for customers to choose

Model Installed power Power Consumption Output Size
MK-65 74kw 52kw 100-150kg/h 17*1.3*2.2m
MK-70 105kw 75kw 200-260kg/h 20*1.5*2.2m
MK-85 205kw 150kw 350-500jg/h 30*1.5*2.6m

Extruded Corn Puff Snack Processing Machinery/Cheese Ball Making Machine

1.

The screw is made of alloy (38CrMoAL) by nitriding process, high strength and
wear-resting. And it has good self-cleaning ability and does not need to discharge or
clean the barrel and screw, when roasting or replacing of materials.
2.

The extrusion barrel is constructed of bon steel, is made by #45 steel, stainless steel
coating.
3.

Radiator is increased on driving part for forced cooling effect, and it ensures extruder
operate safely.
4. Cutting knife fixed in the die head seat, rotary cutting by V-belt drive.
5. The gearbox has automatic lubrication function, with extends gear life.
6.

Main Motor from (CHINA), ensure its Powerful Extrusion and Excellent
Performance.


Various products can be produced by the above machines

(1) Different shapes: Round ball, Circle ring, Bear, Star, Half moon, Curls, Flower, and Triangle, and so on.

(2) Method to change the shape: We will design the specific shape which you want to produce accordingly.

Commissioning Service

1. We make accurate factory layout design according to customer’s factory size; if the customer needed, we could make workshop design with electricity power, water supply, gas power, material storage, final storages, worker’s restroom, etc.
2. After receiving confirm order and down payment, we start to apply for the Visa to your country immediately; while the machines arrives your factory, our engineers are ready to start for the commissioning service.
3.
1-2 of our engineers will go to your factory to install and adjust the processing line to realize normal production at shortest time.
4. Our engineers have responsibility to teach the workers how to operate, clean, maintain and repair all the machines, until the workers could well operate the processing line..
5. Our engineers can provide basic formula for the production, and help the customer to produce good quality food according customer’s detailed formula.
6. It normally costs 10-14 days for the commissioning service, and we supply 1 year guarantee from the date of completion of commissioning service.


Extruded Corn Puff Snack Processing Machinery/Cheese Ball Making Machine

Extruded Corn Puff Snack Processing Machinery/Cheese Ball Making Machine
