Specifications
Brand Name :
Mikim
Model Number :
MK-20T
Certification :
CE Certificate
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
99setsper year
Delivery Time :
45darys
Packaging Details :
We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.
Power(W) :
89kw
Weight :
2000KG
Dimension(L*W*H) :
8.9 x 2.3 x 2.8m
Commissioning Service :
Provided
Extrusion :
Stainless steel 304
Description


Rawhide Pet Bone Pressing Machine with ISO9001 is type of Flour Column and Three Board, the upmost output tonnage is 20t.

It can be adjusted amon the range of 5t-20t according to the different products’procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

And the dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our MK-20T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

In addition, our MK-20T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

Features

Rawhide pressed bones making machine could produce pet chewing bone with cowhide, pigskin or sheepskin as material. It could press the material to be various shapes and sizes.

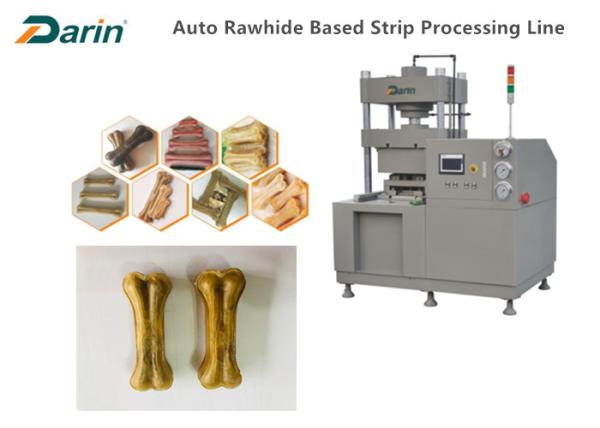

Machine Picture
Stainless Steel Pressed Rawhide Bones Machinery , Dog bone maker Machine


Technical Parameters

Project

MK-20T

Liquid Pressure of Work (MPa)

14-21

Theory Output (Ton)

5-20

Working surface size (mm)

Left and Right 500

Working surface size (mm)

Front and Back 400

Height of Working Table Off the Ground(MM)

780

Biggest Operational Height(mm)

400

Close(mm)

200

Cylinder Stroke(mm)

200

Motor Power

5.5KW

Structural Style

Flour Column Three Board

Above Oil Cylinder

Power source

380VAC,50/60Hz

Weight

1108kg

Dimension

600*500*1780mm


Stainless Steel Pressed Rawhide Bones Machinery , Dog bone maker Machine
