Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE
Specifications
Brand Name :
Mikim
Model Number :
MK-20T
Certification :
CE Certificate
Place of Origin :
CHINA
MOQ :
1 set
Price :
Negotiation
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
99setsper year
Delivery Time :
45days
Packaging Details :
We could supply Export Standard Wooden Case suitable for long trip and loading & unloading. If needed, the package should be extra paid.
Power(W) :
89
Weight :
2000KG
Dimension(L*W*H) :
8.9 x 2.3 x 2.8m
Commissioning Service :
Provided
Extrusion :
Stainless steel 304
Type :
Pressed Bone Machine
Electric device :
Famous Brand
Description

Rawhide Pet Bone Pressing Machine with ISO9001 is type of Flour Column and Three Board, the upmost output tonnage is 20t.

It can be adjusted amon the range of 5t-20t according to the different products’procedures, the purpose is to arrive the best required output. Cylinder Stroke is 200mm, (slide stroke is 200mm).

And the dimension of effective working surface is 500mm*400mm, the close height is 200mm. Well, our MK-20T Pressing Machine has two types, manual operation and automatic operation, meanwhile, it can count and timing automatically, safe and protective.

In addition, our MK-20T Pressing Machine’s middle plate and lower plate open two-article T-slot respectively, the pressure system is rear-mounted and the below equips with horizontal floor mat.

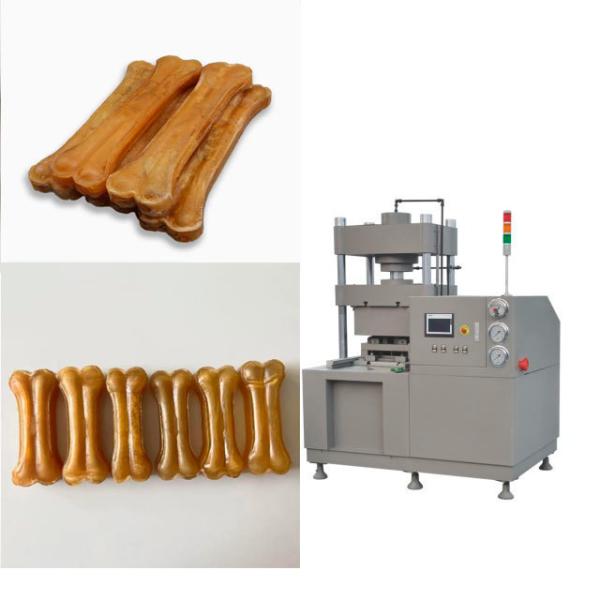

Machine Picture
Newly Designed PLC Hydraulic Pet Food Processing Equipment CE


Technical Parameters

Project

MK-20T

Liquid Pressure of Work (MPa)

14-21


Theory Output (Ton)

5-20


Working surface size (mm)

Left and Right 500

Working surface size (mm)

Front and Back 400

Height of Working Table Off the Ground(MM)

780

Biggest Operational Height(mm)

400

Close(mm)

200


Cylinder Stroke(mm)

200

Motor Power

5.5KW

Structural Style

Flour Column Three Board

Above Oil Cylinder


Power source

380VAC,50/60Hz

Weight

1108kg

Dimension

600*500*1780mm

Newly Designed PLC Hydraulic Pet Food Processing Equipment CE

Commissioning Service

a. Consultation service before, during, and after sales;
b. Project planning and design service;
c.Debugging of equipment until everything is functional;
d. Management of equipments' long distance shipping from seller's factory to the named place by buyer;
e.Training of equipment maintenance and operating personally;
f. New production techniques and formulas;

g. Provide 1 year complete warranty and life-time maintenance service.
