Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Specifications
Material :
SUS
Capacity :
200kg/hr.
Power :
43KW
Workers Needed :
2 WORKERS
1.Delivery Time: 45 working days :
45WORKING DAY
Certification :
ISO CE
Product Name :
Cold Extrusion Type Beef Stick Extruding Machine
Working way :
cold extrusion
Brand Name :
Mikim
Model Number :
MK126
Place of Origin :
CHINA
MOQ :
1 SET
Price :
USD 18000 /SET
Supply Ability :
10 set /per month
Packaging Details :
packs the machine with export standard fumigation wooden cases, which is strong ans suitable for long-distance and multi-times loading & unloading by forklift.
Delivery Time :
35-45 days
Description

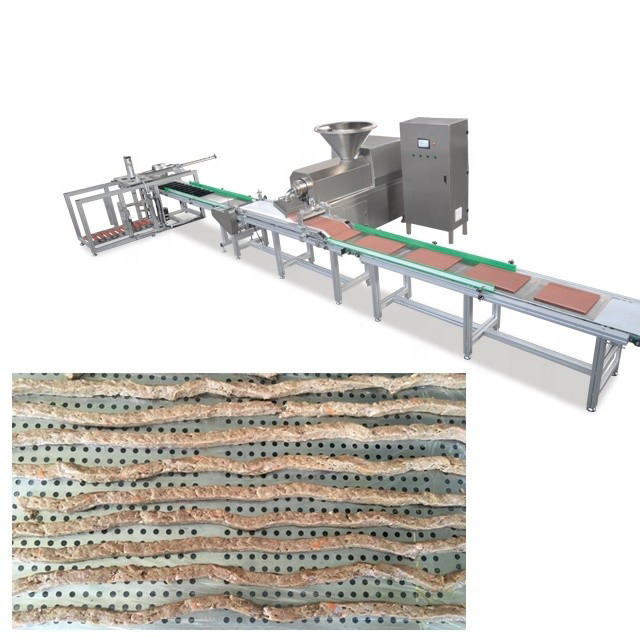

Cold Extrusion Type Beef Stick Extruding Machine

Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr

1. Auto traying system
Automatic tray system mainly is used for providing continuous individual tray to meat strip machine. To make products which produced by meat strip machine be cut according to tray’s dimension and automatically enter into tray, it is convenient for subsequent baking link . It can automatically pick and place tray through mechanical arm, equipped with tray store. With very high auotmation, can heavily save cost and manual labor intensity .Two layers belts design, meat strip comes on upper belt, and trays comes on nether belt. Top quality photoelectric sensors ensure meat strip and tray exactly matches each other, precisely length cutting control, labor saving, suitable for high standard meat strip producing. Whole system is composed by trays storage, trays picking up, trays conveying, auto cutter, etc.

2. Meat strip extruding machine

Auto Meat Machine is equipment for producing pet treats, suitable for pet food without casing directly baked meat and meat products, widely used in pet food article beef, article chicken, beef rod, chicken rod production and processing. The procedure includes: Forming meat strip - Cutting as required length - Loading meat strip by tray automatically - Drying to required moisture- Cooling meat strip.

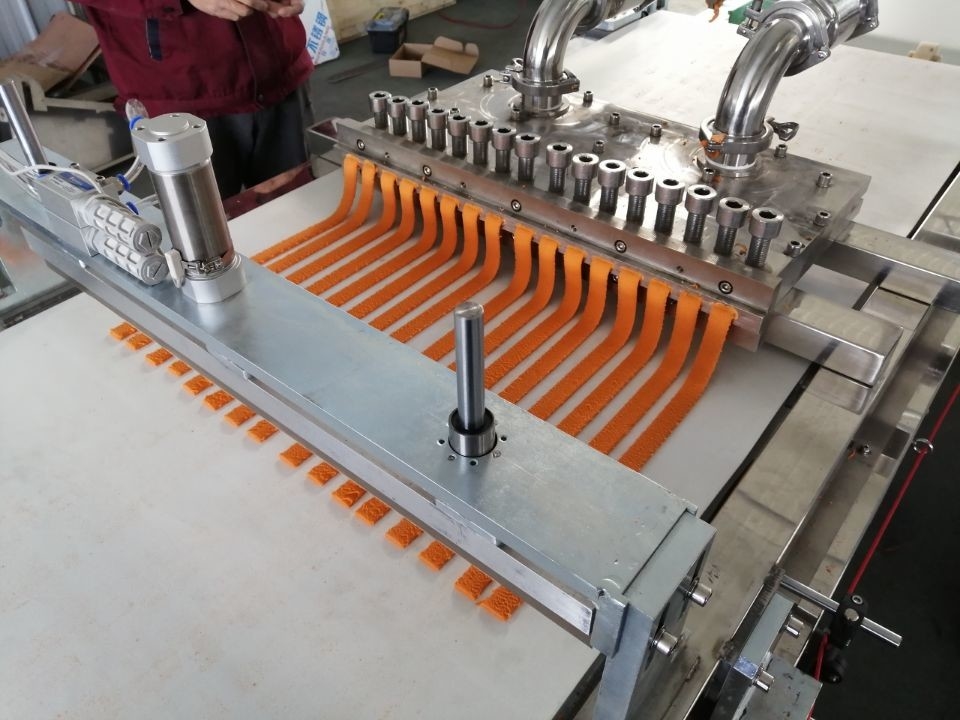

MK-126 meat strip extruding machine can extrude multi pieces of meat sticks. Different sizes and shapes can be made by changing the mold.Specially used to produce high content (max 100%) meat products.Patented design to produce meat strip with different shapes and sizes. motor, FATEK PLC, ABB or Schenider main electric parts.Stainless steel control cabinet, touch screen with friendly interface and fault display function.The screw adopts detachable structure, and has rust-proof treatment.The cylinder should be changed every 2-3 months. During production, cylinder pressure should be no more than 0.6Mpa.
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
Machine
Auto meat strip machine
Capacity
200-300kg/hr
Air source
0.5-0.8Mpa
Air Comsumption
90L/min
Quantity of Placing Tray One Time
30pcs
Weight
3000kg
Power
25 kw
Dimension
8630x3570x685mm

Machine pictures and parameter

For the meat sticks machine, the main parts is extruder, which use cold extrusion technology, no heating when do extruding.
Air source: 0.5-0.8 Mpa Air Comsumption: 90L/min Tray size (customized): 49x95cm Quantity of Placing Tray One Time: 20-30pcs (depends on tray thickness)
Extruder
Capacity: 200-300kg/hr Cylinder pressure: 0.4-0.5Mpa Power: 22kw Mold Surface Size: 700X325X80mm Dimension: 1200 x 1300 x 2000mm
Specification
item
value
Applicable Industries
Manufacturing Plant, Food & Beverage Factory
Showroom Location
Canada, Turkey, United States
Video outgoing-inspection
Provided
Machinery Test Report
Provided
Marketing Type
New Product
Warranty of core components
1 Year
Core Components
PLC, Engine, Motor
Condition
New
Place of Origin
SHN
Brand Name
Application
Dog
Voltage
380V 50Hz 3pha, customized
Power
25kw, as per capacity
Weight
2000KG
Dimension(L*W*H)
1200 x 1300 x 2000mm
Warranty
1 Year
Product name
Soft Treats Cold Extrusion Meat Strip Machine
Function
cold extrusion to make meat strips
Machine material
SS
Capacity
200kg/h
Motor
or Leadgo
Processing Types
Cold extrusion
Raw material
meat or powder
Mold Surface Size
700X325X80mm
Screw diameter
126mm
Screw Material
38crmoal
Cold Extrusion Type Beef Stick Extruding Pet Treat Machine 43KW 200kg/hr
