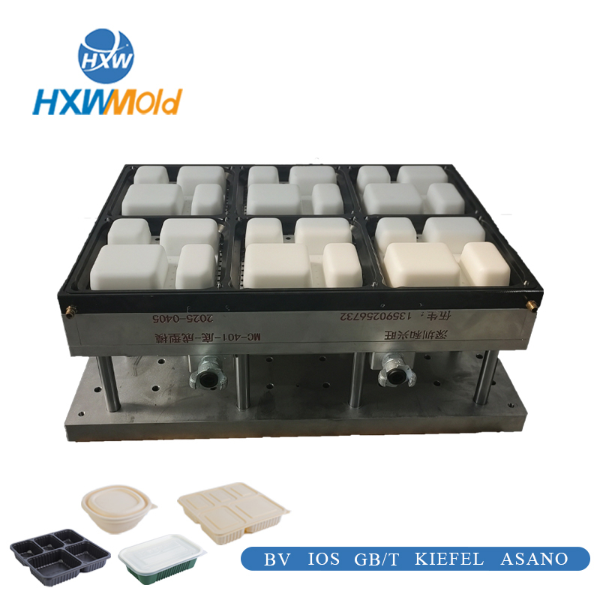

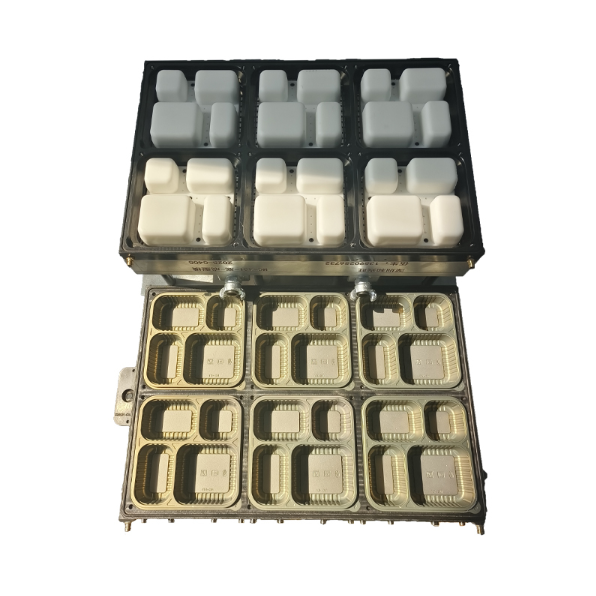

PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
Specifications
Surface treatment :
Polishing
Product Application :
Disposable lunch boxes, takeaway meal boxes and compartment food containers
Cutting Method :
Steel Rule Die Cutting
Lead Time :
About 5 Weeks After Deposit and Final Drawing Approval。
Forming Process :
positive-negative pressure forming
Sealing Feature :
Wide flat sealing flange
Service :
DFM, Mold Design, Manufacturing and In-House Trial。
Sheet Material :
PP
Surface Treatment :
Polishing / Mirror Polishing / Hard Anodizing / PTFE Coating / Sandblasting
Mold Type :
Lunch Box Thermoforming Mold
Stacking Method :
Mechanical down stacking
Mold Material :
6061 Aluminum; 7075 Available When Required。
Payment Terms :
60% T/T Deposit,40% Balance Before Shipment
Container Structure :
multi-compartment
Shaping Mode :
Positive‑Negative Pressure Thermoforming
Place of Origin :
Shenzhen, China
Brand Name :
HXW Mold
MOQ :
1 Set
Certification :
ISO 9001
Price :
Negotiable
Tolerance :
0.03mm -0.05mm, Depending on the Component。
Delivery Time :
Approximately 4–5 weeks after the deposit is paid and the final drawings are approved.
Packaging Details :
Export Plywood Case with Moisture-Proof Protection
Sheet Thickness :
As the customer's demand
Description

Product Overview

HXW Mold designs and manufactures custom thermoforming molds for lunch boxes, takeaway containers, compartment trays, bowls, and other rigid food packaging products.

Each mold is engineered around the required container design, sheet material, machine forming area, and production output. Forming, cutting, and stacking tooling can be supplied as a complete three-station solution.

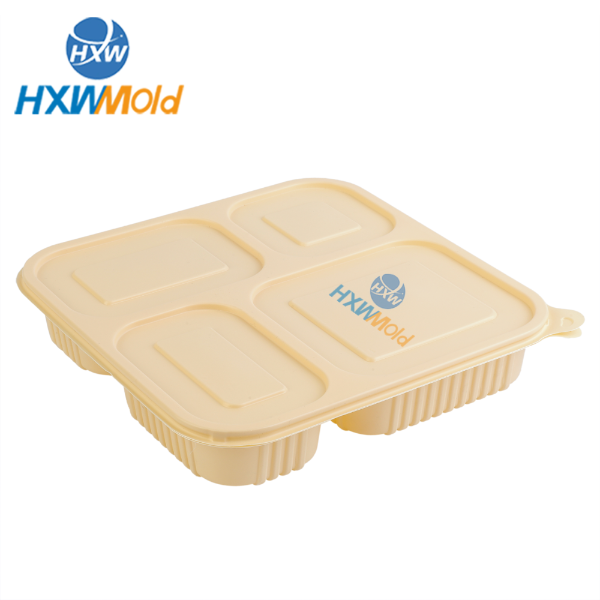

Product Types Hinged Boxes · Compartment Trays · Separate Base-and-Lid Sets
Sheet Materials PP · PET · PS
Tooling Scope Forming · Cutting · Stacking
Machine Compatibility Customized for Your Existing Production Line

Engineering Focus

Lunch box tooling requires coordinated control of closure fit, hinge performance, compartment geometry, flange sealing, wall-thickness distribution, and stacking behavior.

01
Closure and Hinge Performance

For hinged lunch boxes, the closure fit and hinge are engineered together to provide smooth opening, secure closing, and consistent performance.

02
Compartment Capacity

Each compartment is engineered to match the required product layout, volume distribution, and food-separation requirements.

03
Flange and Sealing Design

Depending on the packaging design, a flat flange can be developed for film sealing or for use with a matching lid.

04
Stacking and Separation

The stacking geometry is designed for stable nesting, reliable separation, and smooth automated handling. Trial samples can be provided for approval.

Information Required for Customization

Please provide a product drawing or physical sample, the machine model and forming area, the sheet material and thickness, and the target output so that we can evaluate the cavity layout and prepare a quotation.

Product
Product drawing or physical sample, including the compartment layout
Sheet Material
Material type and sheet thickness (PP, PET, or PS)
Thermoforming Machine
Machine model and available forming area
Production Requirements
Target output, preferred cavity layout, cutting method, and stacking method
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold
PP PET Plastic Takeaway Food Container Mold Positive Pressure Thermoforming Mold

Frequently Asked Questions

What types of lunch box molds can you manufacture?

We manufacture thermoforming molds for single-compartment and multi-compartment trays, hinged takeaway boxes, and lunch boxes with separate bases and lids. The product shape, rim, reinforcing ribs, compartment layout, and stacking method can all be customized from your drawings or physical samples.

Can you design lunch box molds for different sheet materials?

Yes. We design lunch box molds for common thermoforming materials, including PP, PET, and PS. Material shrinkage, mold structure, the vacuum or pressure system, plug-assist design, and cooling layout are adjusted to suit the selected material, sheet thickness, and product depth.

How do you improve wall-thickness distribution in deep or multi-compartment lunch boxes?

We optimize the cavity layout, draft angles, plug-assist geometry, forming-air and vacuum distribution, and cooling channels to improve material distribution across the base, corners, divider walls, and sidewalls. Before shipment, the mold can also be tested in-house using the agreed material and sheet thickness.

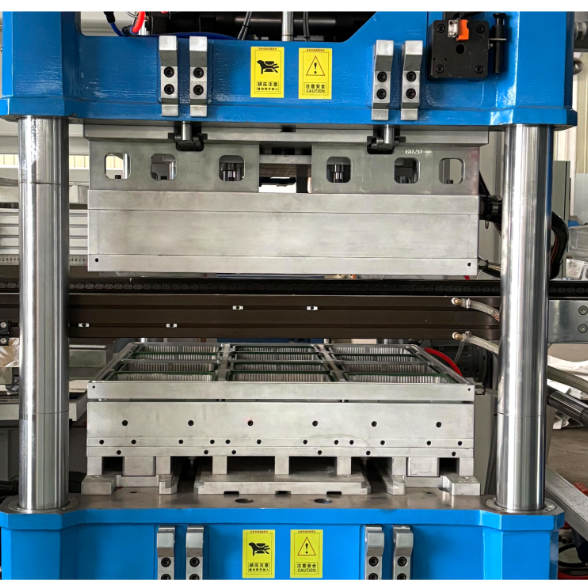

Can the molds be customized for our existing three-station thermoforming machine?

Yes. We customize forming molds, cutting molds, and stacking tooling to match your machine's forming area, mounting dimensions, stroke, forming direction, water and air connections, cutting method, and stacking interface. Please provide the machine drawings or existing mold drawings so that we can verify all interfaces.

What information do you need to quote a lunch box mold?

Please provide a product drawing or physical sample, the overall dimensions and depth, compartment layout, rim design, sheet material and thickness, machine make and model, forming area, required cavity count, forming method, cutting method, stacking method, and target output.

Discuss Your Lunch Box Mold Project

Send us your product drawing or physical sample, together with the machine model, forming area, sheet material and thickness, and target output. Our engineering team will evaluate the cavity layout and tooling requirements before preparing a quotation.
