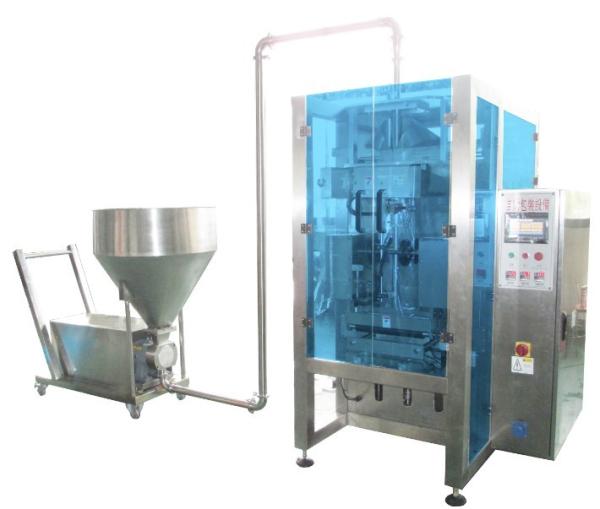

Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine
Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine
Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine
Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine
Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine
Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine
Specifications
Brand Name :
TANGREN
Model Number :
DX
Certification :
ISO,SGS
Place of Origin :
China
MOQ :
1 set
Supply Ability :
10 per month
Delivery Time :
30 working days
Product Name :
Full automatic liquid / paste products quantitative bag packaging equipment
Bag width :
100-250mm 100-290mm
Bag length :
150-480mm 150-600mm
Film width :
220-560mm 220-620mm
Packing material :
Composite film (NY/PE)
packing capacity :
4-10 bags/min
Description

Product Name


Full automatic liquid / paste products quantitative bag packaging equipment

Scope of application:
It is widely used in packing filling of sweetened bean paste, filling of lotus meat,
fruit jam, Chinese watermelon jam, cheese jam, sauce, salad, lotion, liquid, semi liquid.
　　Equipped with input pump, the machine could automatically pack the products in high temperature that will improve the productivity, decrease the cost, and avoid making the twice packing.
Features:
　　1.Touch screen display in Chinese and English, direct and easy to operate.
　　2.Advanced design for complete machine, reasonable structure, convenient adjusting operation and maintenance.
　　3.PLC computer-controlled systems to make the operation more stable. All the parameters can be adjusted without stopping the machine.
　　4.Accuracy weighing ±1%.
　　5.The pouching,sealing,packing and data printing of products is done in one time.
　　6.Minimize the consumption with multiple kinds of auto warning protection function.
Technical paramete:
Model KL-Y600I KL-Y600II
Bag width 100-250mm 100-290mm
Bag length 150-480mm 150-600mm
Film width 220-560mm 220-620mm
Packing material Composite film (NY/PE)
packing capacity 4-10 bags/min(And the filling volume, material consistency, environmental condition )
Packing volume Max.5000cc Max.10000cc
making type Back sealing
Power supply AC 380V 50Hz
Power 4.5KW
Air pressure 0.6-0.8 Mpa .0.006m3/min
Dimension L1350mm X W980mm X H 1980mm L1350mm X W1080mm X H2150mm
Weight 980Kg 1080kg







Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine Vertical Automatic Liquid Packaging Machine , Direct Paste Packaging Machine





Pre-sale:
Receive your call for the organization of technical seminars to discuss customer equipment requirements. Provide you with a detailed " proposal", including 1, a sample of equipment; 2. The latest technology of related equipment at home and abroad, comparison of the advantages and disadvantages of related manufacturers' products; 3, GMP process design, plant layout diagram of water and electricity; 4, mechanical equipment Process design; 5, related product configuration, spare parts, packaging and after-sales service; 6, determine the equipment and sub-item quotation.

Selling:
1, keep in touch with you, invite customers to visit the company, supervise production and assembly.
2. Prepare equipment specifications, file cards and tracking cards and other related software and accept your acceptance at any time.
3. Regularly report the progress of production to the customer.


After sales: (according to the international standard after-sales service standard operation)
• One-year warranty, life-long service, 24-hour after-sales service website, hotline and fax for your customers, domestic customers basically reach the designated location within 72 hours.
• Spare parts inventory is available for a long time, vulnerable, consumables and important accessories, to ensure that customers respond to the first time.
• Make regular visits to each customer once a year and record equipment records.
