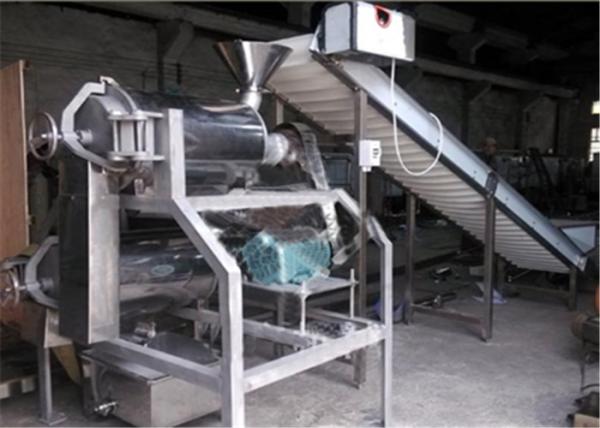

Double Beating Machine for canned product preparing machine Enucleating Machine

Discription:

Scope and features
1, the residue automatically separated.
2, can be combined in the production line and stand-alone production.
3, parts in contact with the material are made of high quality stainless steel, in line with food hygiene.
working principle
1, DJ-type beater: The motor is driven by a belt so that the scraper installed on the spline rotates at a high speed. When the broken fruit enters the machine through the feeding port, the pulp plate then discharges the material uniformly to the scraper And the screen office. Due to the rotation of the scraper and the existence of the lead angle, the material is moved along the cylinder to the outlet end, the trajectory of the movement is helical, and the material is affected by the centrifugal force during the movement between the squeegee and the screen cylinder Grains, juices and succulent (which have become pulp) from the sieve through into the next process, (two-lane, three-beater for linkage to repeat the above process) To achieve the purpose of automatic separation. As long as the conversion of different specifications of the screen and adjust the size of the lead angle of the scraper, you can change the different beating speed, to obtain satisfactory results.
2, MDJ type beater: motor through the belt drive, so that the spinner mounted on the rotor parts rotating at high speed, the fruit from the feed port into the machine, the feed slurry will screw the material delivered to the beating stick, the beating stick role Under the material is smashed. Due to the existence of centrifugal force, the juice and the succulent material in the material (which has become a slurry) pass through the sieve hole on the sieve to enter the next beating (the sieve hole is determined by the size of the fruit core) Slag mouth, so as to achieve automatic separation of pulp.
The main specifications of technical parameters

Q&A
Q1: How to visit our Factory? (not a trade company)
A: Shanghai Airport→Pick you up
Q2: How does your factory do the quality control?
A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.
Q3: How about the installation?
A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.
Option 2, you learn this in our factory.
Q4: Do you have after-sale service?
A: 1 Year Warranty and timeless maintenance service.
Q5: How about the payment term?
A: Payment term:1, T/T 30% , 70% before shipping.
