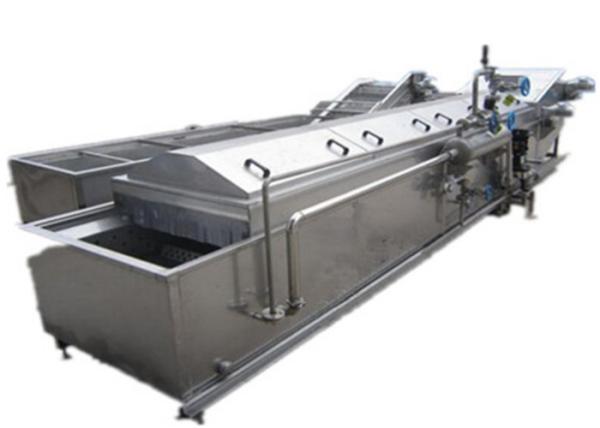

Canned Fish Sterilization Line Tuna Sardina Processing Canning Equipment

Features:
The machine is made of high-quality sus304 stainless steel, reducing pollution, ensuring continuous hygiene, stepless speed regulation, can be adjusted

Equipment plan
Cooking time and temperature, speed. The machine running smoothly, low noise. For a variety of food cooking and blanching: In addition also suitable for low-temperature products, bus sterilization; product specifications can be customized according to customer requirements, cooking cabinet, cooling cabinet, cooling cabinet length and width can be arbitrarily selected. Temperature can be set, automatic control, maintain a constant temperature, automatic recording; forced drive, shorten the cooking time, make the product temperature uniformity, to ensure cooking quality; using elevator delivery, reduce labor intensity and save expenses; Synchronization with the cooking tank mechanism to achieve automatic delivery.

Dimensions:
A cooking section 12000x1600 (mesh belt) x1250

Technical Parameters:
Sterilization time: 5-30min (adjustable)
Sterilization temperature: 65 ℃ -95 ℃ adjustable
steam pressure: 1-4kg
cooling method: Natural water
Running speed: Frequency
Network bandwidth:1600
power: 4.8kw
Air consumption: 0.3-1.0m3 / h
power supply: 380v / 50Hz
Processing capacity: 20t / d
Sterilization section (single net belt): 12m
Tank body: 2.0mm304 stainless steel plate
Frame body: 50x50x2.0mm304 stainless steel square tube
Mesh belt: Material 304 stainless steel
temperature control: Automatic control
Bearing seat: 304 stainless steel

Q&A

Q1: How to visit our Factory? (not a trade company)

A: Shanghai Airport→Pick you up

Q2: How does your factory do the quality control?

A: “QUALITY FIRST " We purchase qualified parts, test the machine every step when manufacturing. We have SGS certification and ISO certification.

Q3: How about the installation?

A: Option 1, our engineer install the machines for you, also train your staff until they can run the machine independently.

Option 2, you learn this in our factory.

Q4: Do you have after-sale service?

A: 1 Year Warranty and timeless maintenance service.

Q5: How about the payment term?

A: Payment term:1, T/T 30% , 70% before shipping.
