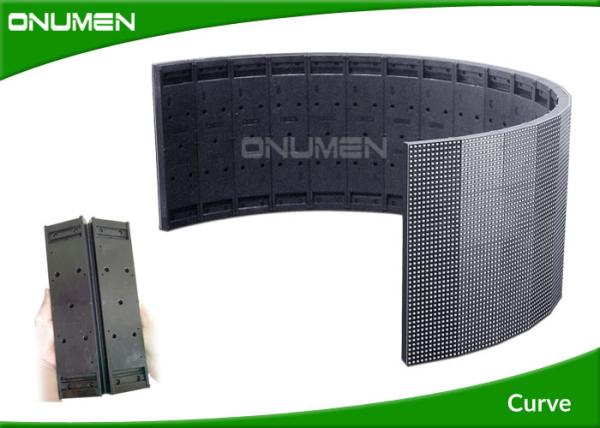

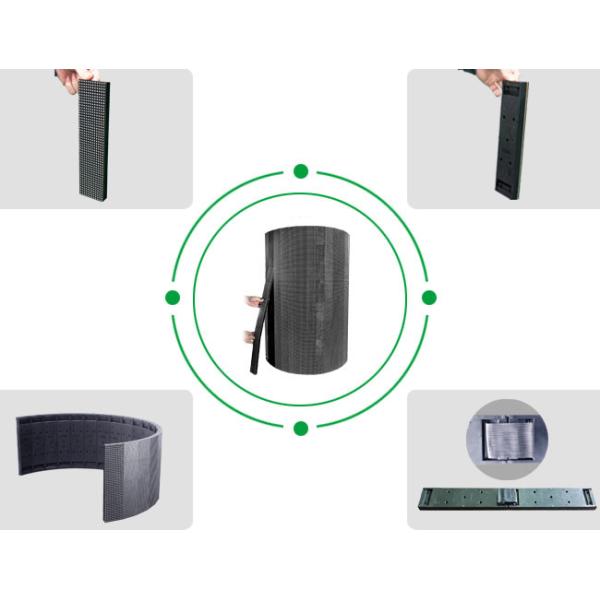

Black Curved LED Screen Outdoor Advertising Digital Display 3000Cd / M² 62.5x250 MM
Black Curved LED Screen Outdoor Advertising Digital Display 3000Cd / M² 62.5x250 MM
Specifications
Brand Name :
Onumen
Model Number :
OM-F-MK-3P9-N
Certification :
TUV.FCC.CE.ROHS
Place of Origin :
SHENZHEN
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, Western Union
Supply Ability :
3000//Square Meter/M
Delivery Time :
25Days
Packaging Details :
Wooden case or flight case as customer's request
Pixel pitch :
3.9mm
Pixel configur :
1R1G1B
Module resolution :
16*64 pixels
Module size :
62.50*250mm
Module quantity :
64pcs
Brightness :
3000cd/m²
Life time :
10000Hrs
Control system :
BSTAR
Color :
Black
Description

Black Curved LED Screen Outdoor Advertising Digital Display 3000Cd / M² 62.5x250 MM​



Product Features


l Supplied by Nichia of Japan & other high strictly selected LED chip to ensure the long lifetime and high

brightness


l More than 120 degree in horizontal and vertical to ensure you attract more audience to get short ROI of

your LED display screen's investment


l With ultra high refresh rate, to ensure clear picture


l Fast and convenient assembly and dismount system


l Using high quality led chip and lamp to ensure led display can last 8 years with low Lumens

depreciation.



Technical Specification


Model No. Curve 3.9
Pixel Pitch 3.9mm
Module Size 62.50*250mm
Module Resolution(pixels) 16*64
Panel Size 62.50mm×250mm
Panel Resolution(pixels) 128*256
Pixel Configuration(RGB) 1R1G1B
Pixel Density(pixels/m2) 16384
Brightness(cd/m2) 1000 / 6000
Best Viewing Distance(m) >4m
Max.Power Consumption(W/m2) 410/ 820
Waterproof Level Indoor IP43/Indoor IP54 / outdoor IP65
Wavelength R 625±5nm, G 525±5nm B 470±5nm
LED SPEC SMD3528 /SMD3535
Viewing Angle 110°(H)/110°(V)
Operating Temperature –20~50°C
Video Frame Rate(Hz) 30-120HZ
Display Refresh Rate(Hz) ≥4000HZ
Grey Level(colors) 16.7million
MTBF ≥50000 hours
Lifespan ≥100000Hours
Working Voltage DC24V
Drive Mode Scan 1/16 or Scan 1/8
Graphics Card DVI Graphics card
Video Signal RF, S-Video, RGB, RGBHV, YUV, YC, etc.
Control System Dbstar
Software Xmplayer 3.1
Installation Wall mount, hung

Warranty:


1. All panels’ grade is promised strictly same as original factory’s IIS standard.

2. All brand-new Panels’ electronic functions are guarranteed during warranty period of 1 year beginning
with the invoice date.

3. During the warranty, if panels’ electronic functions problems occur, customers provide the photos to
illustrate the panel’s problem. Once our engineering department has confirmed it is the original factory’s
electronic problem, we will take back the panels with problem and replace it with new panels. All freight will
be taken by us.

4. If it is beyond the warranty period and customer needs to repair the panels, we can repair them and
customers will take the cost of the repairing and freight.

5. All confirmation will be given to customers in 24hours.

Black Curved LED Screen Outdoor Advertising Digital Display 3000Cd / M² 62.5x250 MM
