Specifications
Brand Name :
LIKEE
Model Number :
LK-T80
Certification :
CE, ISO ,SGS
Place of Origin :
Shanghahi, China
Price :
$45000-75000/set
Commodity :
Aluminum Foil Container Making Machine
Category :
Aluminum Foil Container Machine
Model :
LK-T80
Thickness :
30micron~200micron
Main Motor :
Innomotics
Main Material :
High Precised Steel
Capacity :
12000pcs/hour
Feeding Accuracy :
±0.1mm
Motor Power :
19KW
Frequency :
50HZ
Low voltage electrical :
Schneider
Total weight :
14500KG
Description
LK-T80 Aluminum Foil Container Machine H-Type Structure for Maximum Stability
Product Overview
LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability

The LK-T80 Aluminum Foil Container Machine features a heavy-duty, integral H-type frame that evenly distributes the immense forces generated during high-speed stamping. This design eliminates flex and minimizes vibration, ensuring exceptional forming precision and consistent container quality.

This superior stability delivers direct production advantages, including reduced material waste and extended service life for precision molds and core mechanical components. Built for demanding environments, the LK-T80 is ideal for continuous, high-output operations and supports consistent performance with future upgrade capabilities.

Technical Specifications
ParameterSpecification
Wrapping MethodAutomatic
Production Speed50-70 strokes/min
Max. Production Speed12000 pcs/hour
Main MaterialHigh Precised Steel
Workplate Dimension1250*1000MM
Operational ModeFully Automatic
Thickness30micron~200micron
Frequency50Hz
ColorWHITE AND ORANGE
Feeding Accuracy±0.1mm
ModelLK-T80
Main MotorInnomotics
Core Advantages
  • H-Type Heavy-Duty Frame: Fabricated from high-quality steel plates for superior rigidity and exceptional resistance to impact deformation.
  • Precision 8-Column Guidance: The slide is guided by eight high-precision columns with long-life lubricated bushings, ensuring parallel closing and prolonging mold life.
  • Dynamic Balancing System: The transmission system is dynamically balanced to suppress vibration sources at the root.
  • Reinforced Bed Plate: Thickened steel bed plate provides a solid, flat mounting surface for molds, preventing deflection under load.
  • Modular Maintenance Design: External main lubrication points and easy access to key components facilitate maintenance without compromising robustness.
Container Samples
LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability

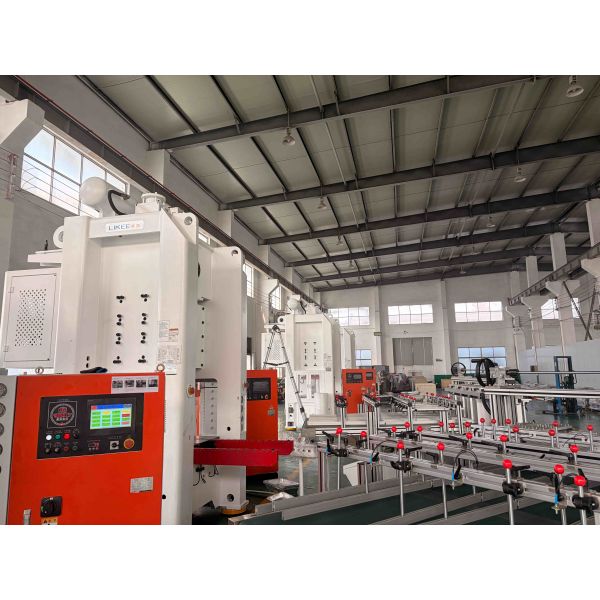

Factory Showcase
LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability LK-T80 Aluminum Foil Container Machine with H-Type Structure for 12000pcs/hour High Precised Steel Stability
Frequently Asked Questions
Q1: What is the main advantage of the H-type frame over a common C-type frame?
A1: The H-type frame provides superior stability and rigidity compared to C-type frames, resulting in better performance and longer equipment life.
Q2: How does this structural stability specifically improve production quality?
A2: Greater frame stability leads to higher mold closing accuracy. This results in more uniform container dimensions, sharper edge definition, and neater stacking, significantly reducing quality issues like scratches or burrs caused by vibration.
Q3: How does the H-type structure affect mold service life?
A3: Severe vibration is a major cause of mold damage. The H-frame drastically reduces vibration, minimizing the shock loads on precision mold components like guide pins and inserts. This effectively prevents abnormal wear, loosening, or cracking, thereby greatly extending mold life.
Q4: What is the benefit of the H-type structure for future upgrades to higher speed or larger molds?
A4: The H-type structure provides ample performance headroom. Its sturdy foundation means the machine can maintain stability even when running at higher speeds or with larger tonnage molds, protecting your upgrade investment and avoiding the need for a complete machine replacement due to insufficient frame rigidity.
Q5: Is this structure easier to maintain?
A5: Yes. Its design is typically more regular and organized, with clear primary load paths. While the frame itself is heavy, daily lubrication points and key monitoring areas (like connecting rods and bearing housings) are more accessible for maintenance.
