Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control
Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control
Specifications
Drive System :
Servo Motor Cartoner with Belt Feeding
Model Number :
LK-BC3115
Working speed :
10–50 boxes/min
Box size range :
L100–320 × W100–190 × H30–100 mm
Control System :
PLC Control
Certification :
CE, SGS, ISO9001, and ISO14001
Product Name :
Automatic Cartoning Machine
Brand Name :
LIKEE
Application :
Suitable for Wet Wipes & Aluminum Foil Box Packaging
Place of Origin :
Shanghahi, China
Description
Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control
Product Overview
The LK-BC3115 is an advanced automatic cartoning machine designed for aluminum foil paper packaging. This servo-driven cartoner features belt feeding, PLC control, and is specifically engineered for wet wipes and aluminum foil box packaging applications.
Equipped with a 1.5 kW servo motor, 0.25 kW feeding motor, and 3.5 kW heating device, this machine delivers reliable performance with adjustable box sizing and efficient operation requiring only one operator.
Technical Specifications
Machine Type Aluminum foil paper packing machine (cartoning machine)
Suitable Products Wet wipes, aluminum foil, plastic wrap, oil-absorbing paper, plastic bags
Working Speed 10-50 boxes/min
Packing Box Size (L×W×H) 100-320 × 100-190 × 30-100 mm
Feeding System Belt conveyor
Control System PLC
Servo Motor 1.5 kW
Feeding Motor 0.25 kW
Heating Device 3.5 kW
Adhesive Type Hot melt adhesive or regular glue
Air Pressure 0.5-0.8 MPa
Electrical Requirements 380V, 50Hz, 3-phase
Overall Dimensions (L×W×H) 4000 × 1600 × 1700 mm
Weight 1500 kg
Key Features
  • Servo motor drive with 1.5 kW servo motor, 0.25 kW feeding motor, and 3.5 kW heating device
  • Belt feeding system using conveyor belt
  • Advanced PLC control for precise operation
  • Specifically designed for wet wipes, aluminum foil, plastic wrap, oil-absorbing paper, and plastic bags
  • Multi-directional box size adjustment (L 100-320 / W 100-190 / H 30-100 mm)
  • Working speed of 10-50 boxes per minute
  • Sealing with hot melt adhesive or regular glue options
  • 380V, 50Hz, 3-phase power supply with 0.5-0.8 MPa air pressure requirement
  • Compact dimensions: 4000 × 1600 × 1700 mm; weight 1500 kg
  • One machine, one person operation for efficient labor utilization
Frequently Asked Questions
  • What products can this cartoning machine pack? Wet wipes, aluminum foil, plastic wrap, oil-absorbing paper and plastic bags.
  • What kind of motor does the machine use? The machine is equipped with a 1.5 kW servo motor, plus a 0.25 kW feeding motor and a 3.5 kW heating device.
  • How are products fed into the machine? By belt conveyor.
  • How is the machine controlled? By PLC.
  • What box sizes does the machine accept? Length 100-320 mm, width 100-190 mm, height 30-100 mm. The size is adjustable in multiple directions.
  • What is the working speed? 10-50 boxes per minute.
  • What adhesive does it use? Hot melt adhesive or regular glue.
  • What is the power supply? 380V, 50Hz, 3-phase; air pressure required 0.5-0.8 MPa.
  • What are the overall dimensions and weight? 4000 × 1600 × 1700 mm; 1500 kg.
  • How many operators are required? One. The machine is described as a one-machine, one-person operation.

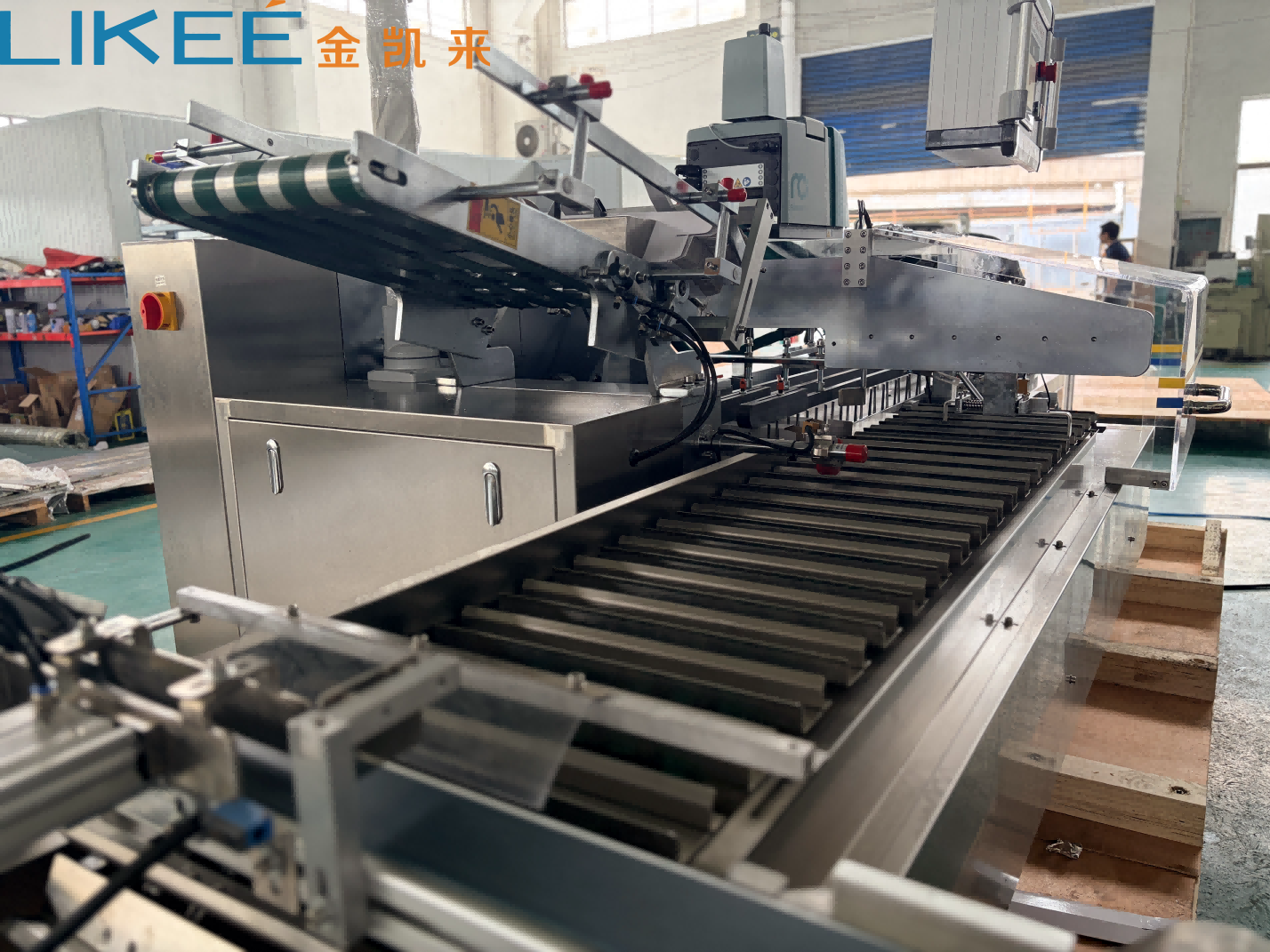

Machine Display
Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control
Customer Case
Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control
Certification
Automatic Cartoning Machine – Servo Motor Cartoner with Belt Feeding, PLC Control
Machine Operation Video
