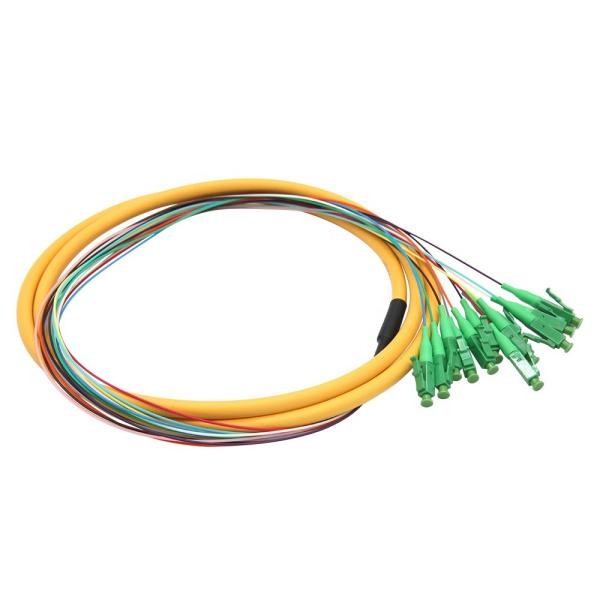

LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
Specifications
Brand Name :
Weiroct
Model Number :
SC, LC
Certification :
ISO-9001
Place of Origin :
Hubei, China
MOQ :
1KM
Price :
USD
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
1000 Kilometre / Month
Delivery Time :
5-7 Days
Packaging Details :
2KM/Roll/Carton Box
Type :
Optical Fiber
No.of Fiber :
8/12/24
Multi-mode Fiber :
SM or MM
Connectors :
SC,LC,ST,FC
Return Loss :
>50db(UPC);>60db(APC)
Application :
FTTH, FTTx
Jacket Material :
LSZH, PVC, OFNR, OFNP
Cable Diameter :
0.9mm,2.0mm,3.0mm
Diameter :
0.9, 2.0, 3.0, or customized
Description

SC FC LC ST Single/Multi Mode Ribbon Optical Fiber Pigtail

Description

1. optical splitter is a type of optical power management device that is fabricated using silica optical waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

2. Rollball provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE requirements.
Feature
1. SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
2. Superior qualified standard PC, APC, UPC, SPC polishing;
3. φ0.9mm, φ2.0mm, φ3.0mm cable optional;
4. Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
5. Available in fiber bunch, ribbon fan-out, pigtail available;
6. Simplex and duplex connector available;
7. Low IL and High RL;
8. Good exchange ability and good durability;
9. Customized specifications are welcomed.
Applications
1. FTTX Systems
2. PON Networks
3. CATV Links
4. Optical Signal Distribution
specifications
LC/APC Fiber Optic Pigtail
Item Name
Unit
Grade S (Standard)
Grade P (Premium)
Fiber Type
um
9/125
9/125(Corning)
Polishing
---
APC
Insertion Loss
dB
≤0.3
≤0.2
Return Loss
dB
≥60
≥65
Repeatibility
dB
≤0.1
Interchangebility
dB
≤0.2
Operating Temp.
℃
﹣25~﹢70
Durability
times
≥1,000
Tensile Strength
N
≥90(Φ3.0), ≥70(Φ2.0)
Diameter
mm
0.9, 2.0, 3.0, or customized
Fiber Count
---
12-core
Material
---
PVC, LSZH

LC Ribbon Optical Fiber Pigtail 3.0mm SC / E2000 Connector Available
