G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core
G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core
G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core
G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core
Specifications
Brand Name :
WRC
Model Number :
Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
Certification :
ISO9001
Place of Origin :
China
MOQ :
5km
Price :
USD0.55-USD14/Km
Payment Terms :
Western Union, MoneyGram, Western Union
Supply Ability :
500Km per day
Delivery Time :
5-25days
Packaging Details :
Standard Export Packing
Application :
Telecommunication,Duct,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Type :
Single Mode g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-144 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC,PVC outer sheath
Length :
2km or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Installation :
self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Description

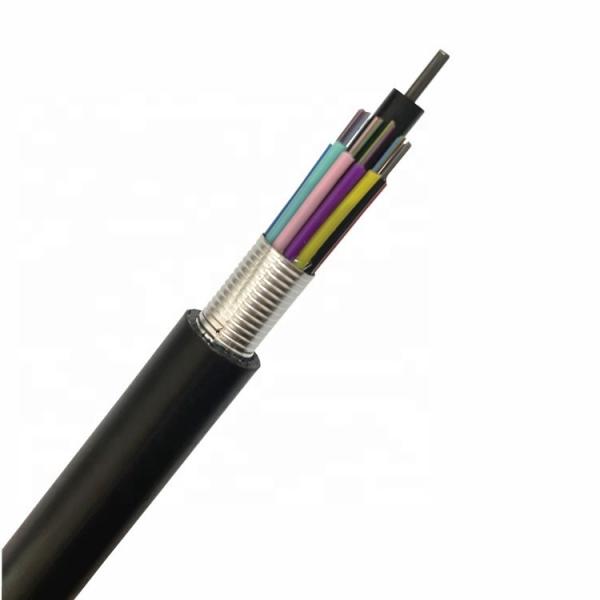

2-144 core G652D PE underground GYTS Anti outdoor optical fiber cable

Description:

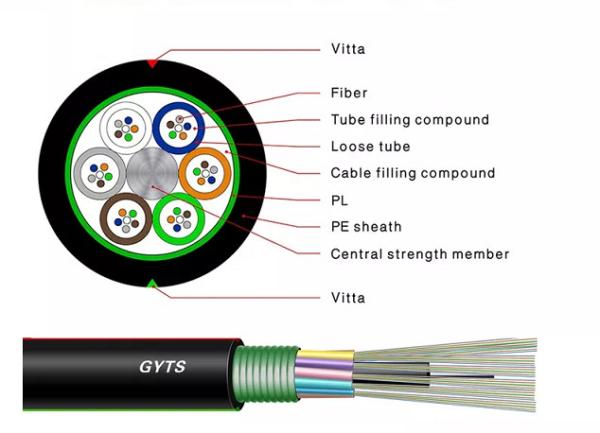

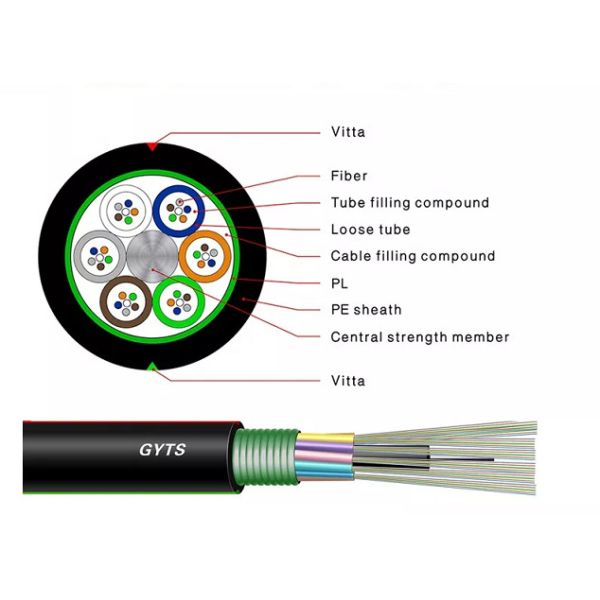

GYTS The fibers,250μmm,are position in a loose tube made of a high modulus plastic.The tube are filled with a water resistant filling compound.A steel wire,sometimes sheathed with ployethylene(PE) for cable with high fiber count,locates in the center of core as a metallic strength member.

Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.The PSP is longitudinally applied over the cable core,which is filled with filling compound to protect it from water ingress,the cable is completed with a PE sheath.

Application:

  1. Adopted to Outdoor distribution.
  2. Suitable for aerial pipeline laying method.
  3. Long distance and local area network communication.

Characteristics
· Good mechanical and temperature performance
· High strength loose tube that is hydrolysis resistant
· Special tube filling compound ensure a critical protection of fiber
· Crush resistance and flexibility
· PE/LSZH sheath protects cable from ultraviolet radiation
· 100% cable core filling

Technical properties
Item Name
GYTS Fiber Optic Cable
Place of Origin
Wuhan,China
Model Number
GYTS
Brand Name
WRC
Fiber Type
Single mode ITU-T G652D
Fiber No.
2-288 cores
Strength Member
Central Steel Wire/Metal
Material of Jacket
Black Polyethylene (PE)
Cable Structure
Stranded Loose Tube
Certificate
ISO9001/CE/RoHS/CE
Storing Temperature
-40℃ to +70℃
Application
Duct/Aerial

Drawings Crush Resistance 2-144 Cores GYTS Optic Fiber Light-armored Cable
G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core

G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core

G652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 CoreG652D PE Underground Anti Outdoor Optical Fiber Cable GYTS 2-144 Core
