Outdoor underground armored 6-288 core fiber optic cable GYTA
Outdoor underground armored 6-288 core fiber optic cable GYTA
Outdoor underground armored 6-288 core fiber optic cable GYTA
Outdoor underground armored 6-288 core fiber optic cable GYTA
Specifications
Brand Name :
WRC
Model Number :
outdoor underground armored 6-288 core fiber optic cable GYTA
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5km
Price :
USD0.55-USD14/Km
Payment Terms :
Western Union, MoneyGram
Supply Ability :
499Km per day
Delivery Time :
5-25days
Packaging Details :
Export Packing
Application :
Telecommunication,Duct,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
≥ 10,2,4
Type :
Single Mode g652d,PC/UPC/APC,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC,PVC outer sheath
Product name :
stranded loose tube armored cable,Outdoor Optic Fiber Cable
Length :
2km or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Name :
Outdoor armor fiber optic cable
Oem :
Available
Installation :
self- supporting Aerial,aerial,Aerial & Duct,aerial/tube/duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey
Description

Description: Outdoor underground armored 6-288 core fiber optic cable GYTA

1.The fibers is 250µm, are positioned in a loose tube made of a high modulus plastic . The tubes are filled with a water-resistant filling compound.

2.A steel wire, sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member.
3.Tubes (and fillers) are stranded around the strength member into a compact and circular cable core.
4.An Aluminum Polyethylene Laminate (APL) is applied around the cable core, which is filled with the filling compound to protect it from water ingress.
5.Then the cable core is covered with a thin PE inner sheath. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.
Technical properties
No. of cable
12
24
48
Fiber Model
G.652D
Design
(StrengthMember+Tube&Filler)
1+5
Central Strength Member
Material
Steel Wire
Diameter(±0.5)mm
1.4
Loose Tube
Material
PBT
Diameter(±0.06)mm
1.72
1.72
2.0
Thickness(±0.03)mm
0.30
0.30
0.32
The Max.Core NO./Tube
6
6
12
Filler Rope
Material
LDPE
Diameter(±0.06)mm
1.7
1.7
2.0
NO.
3
1
1
Moisture Barrier
Material
Polymer Coated Aluminum Tape
Thickness(±0.03)mm
0.20
Inner
Sheath
Material
MDPE
Thickness(±0.2)mm
0.9
Armoring
Material
Polymer Coated Steel Tape
Thickness(±0.2)mm
0.22
Water Bloaking Layer
Material
Filling Compound
Outer Sheath
Material
MDPE
Thickness(±0.2)mm
1.8
Cable Diameter(±0.5)mm
12.5
12.5
13.1
Cable Weight(±10)kg/km
152
167
167
Attenuation
1310nm
0.35dB/ km
1550nm
0.21dB/ km
Min. bending radius
Without Tension
12.5×Cable-φ
Under Maximum Tension
25.0×Cable-φ
Temperature range
(℃)
Installation
-20~+60
Transport&Storage
-40~+70
Operation
-40~+70

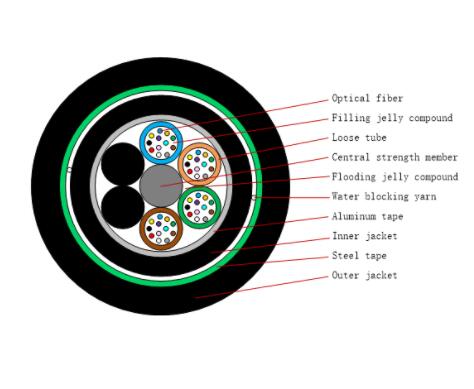

Drawings Outdoor underground armored 6-288 core fiber optic cable GYTA

Outdoor underground armored 6-288 core fiber optic cable GYTA
