Specifications
Brand Name :
Wrc-GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable
Model Number :
GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.0km
Price :
USD60-USD350/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network,internet,Lan
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,12,24,48,96
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-288 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC
Name :
GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable
Length :
2km , or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial, Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire,Aluminum,or as per requirement
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable

"GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable "is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.

Characteristics of GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable

· Has good mechanical and temperature properties.

· The loose tube material itself has good hydrolysis resistance and high strength.

· The tube is filled with a special grease to provide critical protection to the fiber, good pressure resistance and softness.

· Double coated steel strip (PSP) improves the moisture resistance of the cable.

· Two parallel wires ensure the tensile strength of the cable.

· Small diameter, light weight and easy to lay.

· Long delivery length
Structure and Technical specifications of GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable

Cable model Number of fibers

Cable diameter

mm

Cable weight

kg/km

Allowable stretching force

Long/short term

N

Allowable crushing force

Long/short term

N/100mm

Bending radius

Static/dynamic

mm

GYXTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D

Cable Parameters

able count out sheath diameter Weight Minimum allowable Tensile strength(N)
Minimum allowable Crush load(N/100mm)

Min bending radius(MM)

Suitable temperature
(core) (MM) (KG)
short term

long term

short term

long term

short term

long term
(℃)
2 8.3 78.00 1500 600 1000 300 20D 10D -40+60
4 8.3 78.00 1500 600 1000 300 20D 10D -40+60
6 8.3 78.00 1500 600 1000 300 20D 10D -40+60
8 8.3 78.00 1500 600 1000 300 20D 10D -40+60
10 8.3 78.00 1500 600 1000 300 20D 10D -40+60
12 8.3 78.00 1500 600 1000 300 20D 10D -40+60
24 8.3 78.00 1500 600 1000 300 20D 10D -40+60

We produce cables according to the standard as below of GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable
Mechanical Performance
Max Tension Performance IEC 60794–1-2-E
Max. Operation Tension IEC 60794–1-2-E1
Crush Test IEC 6079 –1-2-E3
Impact Test IEC 60794–1-2-E4
Repeated Bending IEC 60794–1-2-E6
Torsion Test IEC 60794–1-2-E7
Cable bend IEC 60794–1-2-E11A
Attenuation Coefficient ITU-T G.652
Structural Test IEC-60793-1-20
Environmental Performance
Temperature Cycling IEC 60794–1-2-F1
Water Penetration IEC 60794–1–2-F5B
Filing Compound Flow IEC 60794-1-E14
FAQ
1.What is your MOQ?
Free MOQ. You'll be highly appreciated,if you could provide us your QTY. Then we'll calculate cost correspondingly.
2.Can I get samples?
Yes. Samples will be sent for checking. We usually send samples by DHL,Fedex,UPS,TNT or Aramex. If you have carrier account,it'll be pleased to ship with your account. If not,you can pay by Western Union,Paypal or others.
3.How long is sample & production leadtime?
A.Sample leadtime: 3-5 days,after confirmed your payment.
B.Production leadtime:10-12 days,after confirmed sample & payment.
4.Do you accept OEM or ODM?
Yes,we're factory. And we have our own Engineering Department. You just need to send us your requirements.


Our Services
1.24hours one-to-one online services ensure efficient support.
2.Considerate customer reception from hotel booking to factory visiting.
3.Excellent care from order confirmation to product shipment.

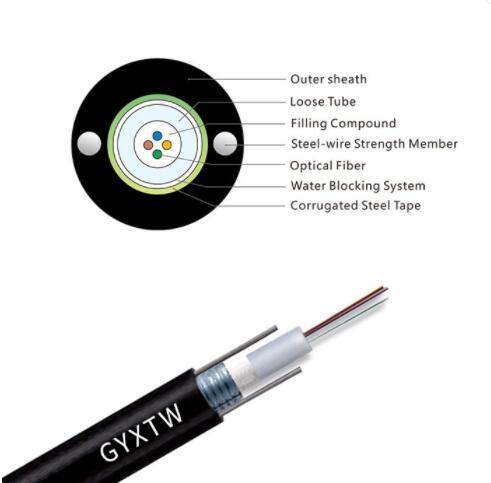

Drawings of GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable
GYXTW G652d Armored 8 Core Duct Fiber Optic Cable
GYXTW G652d Armored 8 Core Duct Fiber Optic Cable
GYXTW G652d Armored 8 Core Duct Fiber Optic Cable
Package of GYXTW G652d Armored Duct Outdoor 8 Core Fiber Optic Cable
GYXTW G652d Armored 8 Core Duct Fiber Optic Cable

More products customized

GYXTW G652d Armored 8 Core Duct Fiber Optic Cable
GYXTW G652d Armored 8 Core Duct Fiber Optic Cable

G.652

G.655

50/125μm

62.5/125μm

Attenuation

(+20°C)

@850nm

≤3.0 dB/km

≤3.0 dB/km

@1300nm

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23dB/km

Bandwidth (Class A)

@850nm

≥500 MHz·km

≥200 MHz·km

@1300nm

≥1000 MHz·km

≥600 MHz·km

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelengthλcc

≤1260nm

≤1480nm
