GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables
Specifications
Brand Name :
Weiroct
Model Number :
GYTS ,GYFTY GJYXCH ,GYXTW ,FTTH drop cable
Certification :
ISO-9001
Place of Origin :
China
MOQ :
2KM
Price :
USD
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
20000 Kilometre / Month
Delivery Time :
5~20 DAYS
Packaging Details :
2KM/Roll/Carton Box
Conductors :
≥10
Fiber model :
OM3
Number of cores :
1~256 cores
Fiber Type :
Tight Buffer Fiber
Material :
PVC/LSZH,Aramid Yarn
Color :
As your request
Attenuation :
800nm~1300nm
Diameter :
600μm or 900μm
Bandwidth :
850nm~1300nm
Operating Temperature :
-20~70°C
Application :
Indoor Telecommunication
Description

GYTS ,GYFTY GJYXCH ,GYXTW ,FTTH drop cable

Our company introduction

We are Optical fiber cables manufactures located in Wuhan city,China, we produce Optical Fiber cables ,including Indoor,outdoor,FTTH, and special optic fiber cables. we also supply telecom accessories,example PLT,Patchcord,fiber distribution box,optical transceiver Module,etc.f
We have passed ISO 9001:2015 certificate ,welcome to contact us if needed.

Features

Good mechanical and environmental characteristics

Flame retardant characteristics meet the requirements of relevant standards.

The mechanical characteristics meet the requirements of relevant stands

Soft, flexible easy to splice and with big capacity data transmission

Optical Characteristics

G.652 G.655 50/125μm 62.5/125μm
Attenuation
(+20°C)		 @850nm ≤3.5 dB/km ≤3.5 dB/km
@1300nm ≤1.5 dB/km ≤1.5 dB/km
@1310nm ≤0.45 dB/km ≤0.50 dB/km
@1550nm ≤0.30 dB/km ≤0.50dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Fiber Parameters

No. Items Unit Specification
G.657A1
1 Mode Field Diameter 1310nm μm 9.0±0.4
1550nm μm 10.1±0.5
2 Cladding Diameter μm 124.8±0.7
3 Cladding Non-Circularity % ≤0.7
4 Core-Cladding Concentricity Error μm ≤0.5
5 Coating Diameter μm 245±5
6 Coating Non-Circularity % ≤6.0
7 Cladding-Coating Concentricity Error μm ≤12.0
8 Cable Cutoff Wavelength nm λcc≤1260
9 Attenuation (max.) 1310nm dB/km ≤0.35
1550nm dB/km ≤0.21
10 Macro-Bending Loss 1turn×10mm
radius @1550nm		 dB ≤0.75
1turn×10mm
radius@1625nm		 dB ≤1.5

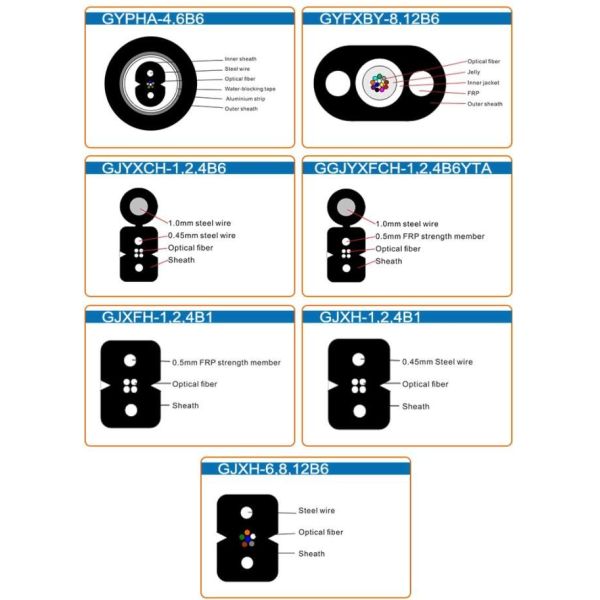

Types:

GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables

GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables

GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables

GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables

Package

GYTS ,GYFTY GJYXCH ,GYXTW ,ADSS,FTTH drop cable indoor outdoor fiber optic cables

FAQ

1.Are you the real manufacturer?

We are the real manufacturer with 19 year’s exprerience.

2.What’s the MOQ?

The MOQ is 1km.

3.What’s delivery time?

The general delivery time is 5-9 days after order confirmed. It depends on the order quantity.

4.How to Store the Optical Fiber Cable Properly?

Store the drum indoor before using, the drum should place sideways not on the end.

5. Can you supply customized products and logo?

Yes. We supply OEM service. You can send us your drawing.

6.What’s your payment terms?

We accept T/T,L/C,Western Union,D/P etc.
