GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
Specifications
Brand Name :
WRC GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
Model Number :
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
Certification :
ISO9001,SGS
Place of Origin :
China
MOQ :
5.0km
Price :
USD80-USD120/Km
Payment Terms :
Western Union, MoneyGram, D/P, T/T, L/C
Supply Ability :
500Km per day
Delivery Time :
5-21 days
Packaging Details :
Export Carton Packing
Application :
Telecommunication,Telecom,Network
Fiber type :
G652D,single mode or multi mode,50/125,62.5/125,OM3
Number of conductors :
2,4,8,24
Type :
Single Mode g652d,Outdoor Optical Cable Aerial,Singlemode & Multimode
Fiber count :
2-24 core
Color :
Black,Blue,Grey,Customized,Green
Jacket :
PE,MDPE,LSZH,PVC
Name :
GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
Length :
2km , or customized length
Jacket material :
PE,LSZH,TPU,LSZH OR PVC
Oem :
Available
Installation :
self- supporting Aerial,aerial,Aerial & Duct
Structure :
Loose tube,Unitube
Operating temperature :
-40~75
Sheath material :
LSZH,HDPE,PVC
Strength member :
steel wire
Fiber color :
Blue,Orange,Brown,Aqua,Grey,Customized
Description

Description: GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable

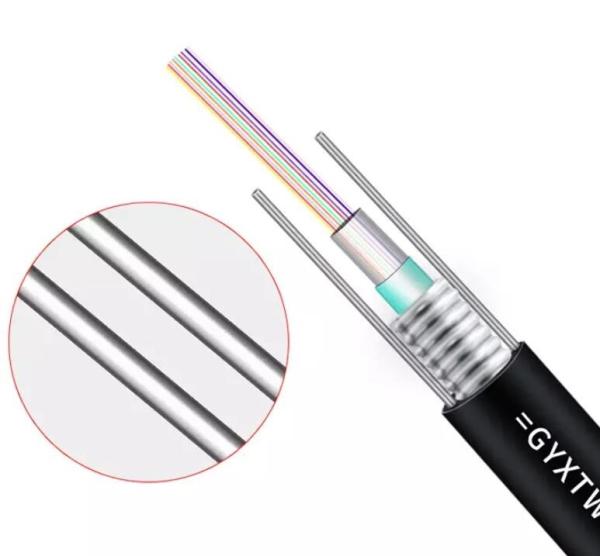

GYXTW-6B1 SM fiber optic cable ,Aixton GYXTW single-armored cables feature central loose tube wrapped with a layer of PSP longitudinally, excellent crush-resistant performance. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, to ensure tensile strength. The cable is completed with a single polyethylene (PE) sheath. It’s suitable for installation in aerial or duct environment for communication between bureaus, metropolitan network, access network and is especially suitable for the situation where high-density fibers is expected.

Characteristics of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable

Min. bending radius for installation Static: 15 x cable diameter,Dynamic: 20 x cable diameter
Application temperature,range Operation: - 40℃ ~ +60℃,Installation: -10℃ ~ +60℃,Storage/transportation: - 40℃~ +60℃

1. Low dispersion and attenuation
2. Proper design, precise control for fiber excess length and distinct stranding process render the cable
3. excellent mechanical and environmental properties
4. Compact structure and lightness, flexible and good bend-resistant performance
5. With small cable diameter, light cable weight, self-supporting
6. Operating Temperature : -40 ~ +60 C
The tube color is nature. And fiber color in the tube starts from No. 1 Blue
No.
1
2
3
4
5
6
Color
Blue
Orange
Green
Brown
Gray
White
No.
7
8
9
10
11
12
Color
Red
Black
Yellow
Purple
Pink
Aqua
No.
13
14
15
16
17
18
Color
Blue S100
Orange S100
Green S100
Brown S100
Gray S100
White S100
No.
19
20
21
22
23
24
Color
Red S100
Nature S100
Yellow S100
Purple S100
Pink S100
Aqua S100

Structure and Technical specifications of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
SN
Item
Unit
Value
1
No. of fibers
count
4/6
8/12
24
2
Tube diameter
count
2.2
2.4
3.2
3
Cable diameter(±5%)
mm
8.5
8.7
9.5
4
Cable weight(±10%)
kg/km
72
74
87
5
Short term tension
N
1500
6
Short term crush
N/100mm
1000

Main mechanical & environmental performance test of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable
Item
Test Method
Acceptance Condition
Tensile Strength IEC 60794-1-2-E1
- Load: Short term tension
- Length of cable: about 50m
- Load time: 1min
- Fiber strain 0.6%
- No fiber break and no sheath damage.
Crush Test
IEC 60794-1-2-E3
- Load: Short term crush
- Load time: 1min
- Loss change 0.1dB at 1550nm
- No fiber break and no sheath damage.

Cable marking of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable

(1) Indication in meters/feets;
(2) Quantity and type of fibers;
(3) Cable type;

(4) Factory name;

(5) Date of manufacturing (year);
(6) Other requirements ;

The marks will be permanent and legible for the duration of the cable life. The precision of the length indication will be better than 1000m±2m.

FAQ
1. What are the payment terms that you support?
Usually, we accept T/T, PayPal, Western Union, and Alibaba Trade Assurance. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there's stock, we ship the goods within 3~5 working days after the deposit is confirmed. If it is out of stock, the lead time depends.
3. How about the shipping?
When the package is small, we normally choose FedEx, DHL, TNT, and UPS, and so on, while the goods have high weight and volume, we suggest using air or sea shipment.
4. How can I place an order?
(1) Negotiation is agreed upon for the product price and specifications.
(2) The Proforma invoice will be sent for confirmation.
(3) After the agreement on the proforma invoice, the customer makes the deposit.
(4) Manufacturing will be started as soon as the payment is confirmed by our bank.
(5) Ship out the goods within the agreed delivery deadline.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. How about the Warranty?
There are 12 months for the warranty. While the warranty is not responsible for those broken by violence or updated with other brands.

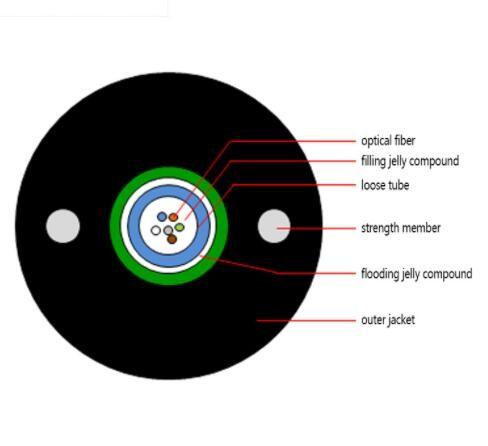

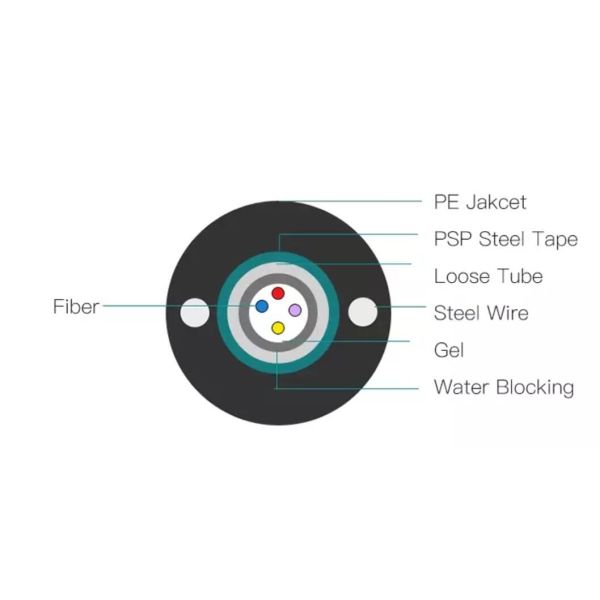

Drawings of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable

GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable

GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable

GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable

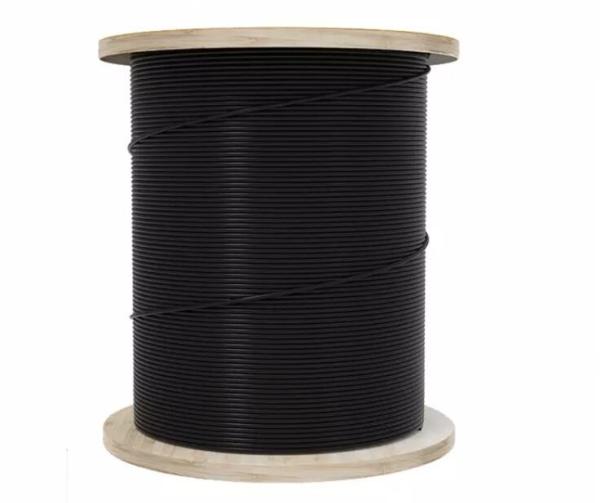

Package of GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optical Cable

GYXTW 2 4 6 8 12 Core Indoor Outdoor Fiber Optic Cable
