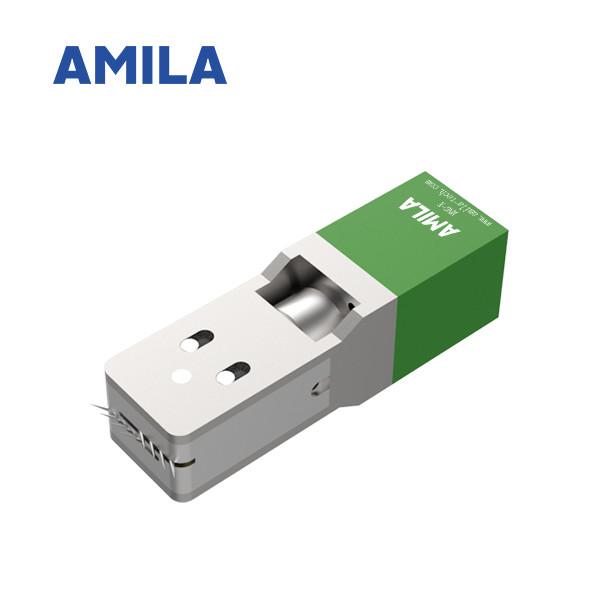

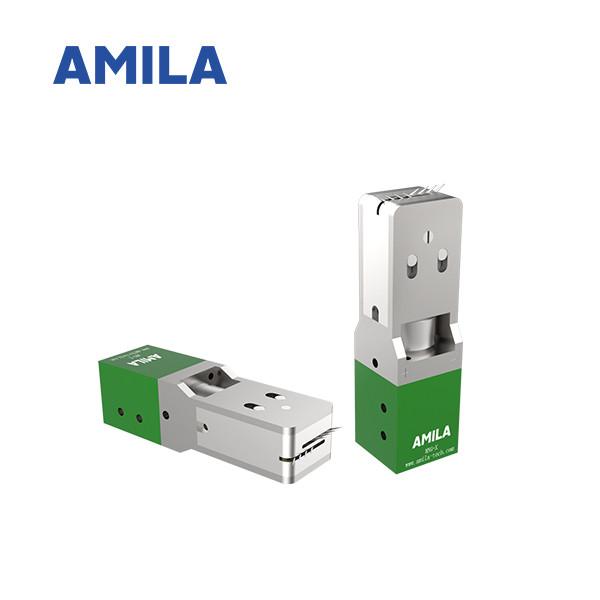

Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell
Specifications
Brand Name :
AMILA
Model Number :
MNG-X
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Depending on the order quantity
Delivery Time :
Negotiatable
Packaging Details :
Carton package/Wooden cases
Needle Diameter :
0.7mm
Quantity of needles :
8
Needle stroke :
3.0-6.0 (variable)
Material :
Aluminum Alloy
Advantage :
Wear Resistance
Feature :
Adjustable Needle
Description

Needle Gripper MNG-X With Aluminum Alloy Shell For Handling Thin Ventilated Workpieces

1. Introduction and application
  • The insertion depth of the small needle is shallow, and the release function of fast air blowing is realized.
  • Handling thin ventilated workpieces.
  • The stroke of the needle can be adjusted.
  • Handle materials that are difficult to be adsorbed by vacuum,such as composite textiles, wool, filters, woven glass fibers or carbon fibers, woven aramid, foam materials, etc.
  • The suction coverage area is increased, handle products adsorption more stable.

2. Design

Thin Ventilated Workpieces 0.7mm Needle Gripper With Aluminum Alloy Shell

Type Size [mm]
A B C h e1 e2 d1 d2
MNG-X 15 60 20 1 14 14 2×M5 2×M4

3. Technical Data

Type NO. of needles Needle diameter operating pressure Operating temperature Weight stroke
[mm] [g] [mm]
MNG-X 8 0.7 3.0...6.0 5...60 85 3
