Specifications
Brand Name :
AMILA
Model Number :
Oval Bellows Suction Cup MAOB
Place of Origin :
CHINA
MOQ :
Negotiatable
Price :
Negotiatable
Payment Terms :
L/C, T/T
Supply Ability :
Negotiatable
Delivery Time :
Depending on the order quantity
Packaging Details :
Carton package/Wooden cases
Suction area L×W :
60×30mm to 110×55mm
Material :
NBR
Highlight :
Vulcanizing fixed the suction cup and the joint
Keyword :
Bellows Vacuum Cups
Other name :
Oval Suction Cups
Model No. :
MAOB
Description

Vaccum Suction Cups Special For Metal Plate Oval Bellows Suction Cup MAOB

1. Introduction and applicaton

  • Rapid handling of long,narrow metal parts, such as metal sheets and reinforcing ribs for interior decoration, etc.
  • Handling of thin sheet metal without deformation or deep drawing.
  • For use in automated handling system for stamping lines in the automotive industry.
  • The bottom of the suction cup has a special groove structure to prevent the oily metal plate from sliding during the handling process, ensuring accurate positioning of the workpiece in the press.

2. Structure

  • Robust,wear-resistant oval bellows suction cup MAOB made of NBR with single sealing lip,special slot and inner support design;
  • Vulcanizing fixed the suction cup and the joint (high strength);
  • Suction cup available with various connection types;

3. Technology data

Type Suction Force Pull-off force Lateral force Lateral force oily surface Volume Workpiece radius min
[N] [N] [N] [N] [cm3] [mm] (Convex)
MAOB 60x30 NBR-60 38 55 57 52 9.6 30
MAOB 80x40 NBR-60 65 100 100 95 20.6 40
MAOB 110x55 NBR-60 110 185 180 161 50.8 50

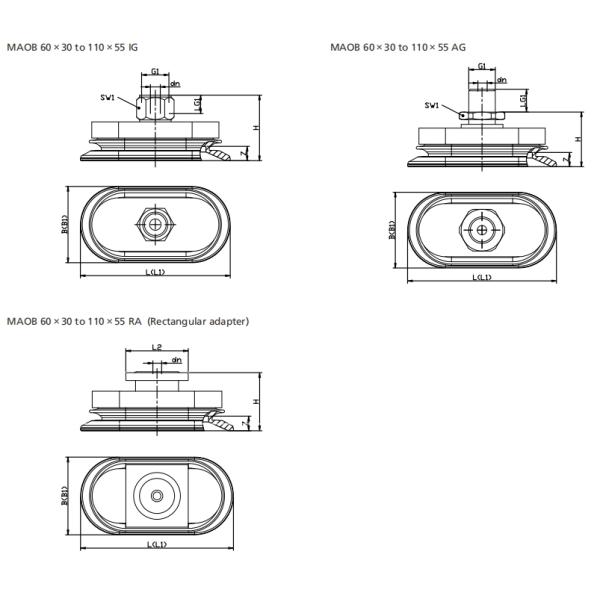

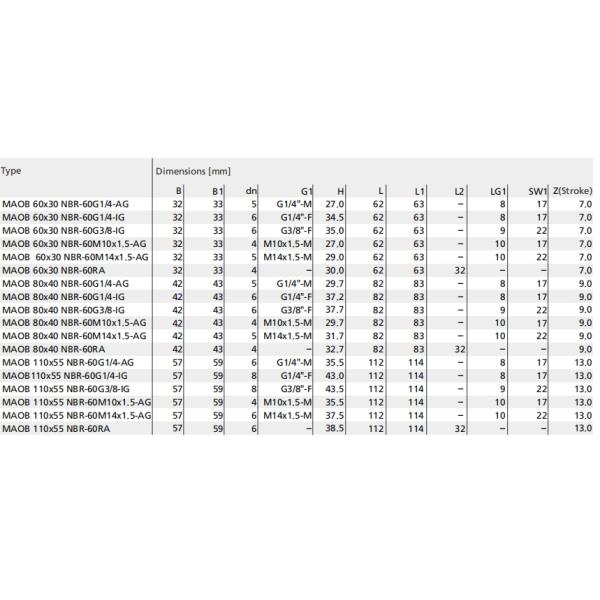

4.Design data

NBR Bellows Vacuum Cups Special For Metal Plate , Oval Suction Cups MAOB

NBR Bellows Vacuum Cups Special For Metal Plate , Oval Suction Cups MAOB

Bellows Suction Cups MAOB (Oval 1.5 Folds).pdf
