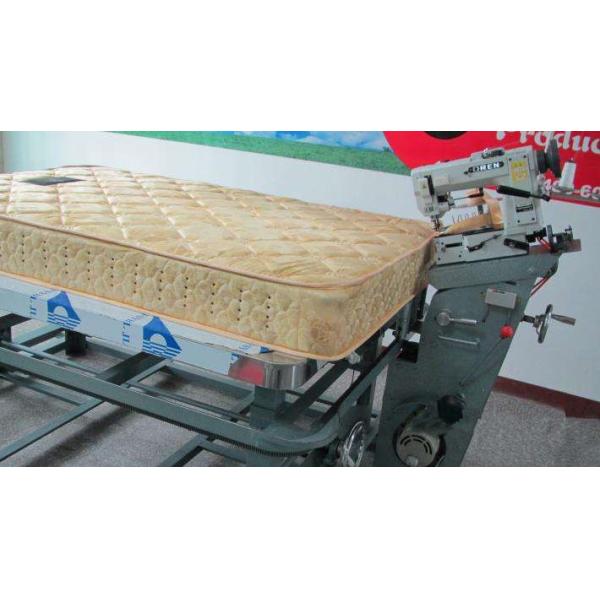

Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress
Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress
Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress
Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress
Specifications
Brand Name :
ZHMACH
Model Number :
ZHQG-3A
Certification :
CE Certification
Place of Origin :
China (mainland)
MOQ :
one set
Price :
USD 3800-4800 per set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
two sets per month
Delivery Time :
25 work days
Packaging Details :
paper film and plastic
Maximum sewing speed :
3000r / min
Lifting range :
0-200mm
Traveling box control :
variable frequency clutch
Type :
tape edge machines
Worktable size :
1550 * 20500mm
Walking box speed :
2000-3000 needles / min
Table lifting range :
0-420mm
Thickness of mattress :
50 ~ 700mm
Nose work angle :
35 ° ~ 85 ° (adjustable)
Total power :
7KW
Description

Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress

The machine is mainly used for mattress to complete the mattress fabric and the edge of the wall between the cloth seam work, but also for other mattresses, blankets, sofa cushion, sleeping bag sewing. The head can be automatically raised and lowered to accommodate sewing various mattresses of various heights. Driving box and the head drive using variable frequency clutch motor, corner automatic deceleration easy to control, the nose with a slider thread, shuttleless hook hook line, constitute a chain stitch. Upper and lower shaft with synchronous toothed belt drive; lever type needle pitch adjustment mechanism. The use of integrated feeding, needle feeding and alternating pressure on the foot feeding, rod-type lifting feet, and high-pressure foot travel, high-pressure foot to enhance the gap and the larger length of the track, with push-pull stainless steel professional edge fixture; can easily handle difficult to send Of the material and multi-layer thick leather. Automatic sensing device, frequency clutch, to prevent the load caused by the machine damage, so that sewing more smooth and convenient operation. Push plate height adjustable, man-machine performance more reasonable.

Maximum sewing speed 3000r / min
Nose work angle 35 ° ~ 85 ° (adjustable)
Table lifting range 0-420mm
Lifting range 0-200mm
Thickness of mattress 50 ~ 700mm
Walking box speed 2000-3000 needles / min
Traveling box control variable frequency clutch
Total power 7KW
Worktable size 1550 * 20500mm

Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress

Tape Edge Sweing Foam Making Machine for Blankets and Sofa Cushion and Mattress
