Duct Aerial 4 6 8 12 24 48 Core Waterproof Fiber Optic Cable
Duct Aerial 4 6 8 12 24 48 Core Waterproof Fiber Optic Cable
Specifications
Brand Name :
Fiberplan
Model Number :
GYFTY
Certification :
ISO 9001; TÜV certificate
Place of Origin :
China
MOQ :
1Km
Price :
Negotiation
Payment Terms :
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 km per month
Delivery Time :
5~8 work days
Packaging Details :
Wooden Drum
Laying Ways :
Pipeline/Overhead/Direct buried/Duct
Sheath :
PE
Cable Diamter :
9-16.5
Lead Time :
5 days
Strength Member :
FRP
FRP :
0.7/0.8/1.0mm/2.2mm
Fiber Count :
2-288 fibers
Manufacturer :
Yes
Rodent Protection :
Yes
Bending Radius :
20 x cable diameter
Cable Color :
Black
Packing :
2km/Wooden Drum or custimized
Water Blocking Tape :
Yes
Description

Duct Aerial 4 6 8 12 24 48 Core Water Proof Fiber Optic Cable

Description

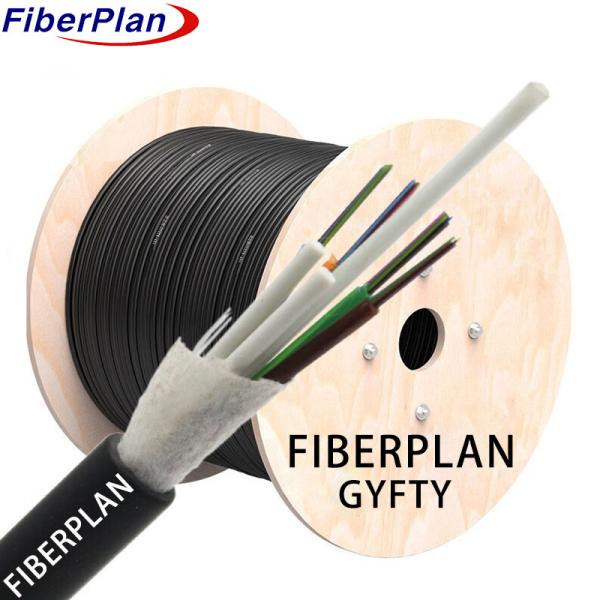

The fibers are housed within a flexible tube made of strong plastic, filled with a water-resistant compound.

In the core sits a non-metallic strength member called Fiber Reinforced Plastic (FRP). Tubes and fillers are

woven around this central core, forming a tight circular structure. To prevent water entry, the cable core is

shielded with water-blocking tape before being encased in a PE sheath for full protection.

Application

1 Designed for outdoor distribution applications.

2 Suitable for use in trunk power transmission systems.

3 Ideal for deployment in access and local networks situated in areas with high levels of electromagnetic interference.

Characteristic

1 Exhibits excellent mechanical strength and performs well across various temperatures.

2 Features a high-strength, hydrolysis-resistant loose tube.

3 Incorporates a specialized tube filling compound that provides crucial protection for the fiber.

4 Demonstrates both crush resistance and flexibility.

5 Utilizes a filling compound specifically designed for the loose tube.

Structure details

No. of fiber 6F 12F 24F 36F 48F 72F 96F 144F
No. of tube 1 2 4 3 4 6 8 12
Fiber per tube 6 6 6 12 12 12 12 12
No. of filler rod 4 3 1 2 1 0 0 0
Tube diameter (±0.1mm) 2.0 2.0 2.0 2.0 2.0 2.0 2.0 2.0
Thickness of loose tube
(±0.05mm)		 0.3 0.3 0.3 0.3 0.3 0.3 0.3 0.3
Nom. out diameter (±0.2mm) 8.6 8.6 8.6 8.6 8.6 9.2 10.8 13.4
Nom. jacket thickness
(±0.1mm)		 1.6 1.6 1.6 1.6 1.6 1.6 1.7 1.7
Loose tube Material PBT Color Standard spectrum
Filler rod Material PP Color Black
Tube filling Material Filling compound
Central strength member Material FRP Diameter 1.5mm (6 - 48F)
2mm (72 - 144F)
Layer PE (for 96C -144C only)
Water blcoking system Material water blocking tape
Rip cord Type 1110*2
Out sheath Material MDPE Color Black

Mechanical and environment performance

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term (N/100mm) 300N/100mm
Short term (N/100mm) 1000N/100mm
Bending radius Dynamic (mm) 20D
Static (mm) 10D
Storage Temperature -20℃～+70℃
Installation Temperature -10℃～+60℃

Fiber Performance

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.22 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±0.2 125±0.2 125±0.2
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±3 242±3 242±3

Duct Aerial 4 6 8 12 24 48 Core Waterproof Fiber Optic CableDuct Aerial 4 6 8 12 24 48 Core Waterproof Fiber Optic Cable

Duct Aerial 4 6 8 12 24 48 Core Waterproof Fiber Optic Cable
