High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 Core
High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 Core
Specifications
Brand Name :
Fiberplan
Model Number :
GYXTW53
Certification :
ISO 9001; TÜV certificate
Place of Origin :
China
MOQ :
1Km
Price :
Negotiation
Payment Terms :
L/C, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5000 km per month
Delivery Time :
5~8 work days
Packaging Details :
Wooden Drum
Fiber type :
G652B, G652D, G657A1, G657A2
Jacket material :
PE,LSZH,PVC,TPU,LSZH or PVC
Installation :
Burial/aerial/duct
Fiber Count :
2-24 fibers
Cable Diameter :
8.0~10.0mm
Operating Temperature :
-40°C ~ +70°C
Length :
3Km or Custom
Structure :
Central loose tube
Central Strength Member :
steel wire
Armored Material :
steel wire
Crush Resistance :
3000N/100mm
Tensile Strength :
1000N
Application :
Outdoor use, suitable for direct burial installation
Direct Burial Rated :
Yes
Description

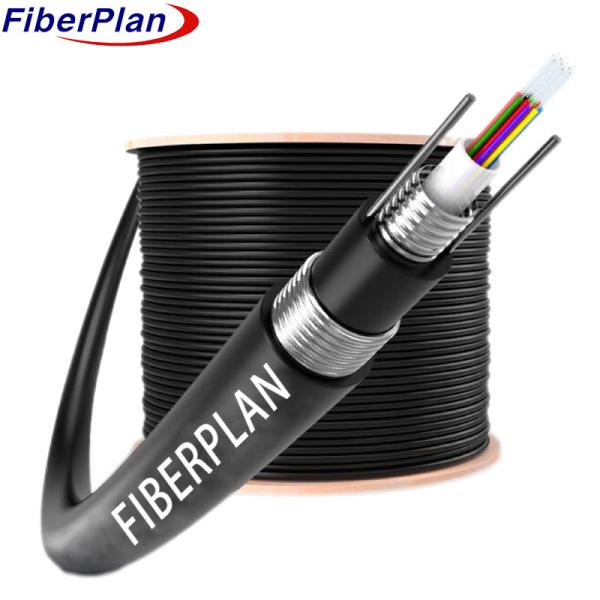

High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 Core

Description

The cable contains fibers housed within a flexible tube made of sturdy plastic, fortified for strength. This tube

is filled with a water-resistant compound to shield the fibers. Surrounding this tube is a corrugated steel tape

layer, safeguarded by a water-blocking material to maintain the cable's tight, compact structure. Two steel

wires run parallel to this tape, and the entire assembly is protected by a polyethylene (PE) sheath, ensuring

overall durability.

Application

1 Tailored for outdoor deployment, resilient to various conditions.

2 Compatible with aerial, duct, and buried installations.

3 Facilitates long-distance and local network communication efficiently.

Characteristic

1 Features steel-wire parallel members and filler for protection alongside tube fibers and steel tape

armoring.

2 Demonstrates outstanding mechanical resilience and environmental durability.

3 Compact and lightweight in structure.

4 Offers convenient installation and straightforward operation.

Cable Construction Details

Fiber count 2C-24C
Strength member Material steel wire Diameter 0.8mm
Loose Tube Material PBT Diameter 2-16core 2.2mm
18-24core 2.8mm
Tube-filling Mateial Filling compound
Water blocking system Mateial water blocking tape
Inner sheath Material MDPE Color Black
Diameter 7.5±0.2mm Thickness 1.3±0.1mm
Outer Sheath Material MDPE Color Black
Diameter 12.2±0.4mm Thickness 1.5±0.2mm

Cable mechanical and environment chararcteristics

Tensile strength Long term(N) 600N
Short term(N) 1500N
Crush load Long term(N) 500N/mm
Short term(N) 1500N/mm
Bending radius Dynamic 20D
Static 10D
Installation Temperature -10℃～+60℃
Storage Temperature -40℃～+70℃

Fiber characteristics

Fiber style Unit SM G652D MM 50/125 MM 62.5/125
Condition mm 1310/1550 850/1300 850/1300
Attenuation dB/km ≤0.36/0.23 ≤3.0/1.0 ≤3.0/1.0
Cladding diameter um 125±0.5 125±0.5 125±0.5
Cladding non-circularity % ≤1.0 ≤1.0 ≤1.0
Coating diameter um 242±5 242±5 242±5

High Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 CoreHigh Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 CoreHigh Strength Double Steel Tape Armored Outdoor GYXTW53 Cable 2-24 Core
