Specifications
Brand Name :
Guangzhou Xingjin Fire Equipment Co.,Ltd.
Model Number :
XJ100H/N
Certification :
TUV,SGS,CE
Place of Origin :
Guangzhou, Guangdong, China
MOQ :
50 set system
Price :
34-36.8USD/set
Payment Terms :
T/T, L/C
Supply Ability :
30000 Set
Delivery Time :
15-20 working days after payment or receipt of L/C
Packaging Details :
Plywood outer box with bubble bag or paper
Working temperature :
-40ºC~80ºC
Mini Order :
50 Set
Starting Mode :
Automatic
Usage :
Industrial
Surface Treatment :
Polishing
Performance :
High Performance
Temperature :
High Temperature
Trademark :
Xingjin / OEM
Description

Automatic Fire Suppression Tube

Description:

The automatic fire extinguishing tube temperature sensing self-starting fire extinguishing device is a simple, portable, safe, convenient and highly reliable automatic fire detection and fire extinguishing system. And the fire agent is mainly FM200. This type of fire extinguishing device uses a flexible and bendable chisel tube as a fire detection and alarm component, and at the same time, this fire detection tube also serves as a storage, delivery and spraying pipeline for fire extinguishing agents.

Compositions:

Pressure tube, fire extinguishing agent--HFC-227ea or Novec1230, pressure gauge, pipe fittings.

Feature of Tube Fire Extinguishing
1. Easy to install
2. Fast fire extinguishing, and very cost effective protection
3.Ideal for cars, 4WDs, boats, outboard motors,tractors
4.FM200 gas non-toxic and environmentally friendly
5.Wide application: suitable for any fires, it can also be used to put out any electrical fire
6.Portable and lightweight.

Application:

Based on the volume of protected enclosure, the tubes are suitable for the ranges but even more than those:

1.Engine compartments of boats;

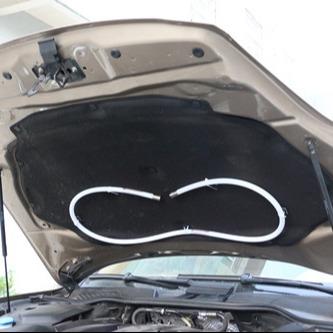

2.Engine compartments of on-road vehicles: car, SUV, van, recreational vehicle, mini bus, etc.

3.Engine compartments of off-road vehicles: ATV, small tractor, forklift truck, small construction machine, golf cart, grass cutting machine, etc.

4.Electrical switchboard, fuse box, rack, electrical cabinet, etc.

Parameter:

Model Type of agent Amount of agent(g) Length of tube(cm) Diameter of tube(mm)

Approximate maximum coverage

(cubic meter)

 Working temperature(℃) Blasting temperature(℃)
XJ100H/N 250±5 100 18 0.25 From -40 to 80 110±10

XJ200H/N

 Hfc-227ea/
Novec 1230		 500±5 200 18 0.5 From -40 to 80 110±10
XJ300H/N 750±10 300 18 0.75 From -40 to 80 110±10
XJ400H/N 1000±10 400 18 1 From -40 to 80 110±10
XJ500H/N 1250±10 500 18 1.25 From -40 to 80 110±10

Self-Activating Fire Extinguishing Tube for Electrical Cabinets, Vehicles, and Boats

F&Q

Q: What payment methods do you support?

A:We support: TT, Ali credit insurance orders, please contact us for other payment methods.

Q: What is your delivery time?
A:About ten working days, please contact us for customized products.
Q: What is your product warranty period?
A:Two years.
Q: What is the lifespan of a fire extinguisher pipe? Does it require maintenance?
A:Typically 5-10 years, depending on environmental conditions.Annual inspections are recommended to ensure the pipes are in good condition.
Q: Do you have a minimum order quantity requirement?
A:1) Fire extinguishing system: 1 set. 2) Small products: 20 pieces.
Q:What transportation methods do you support?
A: Sea, air, self-pickup, please contact us for special transportation needs.
Q: How do I choose the right model?
A: Choose based on the volume of the protected space:
Electrical cabinet/battery box → XJ100H/N (0.25m³)
Automotive engine compartment → XJ200H/N (0.5m³)
Small machine room → XJ500H/N (1.25m³)
If you have any questions, please contact us!
