Specifications
Brand Name :
Guangzhou Xingjin Fire Equipment Co.,Ltd.
Model Number :
CM1004
Certification :
CCC,CAC,ROHS
Place of Origin :
Guangzhou, Guangdong, China
MOQ :
20 set system
Price :
negotiation
Payment Terms :
T/T, L/C
Supply Ability :
30000 set /month
Delivery Time :
15-20 working days after payment or receipt of L/C
Packaging Details :
Plywood outer box with bubble bag or paper
Color :
Grey/Red
Mains supply :
90 to 270VAC, 50Hz/60Hz
Battery charge current :
0.7A maximum
Composition :
Converntional Control Panel/Light/Button/Alarm/Bell/Detector
Weight :
12.38kg
IP Rating :
ip68
Light intensity :
135cd
Description

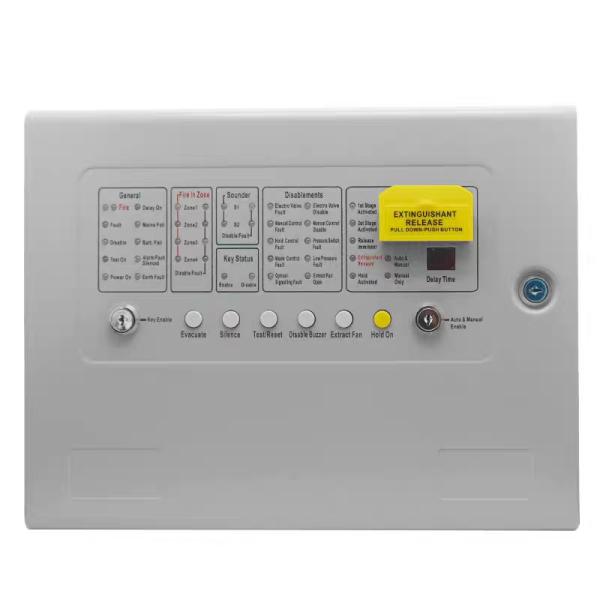

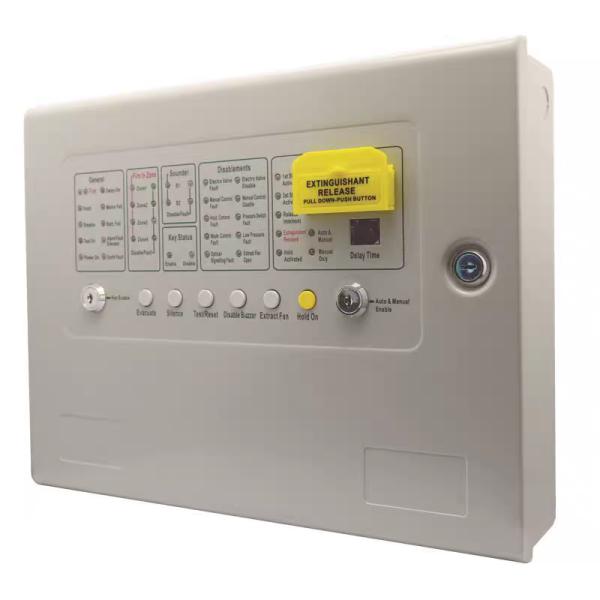

Gas fire extinguishing controller​


Product introduction:
This gas fire suppression controller is a complete automatic fire alarm and suppression control system, consisting of multi-line heat fire detectors, multi-line manual alarm buttons, on-site emergency start/stop buttons, aerosol fire suppression control devices (or cylinder control devices), weighing devices, gas release indicator lights, and other equipment, formulated with reference to European standard EN54 and Chinese standard GB16806-2006

Project Electrical parameters
Working power supply AC90V/A 220V 50HZ/60HZ
Maximum ripple voltage ≤60mA/220VAC
Static current ≤200mA/220VAC
Alarm current 24VDC/3A
Relay output contact capacity 24VDC/2A,220V/1A
Output power of each sound and light channel 24VDC/1A(Max)
Static current in alarm zones (ZONE1-4) 4mA maximum
Recommended wires 0.75mm²to2.5mm² Twisted pair cable
Number of detectors in each alarm zone (ZONE1-4) ≤25set
Detector, monitoring input terminal resistance 4K7±5% 1W
Audible and visual alarm output terminal resistor 10K±5% 1W
Alarm impedance of controller alarm zones (ZONE1-4) 1K--390
Valve output recommended for series diode 1N5406
For alarm and indicator light circuits, it is recommended to use series diodes 1N4007

Fire Alarm Fire Extinguisher Control Panel in Lowest Price for Fire Emergency System

Why Choose Us

  1. 2 years quality guarantee
  2. Xingjin is running in a high efficiency management system
  3. Advanced equipments & professional engineers to promise all products are quite satisfactory.
  4. We provide 8×6 hrs technical support and service.

After-Sale Service

  • We have an efficient sales and after sales team to promise slove all client's question in time.
  • We provide 8×6 hrs technical support and service.

FAQ:
Q: Are you a trading company or a manufacturing factory?
A: We are both a manufacturer and a trading company. We have our own factory for nearly 15 years, and we provide better services to overseas customers.
Welcome to inquire!

Q: How about the delivery time?
A: According to the minimum order quantity, delivery will be made in 10-15 working days after receiving the deposit. Normally, an order of a 20-foot container takes 30-35 days to complete.
Welcome to inquire about the specific delivery time according to your order quantity!

Q: How do you ensure product quality?
A: We have TUV/SGS/ISO quality control system and strictly implement it. We have a professional quality inspection team, and each packing worker will conduct a final inspection before packaging according to the quality inspection instructions.

Q: What is the payment method?
A: The payment methods basically include T/T, L/C at sight, Western Union, etc.

Q: Can you do OEM production for me?
A: We accept all OEM orders, just contact us and provide your design plan, we will provide you with a reasonable price as soon as possible.
