Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms
Specifications
Brand Name :
XINGJIN
Model Number :
GQQ40 GQQ70 GQQ90 GQQ100 GQQ120 GQQ150 GQQ180
Certification :
GSG\TUV\ I S O 9 0 0 1, 1 4 0 0 1, 4 5 0 0 1
Place of Origin :
Guangzhou,China
MOQ :
5 set
Price :
USD420-598/set
Payment Terms :
T/T,L/C
Supply Ability :
3000set/month
Delivery Time :
15-20days
Packaging Details :
Wooden Box Or Plywood Outer Box With Bubble Bag Or Paper
Filling pressure :
2.5Mpa
Relief pressure :
5.0±0.225Mpa
Spraying time :
≤10s
Working temperature :
0～50℃
Power :
DC24V/1.6A
max working pressure :
4.2Mpa
Description

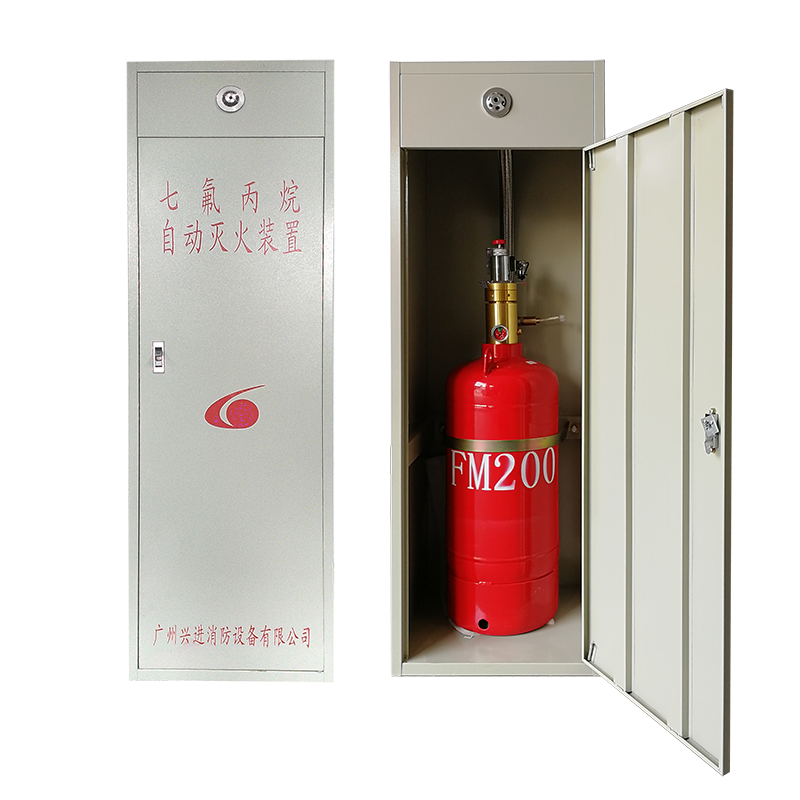

FM200 Cabinet Fire Suppression System (HFC-227ea Clean Agent)

FM200 Cabinet Fire Suppression System is a highly efficient clean agent fire protection solution using HFC-227ea (FM200). Designed as a standalone, pre-engineered system, it integrates the agent storage, control, and discharge components into a compact cabinet, making it ideal for protecting critical environments such as data centers, server rooms, and electrical facilities.

Product Overview

The FM200 cabinet system requires no complex piping network and can operate independently with fire detection and suppression functions. Activated by a DC24V solenoid valve, the system discharges within 10 seconds, ensuring rapid total flooding fire suppression at the early stage of a fire.

With a storage pressure of 2.5 MPa and filling capacities from 40 kg to 180 kg, the system supports single or dual cabinet configurations, offering flexible solutions for various protected areas.
Integrated Cabinet Fire Suppression System / FM200 Based Protection for Server Rooms

Ideal Applications

This FM200 cabinet system is designed for high-value asset protection and business continuity, widely used in:

  • Data centers & cloud facilities
  • Server rooms & telecom rooms
  • Electrical rooms & transformer rooms
  • UPS battery rooms & control rooms
  • Libraries, archives & museums
  • Financial IT infrastructure rooms
  • Small oil storage & equipment rooms

Best suited for:
